Iwis #80 SA-1 Attachment Roller Chain Connecting (Master) Link
Iwis #80 SA-1 Attachment Roller Chain Connecting (Master) Link
Note:
Custom Cut to Length Chain Also Available
Product Code: I-80-SA-1-CONNECTING-LINK
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

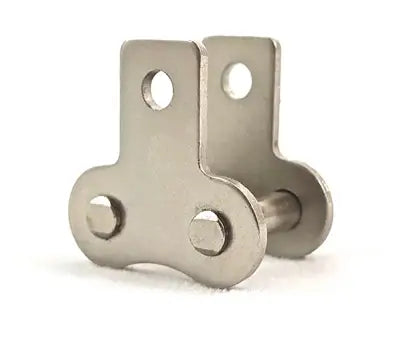

IWIS #80 SA-1 Attachment Connecting Link is apart of the Premium JWIS line up of IWIS brand chains. SA-1 Attachment connecting links are standardly supplied as spring-clip style and are a straight, one side, one hole attachment. The components that go into this attachment link are manufactured with only high-quality heat-treated and case-hardened steel with extreme precision and accuracy to ensure the best in class working life, fatigue, and overall durability. This #80 SA-1 Attachment Connecting Link combines superb quality and the best in class German engineering with high strength components to create an attachment that will last long, preform greatly, and have extremely high strength. We supply IWIS #80 SA-1 Attachment Connecting Links at really great prices and they are normally in-stock. Additionally if you're needing #80 roller chain with SA-1 attachments already assembled onto the chain we can do that in any configuration needed, and within an industry leading assembly time. This attachment fully meets all ANSI standards so it will assemble easily onto #80 roller chain and mesh correctly with ANSI #80 sprockets. We also offer a full line of high quality ANSI #80 sprockets and standard IWIS Brand #80 Roller Chains at really great prices. For more information or to get a quote on IWIS #80 SA-1 Attachment Connecting Links please contact us and we will be happy to assist you!
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer " Here "!
Attachment #: #80 SA-1 Pitch (P): 1" Width (E): 5/8" Roller Diameter (D1): 0.63" Pin Diameter (D2): 0.31" Dimension (T): 0.13" Dimension (F1): 0.82" Dimension (F2): 0.95" Dimension (A1): 1.34" Dimension (A2): 0.97" Dimension (F3): 0.36" Dimension (D3): 0.26" Dimension (G): 0.63"
Email:
Feature
Premium SA-1 Attachment Connecting Link Apart Of The JWIS Line From IWIS Straight, One Side, One Hole Each Tab Fully Meets All ANSI Standards Heat-Treated & Case Hardened Can Be Assembled In Any Configuration Needed
Attachment #: #80 SA-1 Pitch (P): 1" Width (E): 5/8" Roller Diameter (D1): 0.63" Pin Diameter (D2): 0.31" Dimension (T): 0.13" Dimension (F1): 0.82" Dimension (F2): 0.95" Dimension (A1): 1.34" Dimension (A2): 0.97" Dimension (F3): 0.36" Dimension (D3): 0.26" Dimension (G): 0.63"
