Premium #80 Straight Sidebar Roller Chain - 10ft Box

Premium #80 Straight Sidebar Roller Chain

Our Price: $239.99


Availability: Ships Within 24 Hours
Product Code: PREMIUM-C80-10FT
Qty:

Description Technical Specs

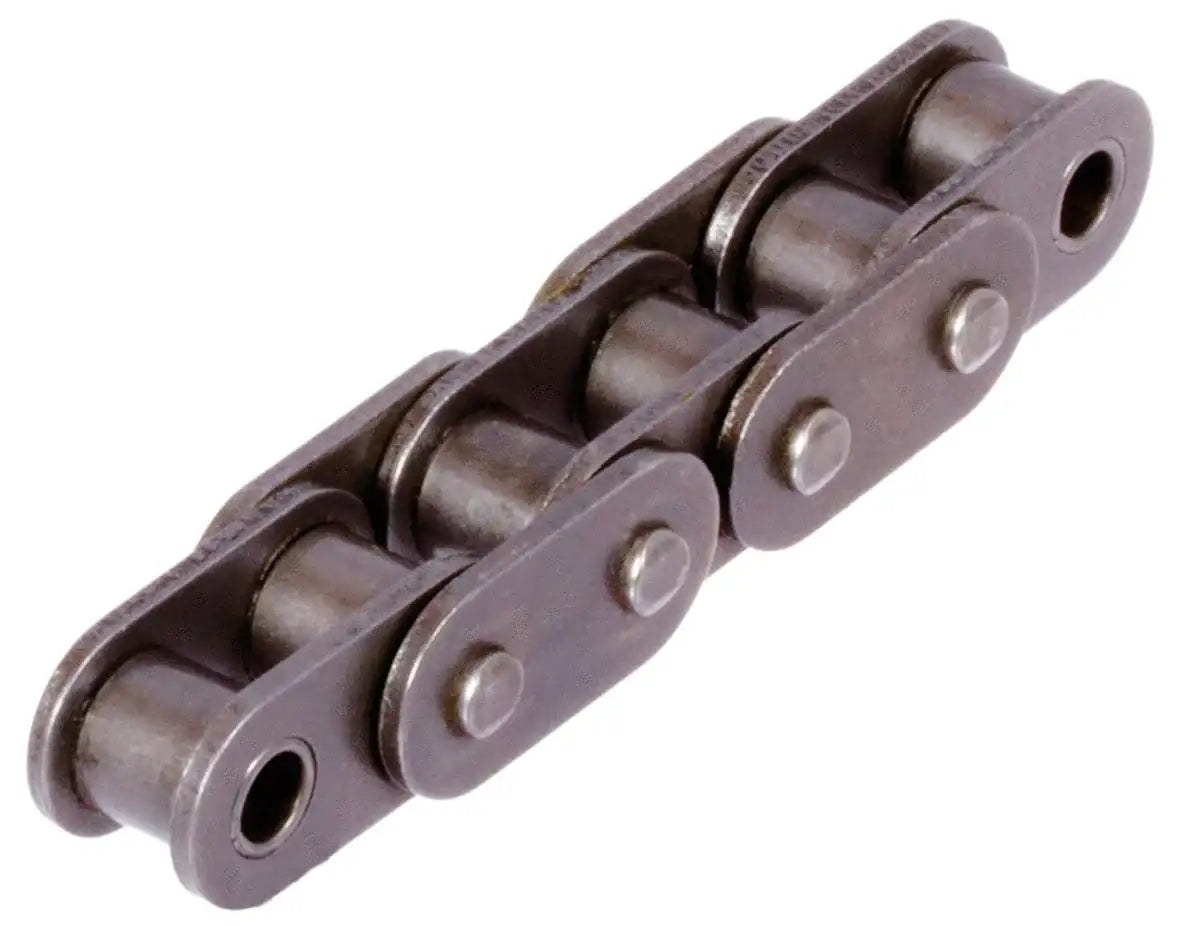

Premium C80 Straight Sidebar Roller Chain

This Premium #80 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. What separates this chain from the others is that this chain has solid roller and solid bushing which greatly increases performance and strength. This chain has also been shot peened and manufactured using high quality carbon steel making this chain a premium quality roller chain. This chain offers maximum strength, wear life, and performance. This chain can run on ANSI #80 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.

Dimensions:

  • Chain Size: #80 Straight Sidebar Roller Chain
  • Tensile Strength: 17,600lbs
  • **Note: All Dimensions Are in Inches**
  • Pitch (P): 1.000
  • Roller Width (W): 0.625
  • Roller Diameter (R): 0.625
  • Plate Height (H): 0.915
  • Plate Thickness (T): 0.125
  • Pin Diameter (D): 0.312
  • Overall Width (F): 1.272
  • Weight Per Foot: 1.79 lbs/FT

Phone: (407) 347-3519
Email:
sales@usarollerchain.com
Features
    • Size: #80 Premium Straight Sidebar Roller Chain
    • Ultimate Strength: 17,600lbs
    • Heat Treated For Increased Fatigue
    • Solid Bushings & Rollers For Smooth Operation and Increased Strength and Working Life
    • Has Maximum Strength & Longest Working Life
    • Straight Sidebars Increase Strength, Working Life, and Fatigue
    • Runs On Standard Sprockets
    • High Strength & Premium Quality
