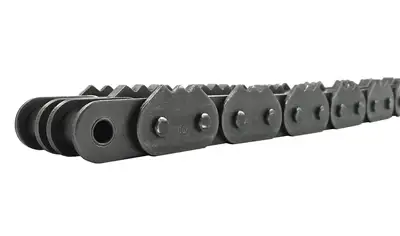

Chain Dimensions:

- Chain Size: 80H-2
- Style: 3-Points Every 2nd Pitch
- Pitch (P): 1.000"
- Dimension (B): 1.152"
- Dimension (C): 0.685"
- Dimension (D): 0.934"
- Dimension (E): 0.625"
- Dimension (F): 2.431"
- Dimension (G): 0.156"
- Dimension (H): 0.126"
- Dimension (J): 1.153"
- Dimension (L): 0.312"
Additional Options:
- Chrome Pins (standard in some sizes)
- Machined Smooth Bottoms to reduce damage to the chain beds
- Anti-Corrosive Coatings
- Induction Hardened Teeth
Feature
- High-precision teeth for optimal grip and least amount of penetration
- Heat treated shot peened pins, bushings, rollers, and side plates for optimal fatigue strength and working life
- Low draft tooth profile that distributes weight and reduces losses from bruising
- Triple alloy steel rivet pins and optimal riveting for extended life
- Ballized bushed plates for uniform hole size
- Pre-lubed with a premium lubricant designed for sharp top chain
