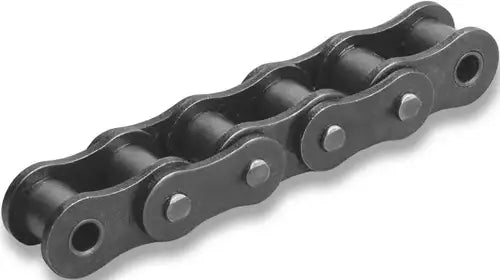

Premium 80HE Roller Chain - 10ft Box

80HE Roller Chain
80HE Roller Chain



Our Price: $249.99

Availability: In Stock
Product Code: 80HE-ROLLER-CHAIN
Qty:

Description Technical Specs

#80HE roller chain is apart of the Super High Strength HE series premium heavy roller chains. Each component that goes into HE series roller chains has been made with quality material and precision machining to produce a chain that has superior performance and working life. This roller chain features solid bushings and solid rollers for increased performance, working life, and strength and decreased internal friction and energy consumption. Additionally it has fully heat-treated pins for a much better shock load rating and durability. #80HE roller chain has thicker side-plates as well and fully meets all ANSI Standards so it will run on standard #80 roller chain sprockets. If you're needing a large quantity of #80HE roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:

  • Chain #: 80HE
  • Pitch (P): 1.000"
  • Roller Diameter (D): 0.625"
  • Width Between Plates (W): 0.625"
  • Link Plate Height (H): 0.921"
  • Side Plate Thickness (T): 0.157"
  • Pin Diameter (E): 0.313"
  • Pin Length (L): 1.421"
  • Average Tensile Strength: 21,000 LBS
  • Maximum Recommended Working Load: 4,135 LBS
  • Weight Per Foot: 1.88 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

See What All We Offer "
Here"!

About Us
Features
    • Super High Strength
    • Premium Quality Roller Chain
    • Meets & Exceeds ANSI Standards
    • Has Solid Bushings & Solid Rollers
    • Manufactured Using Precession Components
    • Wide Side-plates
    • Fully Heat-Treated Pins
    • Stainless Shot-Peened Components
    • Has Thicker Side-Plates

Accessories
Premium 80HE Connecting Link Premium 80HE Offset Link
Our Price: $5.99
Our Price: $12.99
80HE Connecting Link 80HE Offset Link
