81X RT Roller Chain

81X RT Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 81X-RT-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
View full details

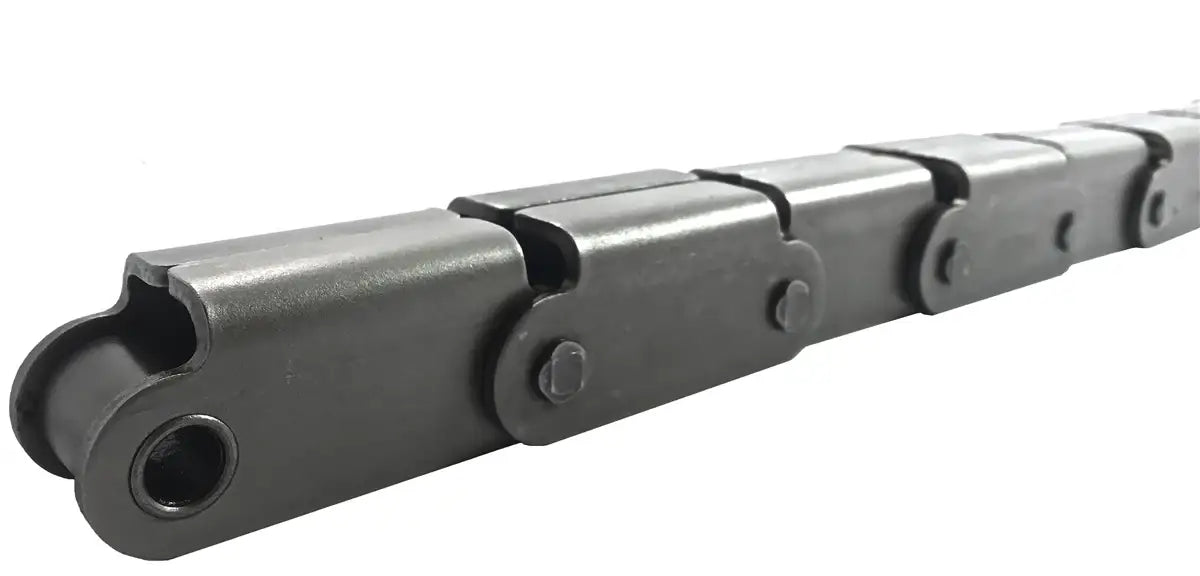

81X RT Roller Chain is a roof-top style conveying chain designed to convey heavy loads from one point to another. Some people also know 81XRT chain as 81X F1 conveyor chain due to other brands nomenclature, our 81X RT chain will directly interchange with other chains. Something notable about our chain is that uses high-quality heat-treated shot peened steel components as well as a solid bushing solid roller (SBR) design for a superior performance and long-term durability.

81X RT Chain Dimensions

81X RT Roller Chain
  • Chain Size: 81X RT
  • Pitch (P): 2.609"
  • Roller Width (W): 1.063"
  • Roller Diameter (R): 0.905"
  • Pin Diameter (D): 0.437"
  • Pin Length (L1): 0.945"
  • Pin Length (L2): 1.118"
  • Plate Height (H): 1.125"
  • Plate Thickness (T): 0.154"
  • Roof Width (M): 2.500"
  • Roof Height (RH): 1.000"
  • Tensile Strength: 30,000 LBS
  • Weight Per Foot: 3.68 LBS

Besides the chain, we also supply a full range of 81X sprockets. For more information or to get a quote please contact us and we will be happy to assist you.



Feature

  • Premium Quality Chain
  • Heavy Duty construction
  • Solid Bushings
  • Solid Rollers
  • Extremely Durable and High-Strength
  • Uses Heat-Treated Components
Featured image
  • Chain Size: 81X RT
  • Pitch (P): 2.609"
  • Roller Width (W): 1.063"
  • Roller Diameter (R): 0.905"
  • Pin Diameter (D): 0.437"
  • Pin Length (L1): 0.945"
  • Pin Length (L2): 1.118"
  • Plate Height (H): 1.125"
  • Plate Thickness (T): 0.154"
  • Roof Width (M): 2.500"
  • Roof Height (RH): 1.000"
  • Tensile Strength: 30,000 LBS
  • Weight Per Foot: 3.68 LBS
