81X Chain With UHMW Tops - Narrow

81X Chain With UHMW Tops - Narrow

Note: Custom Cut to Length Chain Also Available
Product Code: 81X-UHMW-TOP-CHAIN-N
Shipping calculated at checkout.
View full details
81X Chain With UHMW Tops is manufactured for applications that require a conveyor chain with non-marking properties such as UHMW. Additionally, it can be used in applications that need a lighter weight chain than a standard rooftop series. There are two common styles of UHMW top 81X chain, this one specifically is the narrow style and has a top width of 2-1/8", the standard version has a top width of 2-5/8" (which we also supply). The base 81X chain that we use is manufactured with high-strength heat treated components and features a solid bushing solid roller (SBR) design for the best possible performance and wear life.

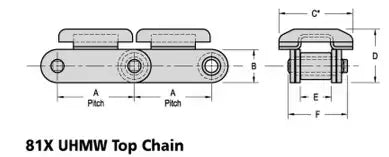

Narrow 81X UHMW Top Chain Dimensions


  • Chain Size: 81X UHMW- Narrow
  • Pitch (P): 2.609"
  • Sidebar Height (H): 1-1/8"
  • UHMW Top Width (W): 2-1/8"
  • Overall Height (M): 1-7/8"
  • Maximum Sprocket Thickness (T): 7/8"
  • The overall width of Chain (V): 2-1/8"
  • Weight Per Foot: 3.5 LBS

We also supply a full line of 81X sprockets. For additional information or to get a quote please contact us and we will be happy to assist you.


Feature

  • Premium Quality Chain
  • Heavy Duty construction
  • Solid Bushings
  • Solid Rollers
  • Extremely Durable and High-Strength
  • Uses Heat-Treated Components
Featured image
  • Chain Size: 81X UHMW- Narrow
  • Pitch (P): 2.609"
  • Sidebar Height (H): 1-1/8"
  • UHMW Top Width (W): 2-1/8"
  • Overall Height (M): 1-7/8"
  • Maximum Sprocket Thickness (T): 7/8"
  • The overall width of Chain (V): 2-1/8"
  • Weight Per Foot: 3.5 LBS
