BL1488 Leaf Chain

BL1488 Leaf Chain

Note: Custom Cut to Length Chain Also Available
Product Code: BL1488-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
BL1488 Leaf Chain Connecting Link (Master Link)
BL1488 Leaf Chain Connecting Link (Master Link)
Login
View full details
Description
Specification

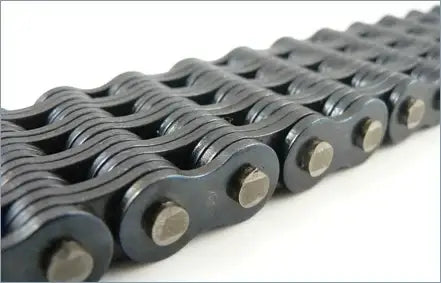

BL1488 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL1488 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 8X8 lacing and is supplied as 10ft boxes, reels (25ft - 50ft), and cut to length sections upon request.

Standard Series Specifications:
  • Chain Size: BL1488
  • Pitch (P): 1.750"
  • Pin Diameter (A): 0.562"
  • Plate thickness (B): 0.250"
  • Plate Height (C): 1.661"
  • Pin Length (D): 4.410"
  • Chain Weight: 17.81 LBS/ Ft
  • Tensile Strength: 195,000 LBS

Although the BL1488 leaf chain is less frequently encountered than other BL series chains, it remains a viable solution for demanding hoisting, lifting, and material handling applications. This chain can be used with port container and cargo handling equipment like fork trucks, chassis rotators, top loaders, straddle carriers, side picks, top picks, and log stackers.


USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL1488 Leaf Chain please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!



Feature

  • Fully Meets ANSI Standards
  • Extremely Heavy-Duty
  • Heat-Treated Components
  • High Strength
  • 8X8 Lacing
Featured image
  • Chain Size: BL1488
  • Pitch (P): 1.750"
  • Pin Diameter (A): 0.562"
  • Plate thickness (B): 0.250"
  • Plate Height (C): 1.661"
  • Pin Length (D): 4.410"
  • Chain Weight: 17.81 LBS/ Ft
  • Tensile Strength: 195,000 LBS
