Economy Plus C2080H Corrosion Resistant Coated Roller Chain - 10ft Box
Economy Plus C2080H Corrosion Resistant Coated Roller Chain



Alternative Views:
Our Price: $139.99

Product Code: ECO-C2080H-COATED-10FT
Qty:

Description Technical Specs

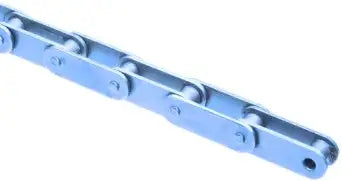

This C2080H corrosion resistant roller chain is a double pitch series roller chain. It is commonly found in many conveying applications, car wash applications, irrigation applications, produce wash-down, and many more. This coated roller chain is more resistant to corrosion than nickel plated roller chain and is often times more cost effective. The baked on coating is applied in a way to reduce premature corrosion and failure. This chain is heat treated to ensure durability, fatigue, and strength. This chain is commonly supplied in 10ft boxes including one connecting link per box. If alternative lengths are needed or additional modifications please contact us.

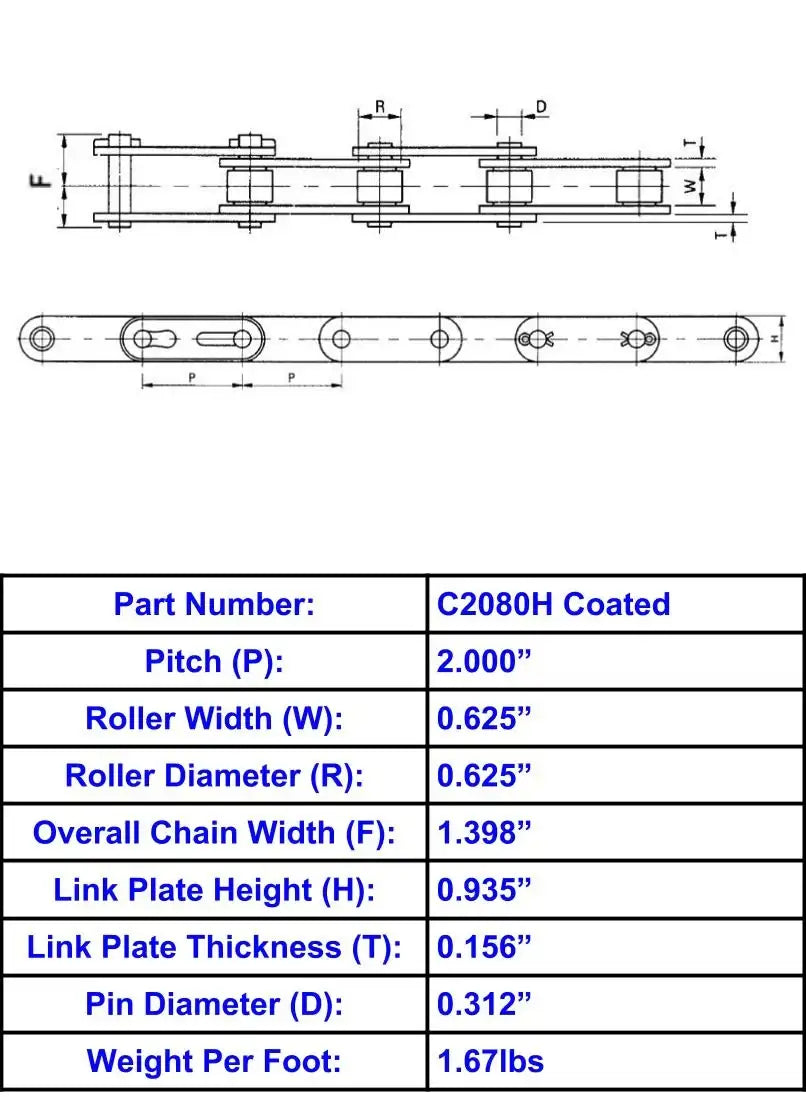

Dimensions:
  • Chain Size: C2080H Coated
  • Pitch (P): 2.000"
  • Roller Width (W): 0.625"
  • Roller Diameter (R): 0.625"
  • Overall Chain Width (F): 1.398"
  • Link Plate Height (H): 0.935"
  • Link Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.312"
  • Specifications Met: ANSI Standards



  • Email: sales@usarollerchain.com
  • Phone: (407) 347-3519

About Us
Features
    • Size: C2080H Coated Roller Chain
    • Highly Resistant To Corrosion
    • Heat Treated For Higher Strength & Durability
    • Fully Meets All ANSI Standards
    • Double Pitch
    • Supplied in a 10ft Box Including One Connecting Link
