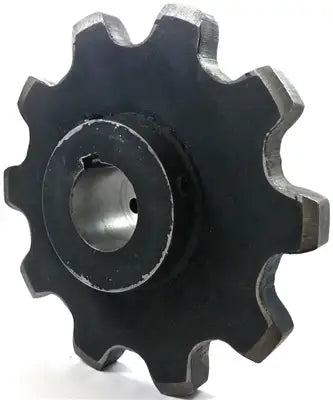

Cast 196C5 Sprocket

Cast 196C5 Sprocket
Cast 196C5 Sprocket



Note: Available as Both Cast or Steel Material
Note: Custom Bore Sizes Available


Product Code: CAST-196C5-SPROCKET
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This 196C5 sprocket is a 5 tooth cast construction sprocket with a C-Hub (hub on both sides). This sprocket is in the 196 series of engineer class sprockets. It can be supplied with a stock plain bore, finished bore with key-way and set screws, or as an idler sprocket configuration. This sprocket works with chain sizes SR196, 1114, 1116, 604R, 627R, 634R, 6018, SRC196, SRD1960, US196R, US196RA42, SR911, SRC196, MSR1116, MSR6018, GL196, SS1114, 604R, 196, and 2126.

196C5 Dimensions


  • Tooth Count: 5
  • Style: C
  • Pitch Diameter: 10.21"
  • Hub Diameter: 6.00"
  • Length Thru Bore: 4.00"
  • Max Bore: 4.00"
  • Tooth Face at Pitch Line: 1.000"
  • Roller Diameter: 2.000"
  • Weight: 28.0 LBS


USA Roller Chain and Sprockets always strives to provide the industry leading service we are known for, as well as competitive and fair prices. Besides sprockets we also offer a full line of roller and engineer class chains, motors with gear reducers, v-belts, pulleys, and a wide variety of other industrial power transmission products. For more information or to get a quote on 196C5 sprockets or any other products, please contact our customer support team and we will be happy to assist you.
About Us
Features
    • Premium Quality Sprocket
    • Extremely Durable
    • Available In Cast or Steel Material
    • Custom Bore Sizes Available
