D50Q26 Sprocket (Taper Bushed)

D50Q26 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$104.99
$104.99
In Stock
On Sale Sold out
Product Code: D50Q26-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
#50-2 Roller Chain - 10ft Box
#50-2 Roller Chain - 10ft Box
Login
General Duty Plus #50-2 Double Strand Roller Chain - 10ft Box
General Duty Plus #50-2 Double Strand Roller Chain - 10ft Box
$179.99
Login
Premium #50-2 Roller Chain - 10ft Box | Premier Series Chain
Premium #50-2 Roller Chain - 10ft Box | Premier Series Chain
$249.99
Login
View full details
Description
Specification

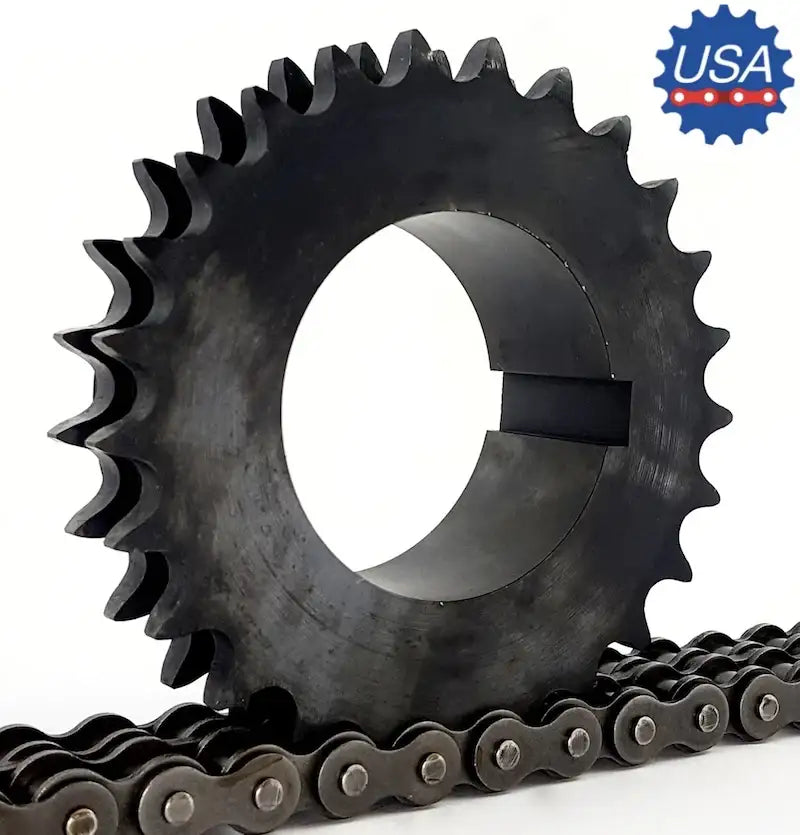

This D50Q26 sprocket is a durable, high quality, and precision double sprocket with hardened teeth that is manufactured to accept a Q1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D50Q26 sprockets are made to accept a Q1 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: D50Q26
  • Bushing Type: Q1
  • Tooth Count: 26
  • Outside Diameter: 5.520"
  • Pitch Diameter: 5.185"
  • Sprocket Type: 12
  • Dimension (OL): 2-25/32"
  • Dimension (L): 2-1/2"
  • Dimension (H): 4-1/8"
  • Dimension (P): 1-15/32"
  • Dimension (T): 0.332"
  • Sprocket Weight: 5.3 LBS
  • Weight With Bushing: 8.8 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Manufactured Using High-Quality Steel
  • Fully Meets ANSI Standards
  • Black Oxide Coated
  • Interchangeable With Other Manufactures
  • Extremely Durable and High-Performance
Featured image
  • Sprocket Size: D50Q26
  • Bushing Type: Q1
  • Tooth Count: 26
  • Outside Diameter: 5.520"
  • Pitch Diameter: 5.185"
  • Sprocket Type: 12
  • Dimension (OL): 2-25/32"
  • Dimension (L): 2-1/2"
  • Dimension (H): 4-1/8"
  • Dimension (P): 1-15/32"
  • Dimension (T): 0.332"
  • Sprocket Weight: 5.3 LBS
  • Weight With Bushing: 8.8 LBS
