• DS40A19 Sprocket double single DS40A19H Sprocket
1 1

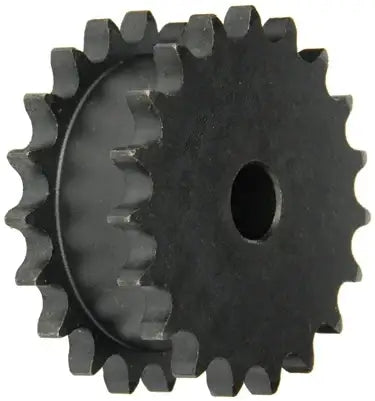

DS40A19 Sprocket (Double Single)

DS40A19 Sprocket (Double Single)

Note: Custom Cut to Length Chain Also Available
Product Code: DS40A19-SPROCKET
Shipping calculated at checkout.
Other Customers Viewed
#40 Roller Chain - 10ft Box | ANSI 40 Chain
#40 Roller Chain - 10ft Box | ANSI 40 Chain
Login
General Duty Plus #40 Roller Chain - 10ft Box
General Duty Plus #40 Roller Chain - 10ft Box
$64.99
Login
Premium #40 Roller Chain - 10ft Box | Premier Series Chain
Premium #40 Roller Chain - 10ft Box | Premier Series Chain
$79.99
Login
View full details
Description
Specification
This DS40A19 sprocket is a durable, high quality, and precision double single sprocket with 19 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket thus preventing premature wear or breakage. This double single sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS40A19 sprockets with a stock bore are supplied with a standard 5/8" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: DS40A19
  • Tooth Count: 19
  • Outside Diameter: 3.300"
  • Pitch Diameter: 3.038"
  • Sprocket Type: A
  • Stock Bore Size: 5/8"
  • Maximum Bore: 1-11/16"
  • Dimension (L): 1-13/32"
  • Dimension (C): 1-1/8"
  • Dimension (E): 2-1/2"
  • Dimension (W): 0.284"
  • Sprocket Weight: 2.2 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Fully Meets ANSI Standards
  • Fully Black Oxide Coated
  • Extremely Durable
  • Ultra High Performance
Featured image
  • Sprocket Size: DS40A19
  • Tooth Count: 19
  • Outside Diameter: 3.300"
  • Pitch Diameter: 3.038"
  • Sprocket Type: A
  • Stock Bore Size: 5/8"
  • Maximum Bore: 1-11/16"
  • Dimension (L): 1-13/32"
  • Dimension (C): 1-1/8"
  • Dimension (E): 2-1/2"
  • Dimension (W): 0.284"
  • Sprocket Weight: 2.2 LBS
