DS50A23H Sprocket (Double Single)
DS50A23H Sprocket (Double Single)
Note:
Custom Cut to Length Chain Also Available
Regular price
$84.99
$84.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: DS50A23H-SPROCKET
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

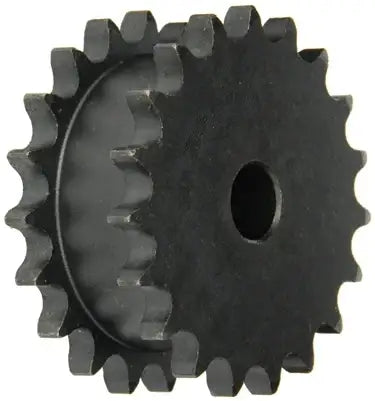

This DS50A23H sprocket is a durable, high quality, and precision double single sprocket with 23 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This double single sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS50A23H sprockets with a stock bore are supplied with a standard 5/8" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Dimensions:
- Sprocket Size: DS50A23H
- Tooth Count: 23
- Outside Diameter: 4.920"
- Pitch Diameter: 4.590"
- Sprocket Type: A
- Minimum Bore Size: 5/8"
- Maximum Bore Size: 2-5/8"
- Dimension (L): 1-21/32"
- Dimension (C): 1-5/16"
- Dimension (E): "
- Dimension (W): 0.343"
- Sprocket Weight: 5.8 LBS
Phone: (407) 347-3519
Email:
Feature
- Premium Quality Sprocket
- Manufactured Using High-Quality Steel
- Fully Meets ANSI Standards
- Black Oxide Coated
- Interchangeable With Other Manufactures
- Extremely Durable and High-Performance
- Sprocket Size: DS50A23H
- Tooth Count: 23
- Outside Diameter: 4.920"
- Pitch Diameter: 4.590"
- Sprocket Type: A
- Minimum Bore Size: 5/8"
- Maximum Bore Size: 2-5/8"
- Dimension (L): 1-21/32"
- Dimension (C): 1-5/16"
- Dimension (E): "
- Dimension (W): 0.343"
- Sprocket Weight: 5.8 LBS
