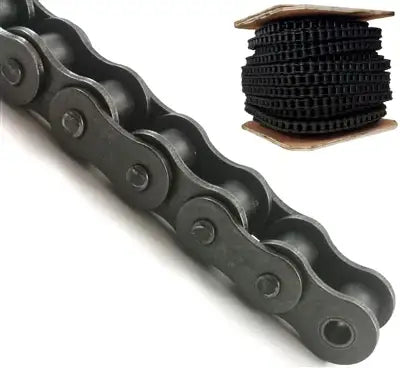

General Duty Plus #35 Roller Chain - 100ft Reel

General Duty Plus 35 Roller Chain 100ft Reel
General Duty Plus #35 Roller Chain



Our Price: $249.99
Note: Custom Cut To Length Chain Also Available


Availability: In-Stock
Product Code: GDP-35RC-100FT
Qty:

Description

100ft reels of #35 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. General Duty Plus #35 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #35 chain sprockets. All General Duty Plus series roller chains are manufactured using heat-treated and shot peened precision components and are supplied with a high-quality lubricant already applied from the factory.

General Duty Plus #35 Roller Chain Dimensions


  • Pitch (P): 0.375"
  • Bushing Width (W): 0.188"
  • Bushing Diameter (D): 0.200"
  • Overall Width (A): 0.472"
  • Plate Height (H): 0.354"
  • Plate Thickness (T): 0.049"
  • Pin Diameter (E): 0.141"
  • Tensile Strength: 2,400 LBS
  • Weight Per Foot: 0.21 LBS



About Us
Features
    • Manufactured To ANSI B29.1 Specifications
    • High-Strength and Durable
    • Made With Precision Heat-Treated Components
    • Pre-Lubricated From The Factory
