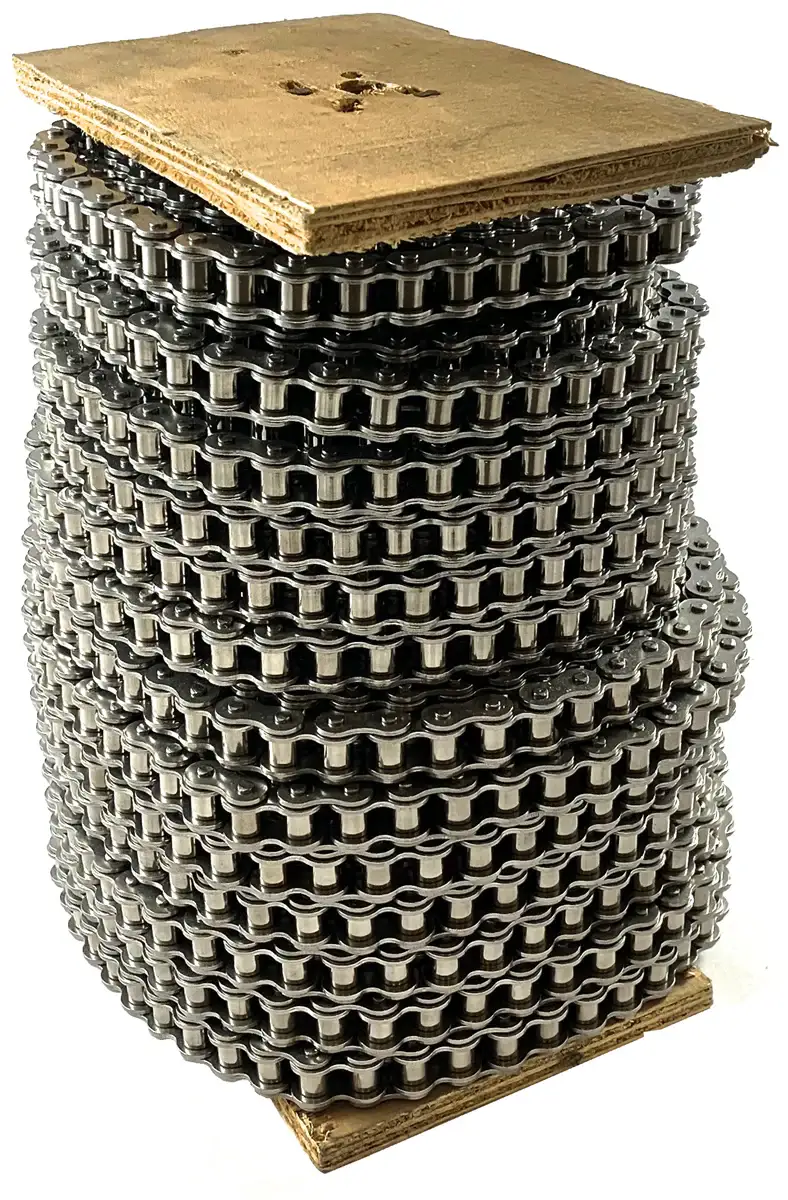

General duty plus #60 stainless steel roller chain on 50ft reel sets its self above other roller chains by utilizing higher-precision components, high-quality 304-grade stainless steel, and ultra-high tensile strength. It's made in accordance with ANSI B29.1 dimensional standards to ensure compatibility with other brands and sprockets. Buying #60SS stainless steel roller chain on a 50ft reel makes it possible to make specific cut-to-length strands without additional connection areas that can cause breakages down the line. For more information or to get a quote on stainless steel sprockets as well, please contact us, and we will be happy to assist you.
60 Stainless Steel Chain Dimensions
- Size: 60SS
- Pitch (P): 0.750"
- Roller Diameter (D1): 0.469"
- Width Between Inner Plates (B1): 0.500"
- Pin Diameter (D2): 0.234"
- Pin Length (LR): 1.06"
- Pin Length (LC): 1.23"
- Inner Plate Height (H2): 0.71"
- Plate Thickness (T): 0.094"
- Tensile Strength: 6,700 LBS
- Weight: 1.00 LBS/ FT
Feature
- High-Quality Chain
- Riveted Construction
- Anti-Corrosive
- Conforms to ANSI Standards
- Size: 60SS
- Pitch (P): 0.750"
- Roller Diameter (D1): 0.469"
- Width Between Inner Plates (B1): 0.500"
- Pin Diameter (D2): 0.234"
- Pin Length (LR): 1.06"
- Pin Length (LC): 1.23"
- Inner Plate Height (H2): 0.71"
- Plate Thickness (T): 0.094"
- Tensile Strength: 6,700 LBS
- Weight: 1.00 LBS/ FT
