H82 K2 Attachment

H82 K2 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: H82-K2-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
H82 Chain
H82 Chain
Login
View full details
Description
Specification
This H82 K2 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H82 chain in any configuration needed or sold as an individual H78 K-2 attachment link. For more information or to get a quote on H82 chain with K2 attachments or attachment links please contact us and we will be happy to assist you.

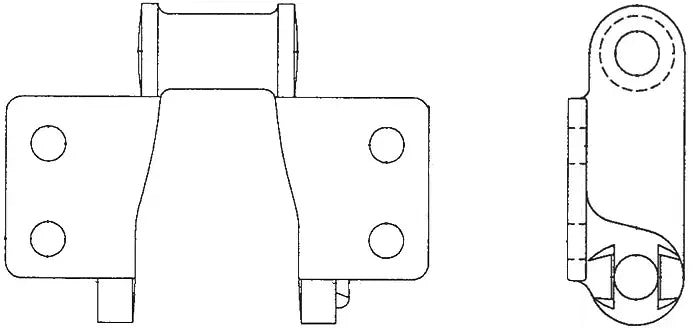

Dimensions:

  • Attachment Size: H82 K2
  • Pitch: 3.075"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (J): 0.88"
  • Dimension (K): 1.00"
  • Dimension (M): 4.25"
  • Dimension (M1): 1.31"
  • Dimension (R): 2.19"
  • Dimension (T): 0.310"
  • Dimension (W): 5.50"
  • Weight: 7.60 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Attachment
  • Extremely Durable
  • Can Be Assembled In Any Configuration
  • Usable In Abrasive Environments
  • Typically In-Stock
Featured image
  • Attachment Size: H82 K2
  • Pitch: 3.075"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (J): 0.88"
  • Dimension (K): 1.00"
  • Dimension (M): 4.25"
  • Dimension (M1): 1.31"
  • Dimension (R): 2.19"
  • Dimension (T): 0.310"
  • Dimension (W): 5.50"
  • Weight: 7.60 LBS/ FT
