IS-982 Chain

IS-982 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: IS-982-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
IS-982 Roller Conveyor Chain Connecting Link (Master Link)
IS-982 Roller Conveyor Chain Connecting Link (Master Link)
Login
View full details
Description
Specification

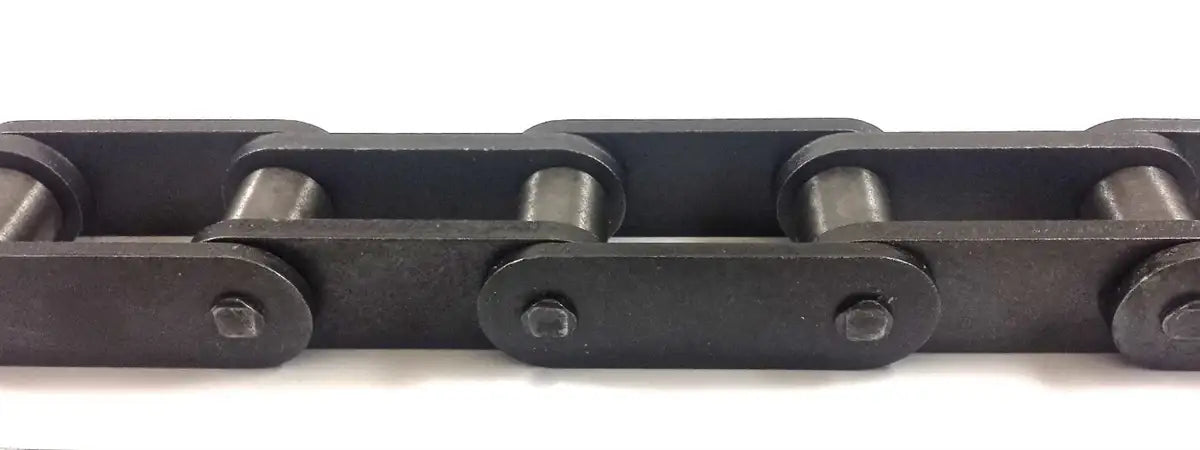

IS-982 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This IS-982 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality IS-982 sprockets with very short lead-times. For more information or to get a quote on IS-982 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:

  • Chain #: IS-982
  • Pitch: 2.609"
  • Pin End To CL (B): 1.45"
  • Pin Head To CL (C): 1.27"
  • Inside Width (E): 1.13"
  • Roller Diameter (D): 0.88"
  • Roller Width (L): 1.06"
  • Roller Style: T
  • Roller Material: Alloy Heat-Treated
  • Pin Diameter (G): 0.44"
  • Pin Material: Alloy Case Hardened
  • Sidebar Height (H): 1.13"
  • Sidebar Thickness (T): 0.25"
  • Sidebar Material: High Carbon
  • Bushing Material: Carbon Case Hardened
  • Bearing Area: 0.72"
  • Ultimate Strength: 18,000 LBS
  • Maximum Working Load: 2,500 LBS
  • Weight Per Foot: 3.8 LBS

Roller Style:

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Roller Chain
  • Extremely Durable
  • Heat-Treated or Hardened Component
  • Solid Components
Featured image
  • Chain #: IS-982
  • Pitch: 2.609"
  • Pin End To CL (B): 1.45"
  • Pin Head To CL (C): 1.27"
  • Inside Width (E): 1.13"
  • Roller Diameter (D): 0.88"
  • Roller Width (L): 1.06"
  • Roller Style: T
  • Roller Material: Alloy Heat-Treated
  • Pin Diameter (G): 0.44"
  • Pin Material: Alloy Case Hardened
  • Sidebar Height (H): 1.13"
  • Sidebar Thickness (T): 0.25"
  • Sidebar Material: High Carbon
  • Bushing Material: Carbon Case Hardened
  • Bearing Area: 0.72"
  • Ultimate Strength: 18,000 LBS
  • Maximum Working Load: 2,500 LBS
  • Weight Per Foot: 3.8 LBS
