LF 880 Tab K750 Table Top Chain
LF 880 Tab K750 Table Top Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: LF-880-TAB-K750-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

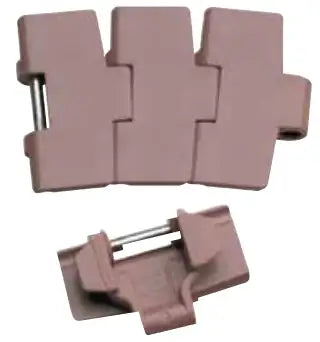

LF 880 Tab K750 table top chain is a 7.50" wide, low fiction chain that is manufactured out of POM-LF material and is brown in color. Using a chain with Tabs keeps the chain totally flat in the wear strips around turns. What sets this chain apart from others is that it is manufactured using high quality self lubricating polymers and features high-strength 304-grade stainless steel pins. LF 880 K750 chain is typically supplied as 10ft lengths and is a common in stock item. What sets USA Roller Chain apart is our expert customer service team, ease to do business with, rapid fast response times, extensive inventory, and extremely competitive pricing. To get a quote or for more information on table top chain please contact us and we will be happy to assist you.
The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on LF 880 tab K750 chain, sprockets, or other products please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
LF 880 tab K750 Chain Dimensions
Chain Pitch: 1.50" Width (W): 7.50" Backflex Radius: 3.00" Tensile Strength: 506 LBS Chain Weight: 1.00 LBS Minimum Radius (R): 15.75" Chain Material: POM-LF Dimension (E): 0.28" Dimension (G*): 1.75" Dimension (H): 0.63" Dimension (J): 2.42" Dimension (K): 0.47" Dimension (L): 0.30" Dimension (Q): 1.70" Dimension (T): 0.16"
The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
|
|
Tooth Count | Overall Diameter |
|---|---|---|
| 9 | 4.32" | |
| 10 | 4.81" | |
| 11 | 5.31" | |
| 12 | 5.80" | |
| 15 | 7.26" | |
| 9 | 4.32" | |
| 10 | 4.81" | |
| 11 | 5.31" | |
| 12 | 5.80" |
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on LF 880 tab K750 chain, sprockets, or other products please contact us and we will be happy to assist you.
Email:
Feature
- High Quality Table Top Chain
- Supplied as 10ft Lengths
- Great Performance
- Extremely Durable
Chain Pitch: 1.50" Width (W): 7.50" Backflex Radius: 3.00" Tensile Strength: 506 LBS Chain Weight: 1.00 LBS Minimum Radius (R): 15.75" Chain Material: POM-LF Dimension (E): 0.28" Dimension (G*): 1.75" Dimension (H): 0.63" Dimension (J): 2.42" Dimension (K): 0.47" Dimension (L): 0.30" Dimension (Q): 1.70" Dimension (T): 0.16"
