Hub City PT10507S-15 Reducer

PT10507S-15 Power Torque
PT10507S-15 Power Torque



Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years


Availability: Typically In-Stock
Product Code: PT10507S-15-REDUCER
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

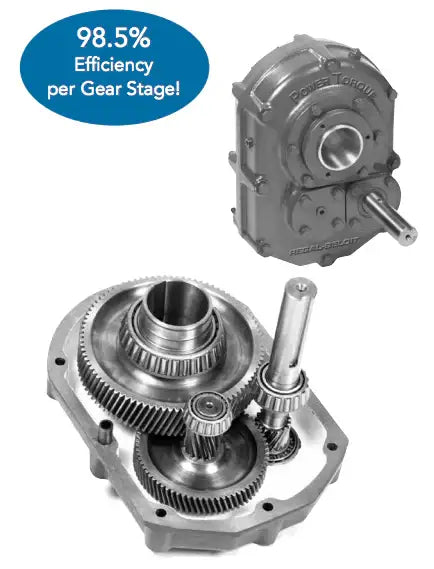

Hub City PT10507S-15 reducer is a high quality 15:1 ratio gearbox with rock solid dependability. What makes the Hub City Power Torque reducer so good is the universal design, high strength ductile housing, precision ground AGMA class 11 gearing, and immediate availability. Due to the universal design this reducer interchanges with the popular TXT reducers as well as other brands. If you are replacing an old gearbox that is not Hub City brand or TXT style please contract us to confirm usability. Besides the PT10507S-15 reducer we also have a full line of high quality accessories like bushing kits, backstop assemblies, motor mounts, screw conveyor adapters, screw conveyor drive shafts, and belt guards. Please note that torque-arm assemblies are included with each unit.

PT10507S-15 Dimensions


  • Part #: PT10507S-15
  • Ratio: 15:1
  • Box Size: 10
  • Dimension (L): 25.50"
  • Dimension (M): 35.00"
  • Dimension (N): 15.63"
  • Dimension (F): 2.6875"
  • Key: 0.625" X 0.312" X 7.875"
  • Maximum Dimension (B): 5-7/16"
  • Dimension (C): 2.50"
  • Dimension (E): 10.04"
  • Dimension (G): 6.53"
  • Dimension (W): 3.15"
  • Dimension (U): 4.00"
  • Dimension (X): 7.83"
  • Dimension (V): 6.91"
  • Dimension (Q): 9.10"
  • Dimension (Y): 3.07"
  • Dimension (H): 9.49"
  • Dimension (A1): 6.58"
  • Dimension (A2): 14.13"
  • Dimension (A3): 12.50"
  • Dimension (h): 12.75"
  • Minimum Dimension (R): 30"
  • Maximum Dimension (R): 36"
  • Dimension (P): 0.75"
  • Dimension (T): 7.09"

For mechanical ratings, service factors, or additional information or to get a quote please contact us and we will be happy to assist you.


Phone: (407) 347-3519
Email:
sales@usarollerchain.com



About Us
Features
    • Premium Quality Reducer
    • Typically In Stock
    • Extremely Durable
    • High Performance

Accessories
BG10 Belt Guard SMR10BSK Backstop SMR10 Torque Arm SMR1015RBKIT Rebuild Kit
BG10 Belt Guard SMR10BSK Backstop SMR10 Torque Arm SMR1015RBKIT Rebuild Kit
