Premium 35H Roller Chain - 10FT

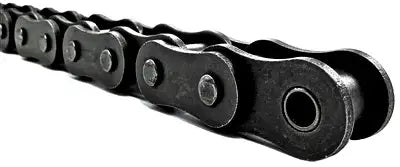

35H Roller Chain

Alternative Views:

Our Price: $149.99

Availability: In-Stock
Product Code: P-35H-ROLLER-CHAIN-10

Description Technical Specs
Our premium 35H roller chain sets the bar for performance, durability, and strength! This chain has a 0.375" (3/8") pitch and dimensionally conforms to ANSI B29.1 dimensional standards. What sets this 35H heavy roller chain apart from others besides the "premium" branding is; solid bushings, specially hardened pins, wide-waste side plates, shot peened components, factory pre-loading, and a high-quality factory-applied lubricant. Solid bushings improve the chains' life and performance while also creating superior contact with the root of the sprocket teeth, improving the sprocket's life. The importance of a perfectly cylindrical round part in a roller chain is often overlooked; it is also worth noting that the 35H chain does not have rollers! When it comes to strength, the pins play a vital role. Interestingly enough, most chain failures occur from pin breakage; using specific heat treatments and hardened techniques, our premium 35H heavy roller chain pins are superior to the "standard" and can withstand higher loads. Pairing that with the unique wide-waste side plates created a 35H chain more powerful than its predecessor. The processes of shot-peening components and factory pre-loading the chain improve fatigue capabilities and stretch! Post-manufacturing, a high-quality chain lubricant is applied on all chain surfaces (including internally) for enhanced performance. For additional information or to get a quote, contact our customer service team, and we will be happy to assist you!

35H Roller Chain Dimensions

  • Part #: 35H
  • Pitch (P): 0.375"
  • Bushing Diameter (D1): 0.200"
  • Width Between Inner Plates (B1): 0.188"
  • Pin Diameter (D2): 0.141"
  • Plate Height (H2): 0.354"
  • Plate Thickness (T): 0.060"
  • Weight Per Foot: 0.28 LBS

35H Heavy Chain Difference

The thicker side plates are what separates a 35H heavy roller chain from a standard 35 chain. The additional material increases the chain's wear life, strength, and shock load capabilities. Additionally, the 35H chain will operate on standard sprockets. One important note to factor in, though, is if you are changing your application from 35 chain to 35H heavy chain, it is imperative to ensure that your current application has an appropriate amount of clearance available due to the overall width of 35H chain being greater than a standard 35 chain.

Premium 35H Chain Benefits

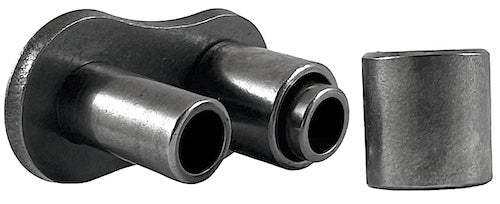

35H roller chain bushing
Cold-Forged Solid Bushings made to precise roundness for greater strength and performance versus the standard split-bushing design.
35H roller chain pins
Heat-Treated Parts (including pins) for added strength and surface hardness, resulting in longer working life.
35H roller chain shot
Shot Peened Parts to alleviate stress concentrations and increase strength.

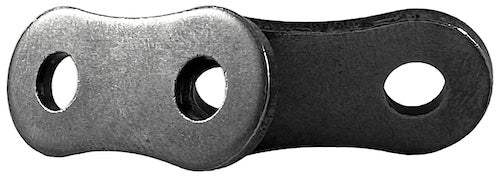

35H roller chain side plate
Wide-Waste Side-Plates for added fatigue resistance and reduction in progressive elongation.
35H roller chain load
Factory Preloading is the final process that greatly reduces stretch and ensures all components are properly aligned.
