Premier Series C2080H Corrosion Resistant Coated Roller Chain - 10ft Box

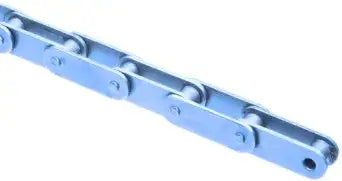

Premier Series C2080H Corrosion Resistant Coated Roller Chain



Alternative Views:
Our Price: $179.99

Product Code: PREMIER-C2080H-COATED-10FT
Qty:

Description Technical Specs

This premium quality C2080H corrosion resistant coated roller chain outperforms the competition by providing increased durability, longer wear life, and much higher strengths. This chain is manufactured using high quality carbon steel with a baked on coating for corrosion resistance. Each component has been heat treated to increase fatigue, wear life, and strength. The corrosion resistant coating is put on in a way to ensure the maximum working life and is more resistant to corrosion than nickel plated roller chain. Premier Series roller chains feature solid bushings & solid rollers for a dramatically increased wear life and working loads. This roller chain is commonly supplied in 10ft boxes including one connecting link per box, and fully meets all ANSI standards. USA Roller Chain & Sprockets offers a full line of attachments and sprockets for this chain, we can even supply it in different lengths per request. For additional information, please contact us!

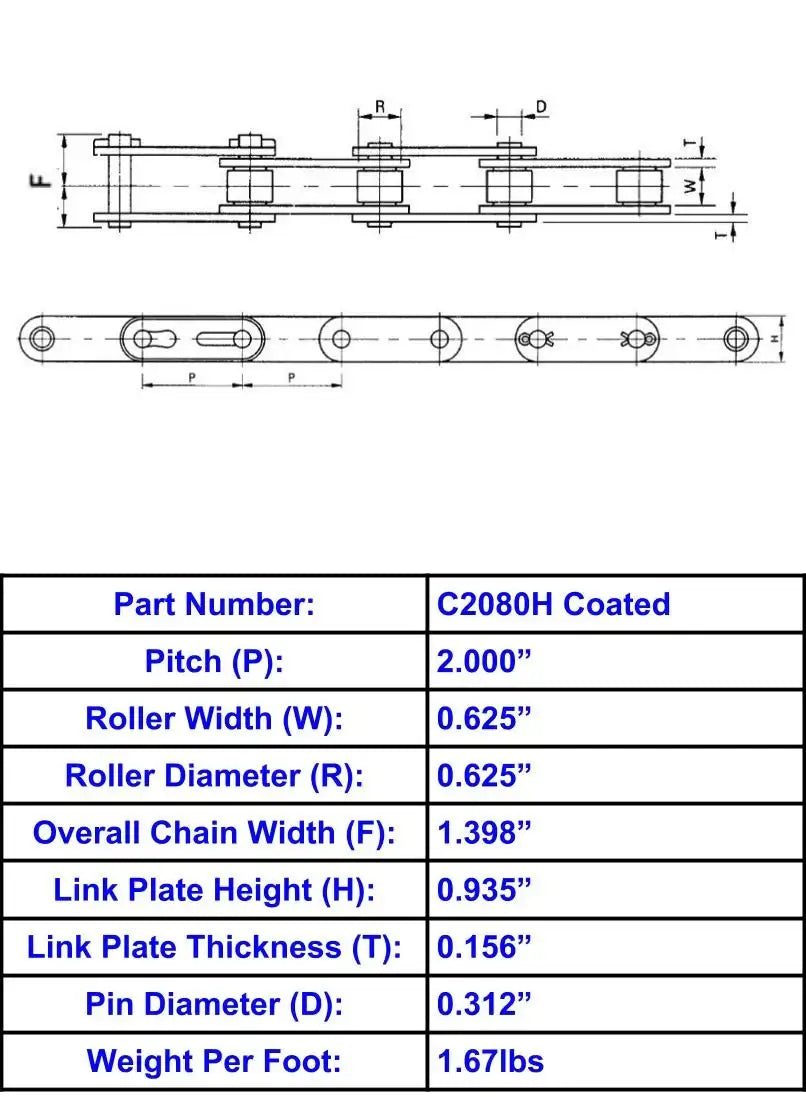

Dimensions:
  • Chain Size: C2080H Coated
  • Tensile Strength: 15,400lbs
  • Working Load: 2,530lbs
  • Pitch (P): 2.000"
  • Roller Width (W): 0.625"
  • Roller Diameter (R): 0.625"
  • Overall Chain Width (F): 1.398"
  • Link Plate Height (H): 0.935"
  • Link Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.312"
  • Specifications Met: ANSI Standards



  • Phone: (407) 347-3519
  • Email: sales@usarollerchain.com

About Us
Features
    • Extremely Resistant to Corrosion
    • Tensile Strength: 15,400lbs
    • Working Load: 2,530lbs
    • Premium Quality
    • Solid Bushings For Increased Strength & Working Life
    • Solid Rollers For Decreased Energy Consumption & Increased Performance
    • More Corrosion Resistant Than Nickel Plated Roller Chain
    • Heat Treated For Increased Strength
    • Pre-Stretched For Increased Wear Life
    • Fully Meets All ANSI Standards
