Vortex VXT1025 Reducer

VXT1025 Shaft Mount Reducer

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: VXT1025-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

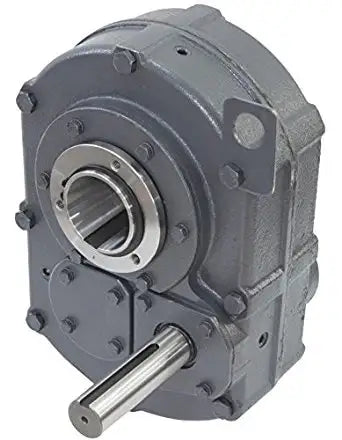

This Vortex VXT1025 reducer has a 25:1 ratio and is a premium quality, high strength gearbox. Vortex brand reducers use special gears that have been manufactured out of high-grade steel, then case hardened, and finally precision ground to AGMA standards for maximum durability and performance. The seals in a VXT1025 reducer are spring loaded and double lipped for minimal oil leakage and provides an overall longer seal life, plus the seal is protected by a metal reinforced guard. The shaft used in Vortex reducers is manufactured out of heat-treated alloy steel for the highest strength and durability. The housing is manufactured out of cast iron to damper vibration and is coated with a highly corrosive resistant coating. To round it all off the Vortex VXT1025 reducer uses a combination of premium tapered roller bearings and ball bearings to provide the highest load capacities and longest bearing life possible.

Reducer Dimensions:

Part #: VXT1025
Ratio: 25:1
Box Size: 10
Dimension (L): 25.50"
Dimension (M): 35.00"
Dimension (N): 15.63"
Dimension (F): 2.6875"
Key: 0.625" X 0.312" X 7.875"
Maximum Dimension (B): 5-7/16"
Dimension (C): 2.50"
Dimension (E): 10.04"
Dimension (G): 6.53"
Dimension (W): 3.15"
Dimension (U): 4.00"
Dimension (X): 7.83"
Dimension (V): 6.91"
Dimension (Q): 9.10"
Dimension (Y): 3.07"
Dimension (H): 9.49"
Dimension (A1): 6.58"
Dimension (A2): 14.13"
Dimension (A3): 12.50"
Dimension (h): 12.75"
Minimum Dimension (R): 30"
Maximum Dimension (R): 36"
Dimension (P): 0.75"
Dimension (T): 7.09"

Vortex shaft mount reducers are a direct drop in for TXT style reducers and are mechanically interchangeable with most other brands. For additional information or load and mechanical ratings on the Vortex VXT1025, or to get pricing and availability. Please contact us and we will be happy to assist you.
