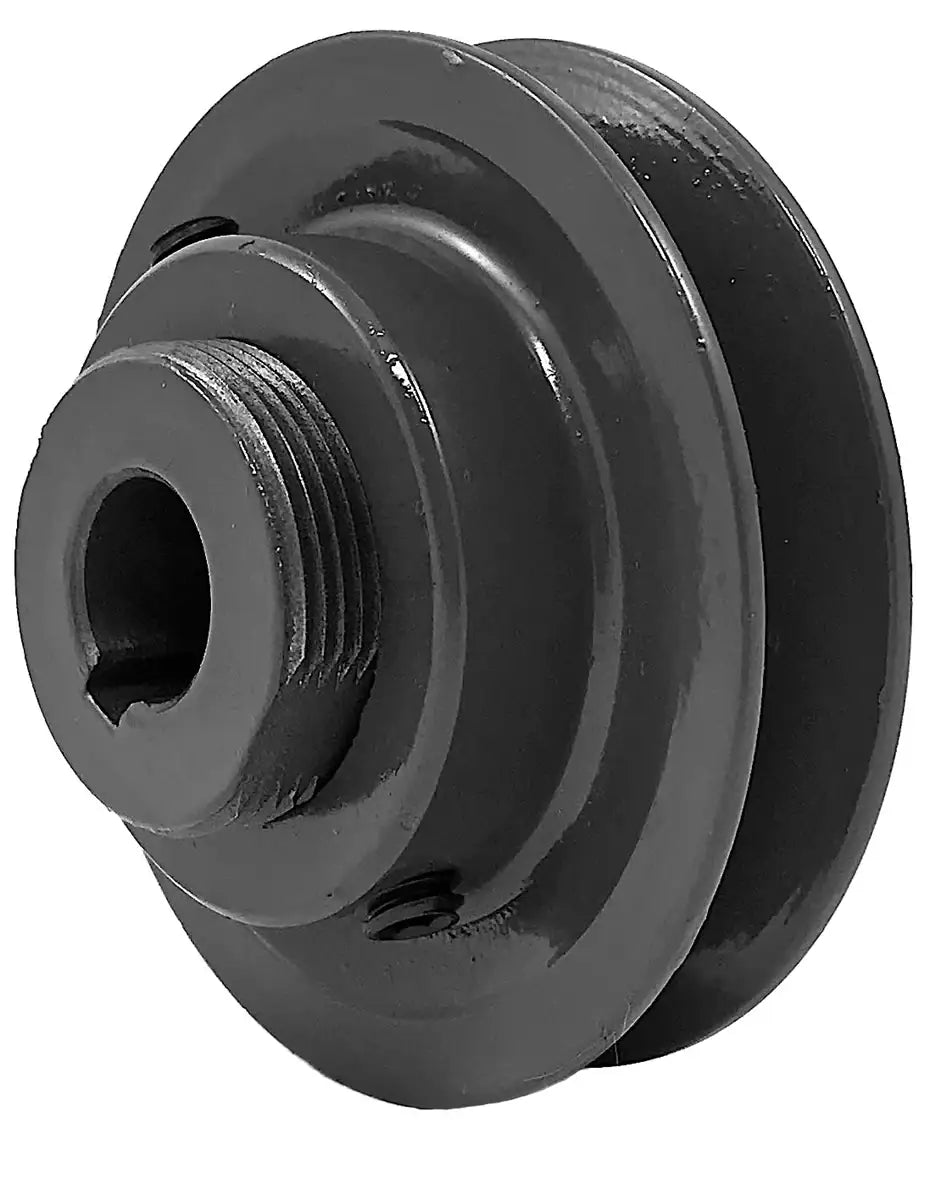

Variable Pitch 1VP34 Pulley 7/8"

Our Price: $31.99

Note: Fits Belt Types: 3L, 4L, A, AX
Note: Made From Extreme Duty Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Dynamically Balanced For Smooth Operation/ Extended Equipment Life

Product Code: 1VP34-PULLEY-78

Qty:

Description

Technical Specs

Variable Pitch 1VP34 Pulley 7/8" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our single-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 1VP34 pulleys with a 7/8" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

1VP34 Pulley 7/8" Dimensions

Pulley Size: 1VP34
Bore Size: 7/8"
Keyway Size: 3/16" X 3/32"
3L Minimum Pitch: 1.7"
Turns Open: 4
3L Maximum Pitch: 2.5"
Turns Open: 0
4L/ A Minimum Datum: 1.9"
Turns Open: 5
4L/ A Maximum Datum: 2.9"
Turns Open: 0
Pulley Type: 1
Outside Diameter: 3.15"
Dimension (F) Maximum: 1"
Dimension (F) Minimum: 11/16"
Dimension (G) Maximum: 13/16"
Dimension (G) Minimum: 1/2"
Dimension (L): 1-7/8"
Dimension (K): 21/32"
Pulley Weight: 1.4 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 1VP34 variable pitch pulley with 7/8" bore and other products please contact us and we will be happy to assist you.

About Us

Features

- High Performance
- Extremely Durable
- Corrosion Resistant
- Dynamically Balanced
