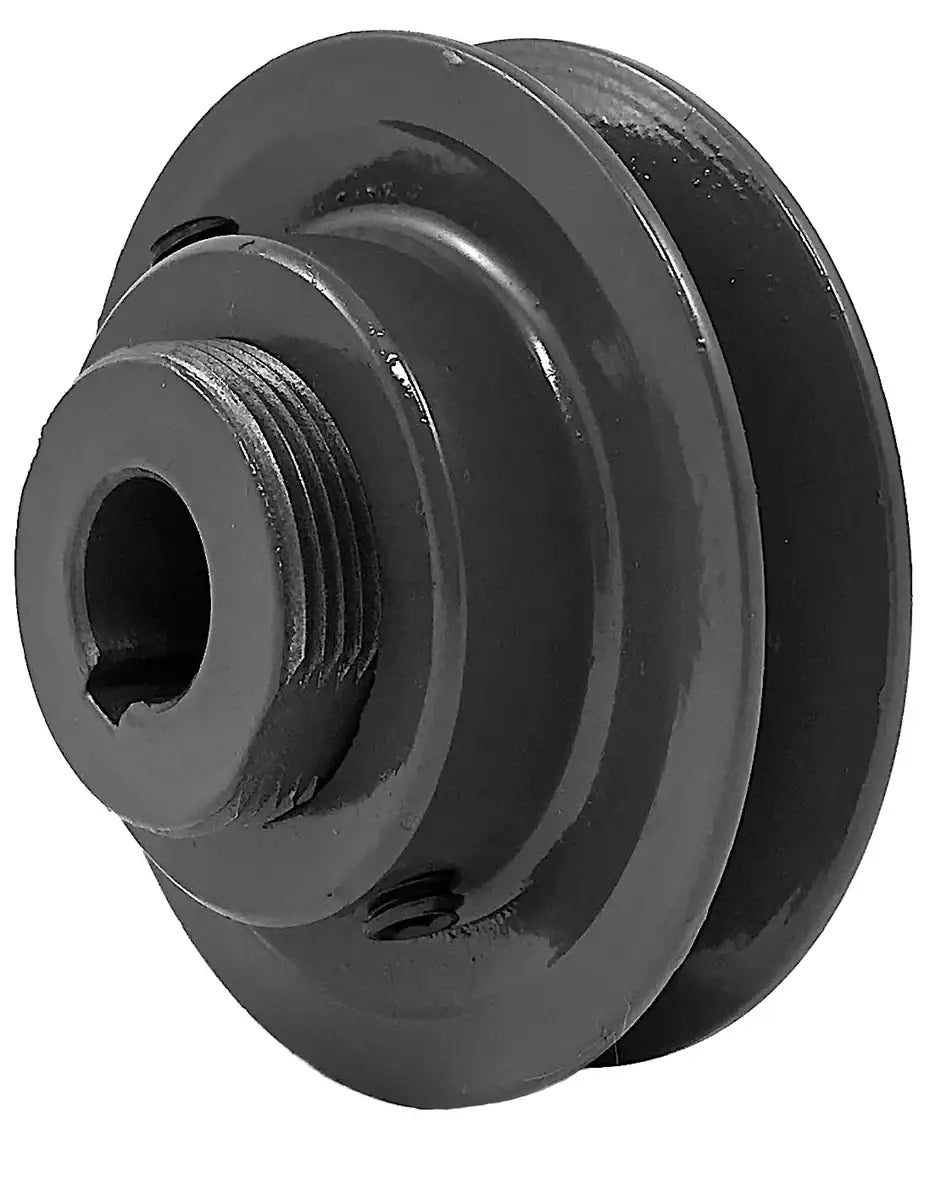

Variable Pitch 1VP50 Pulley 1/2"

Variable Pitch 1VP50 Pulley 12
Variable Pitch 1VP50 Pulley 1/2"



Our Price: $46.99
Note: Fits Belt Types: 3L, 4L, A, AX
Note: Made From Extreme Duty Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Dynamically Balanced For Smooth Operation/ Extended Equipment Life

Product Code: 1VP50-PULLEY-12
Qty:

Description Technical Specs

Variable Pitch 1VP50 Pulley 1/2" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our single-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 1VP50 pulleys with a 1/2" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

1VP50 Pulley 1/2" Dimensions


  • Pulley Size: 1VP50
  • Bore Size: 1/2"
  • 3L Minimum Pitch: 3.3"
  • Turns Open: 4
  • 3L Maximum Pitch: 4.1"
  • Turns Open: 0
  • 4L/ A Minimum Datum: 3.4"
  • Turns Open: 5
  • 4L/ A Maximum Datum: 4.4"
  • Turns Open: 0
  • Pulley Type: 1
  • Outside Diameter: 4.75"
  • Dimension (F) Maximum: 1-1/16"
  • Dimension (F) Minimum: 11/16"
  • Dimension (G) Maximum: 7/8"
  • Dimension (G) Minimum: 1/2"
  • Dimension (L): 2"
  • Dimension (K): 25/32"
  • Pulley Weight: 2.9 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 1VP50 variable pitch pulley with 1/2" bore and other products please contact us and we will be happy to assist you.


About Us
Features
    • High Performance
    • Extremely Durable
    • Corrosion Resistant
    • Dynamically Balanced
