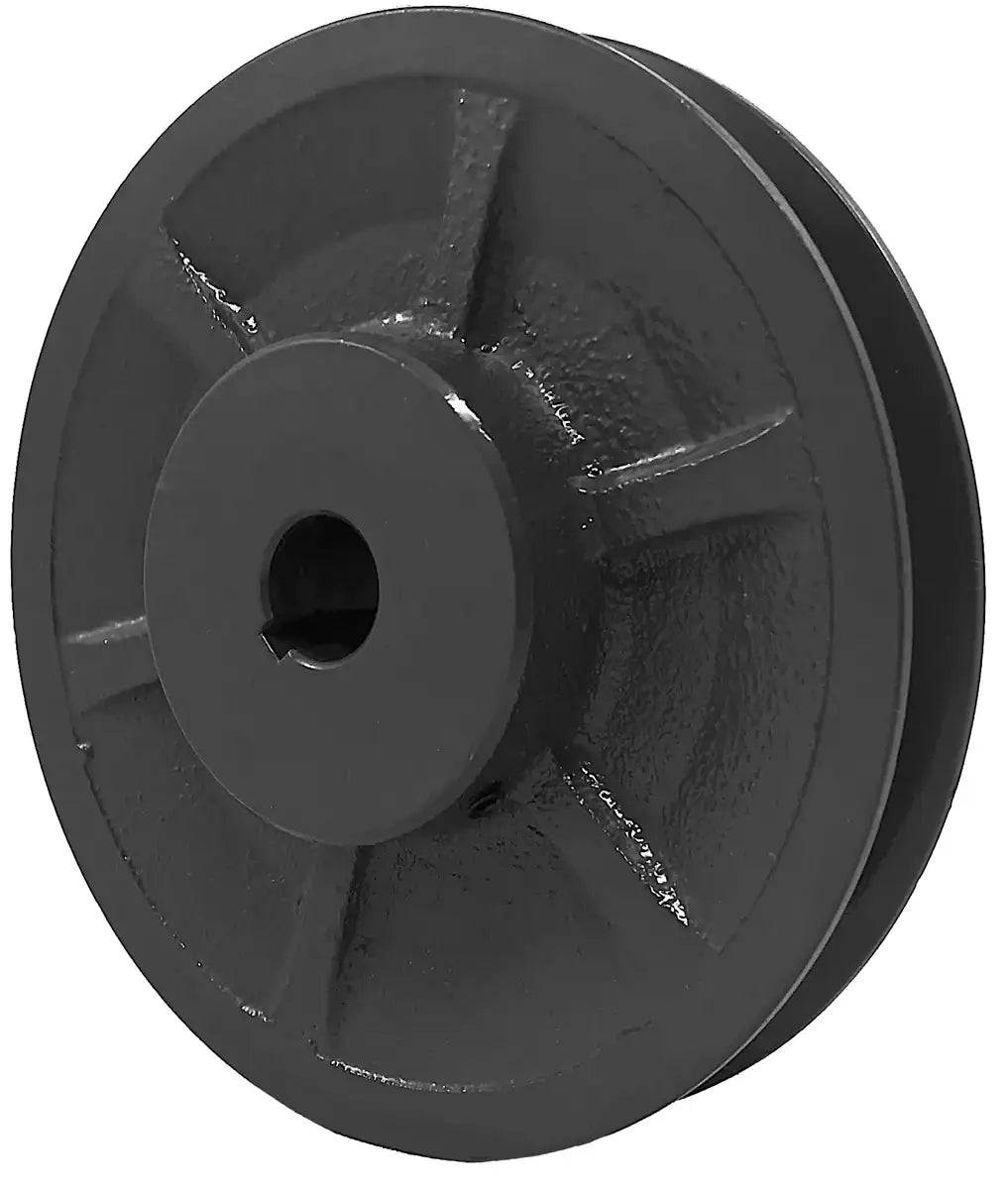

Variable Pitch 1VP68 Pulley 1"

Variable Pitch 1VP68 Pulley 1" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our single-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 1VP68 pulleys with a 1" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

1VP68 Pulley 1" Dimensions

• Pulley Size: 1VP68
• Bore Size: 1"
• Keyway Size: 1/4" X 1/8"
• 3L Minimum Pitch: 5.1"
• Turns Open: 4
• 3L Maximum Pitch: 5.9"
• Turns Open: 0
• 4L/ A Minimum Datum: 5.2"
• Turns Open: 5
• 4L/ A Maximum Datum: 6.2"
• Turns Open: 0
• Pulley Type: 2
• Outside Diameter: 6.55"
• Dimension (F) Maximum: 1-1/8"
• Dimension (F) Minimum: 3/4"
• Dimension (G) Maximum: 7/8"
• Dimension (G) Minimum: 1/2"
• Dimension (L): 1-29/32"
• Dimension (K): 21/32"
• Pulley Weight: 7.3 LBS
