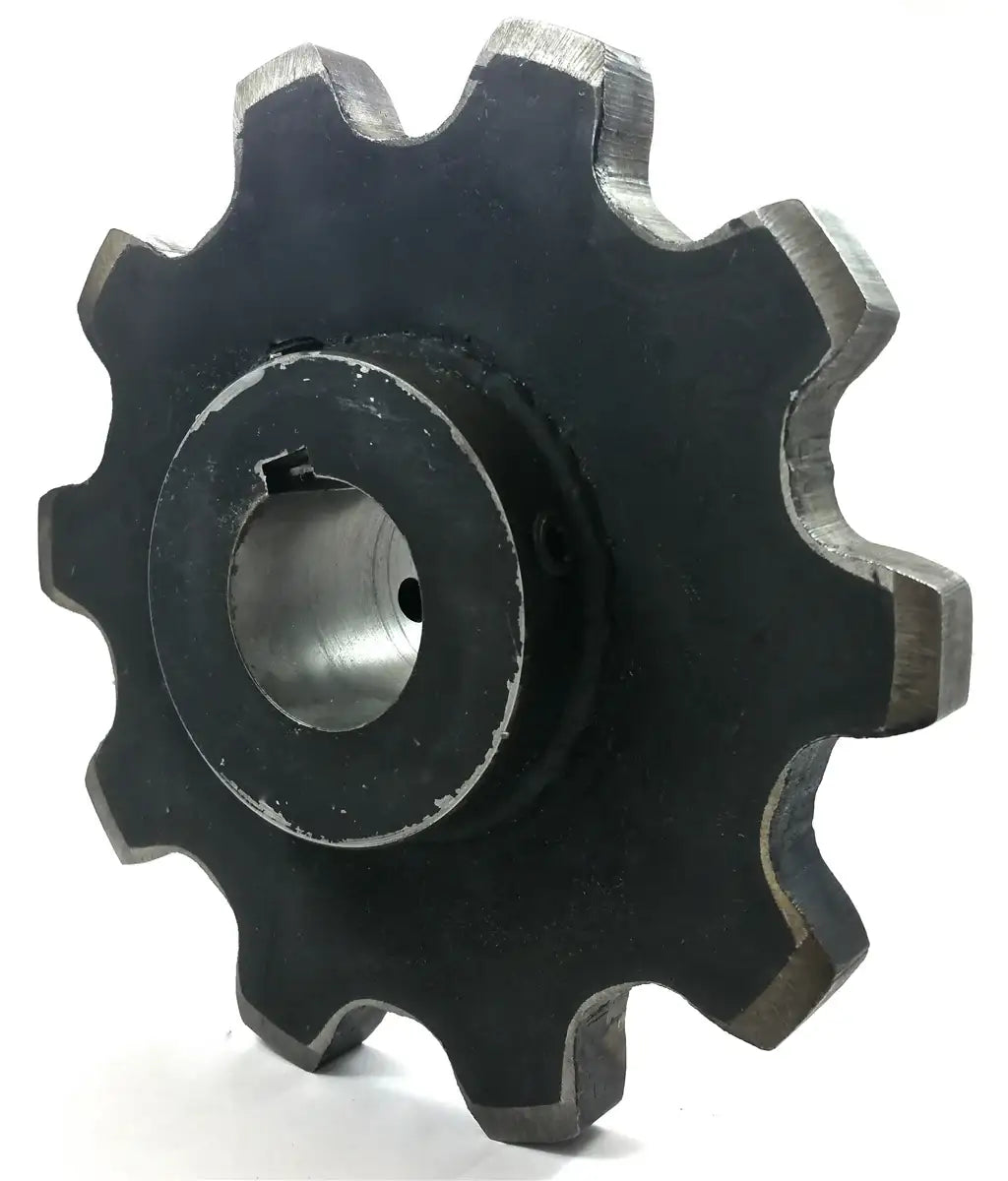

WH132-C9 Sprocket

WH132-C9 Sprocket

Note: Custom Cut to Length Chain Also Available
Product Code: WH132-C9-SPROCKET
Shipping calculated at checkout.
Other Customers Viewed
WH132 Chain | WH132 Welded Steel Chain
WH132 Chain | WH132 Welded Steel Chain
Login
WR132 Chain | Welded Steel Mill Chain
WR132 Chain | Welded Steel Mill Chain
Login
View full details
Description
Specification
WH132-C9 Sprocket

This WH132 sprocket will work with both WR132 welded steel chain and WH132 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:
WH132-C9 Sprocket
  • Style: C-Hub
  • Number Of Teeth: 9
  • Pitch: 6.050"
  • Pitch Diameter: 17.690"
  • Shroud Diameter: 14.128"
  • Hub Diameters (A/B): 8.000"/ 7.750"
  • Length Thru Bore: 6.750"
  • Barrel Diameter: 1.750"
  • Plate Thickness: 2.500"
  • Tooth Face: 2.750"
  • Stock Bore: 1.500"
  • Maximum Bore: 6.9375"
  • Weight: 244.00 LBS
  • Compatible Chains: WR132, WH132

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Will Work With WR132 Chain & WH132 Chain
  • Premium Quality Chain Sprocket
  • Wide Range Of Options Available
  • Best Pricing From USA Roller Chain & Sprockets
Featured image
  • Style: C-Hub
  • Number Of Teeth: 9
  • Pitch: 6.050"
  • Pitch Diameter: 17.690"
  • Shroud Diameter: 14.128"
  • Hub Diameters (A/B): 8.000"/ 7.750"
  • Length Thru Bore: 6.750"
  • Barrel Diameter: 1.750"
  • Plate Thickness: 2.500"
  • Tooth Face: 2.750"
  • Stock Bore: 1.500"
  • Maximum Bore: 6.9375"
  • Weight: 244.00 LBS
  • Compatible Chains: WR132, WH132
