WH78 F4 Attachment

This F4 attachment will work with both WR78 welded steel chain and WH78 welded steel chain. Something notable about this attachment is that it is manufacturing using a high quality steel and has heat treated components to ensure durability, extend working life, and improves the overall strength of the attachment. We can assemble this attachment onto the chain in any configuration needed to meet your exact needs. To get a quote please contact us and we will be happy to assist you.

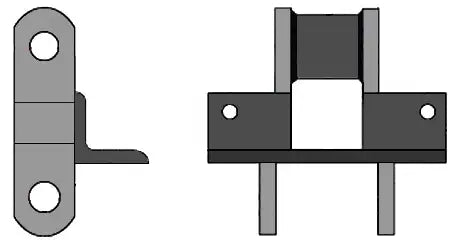

Dimensions:

  • Size: WH78 F4 Attachment
  • Dimension (A): 2.25"
  • Dimension (B): 2.75"
  • Dimension (A1): 1.88"
  • Dimension (D): 0.38"
  • Dimension (J): 0.25"
  • Dimension (X): 1.75"
  • Dimension (Y): 1.13"
  • Dimension (Y1): 0.63"
  • Dimension (Z): 1.00"
  • Dimension (Z1): 0.94"
  • Weight: 8.28 lbs/ft

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Attachment
  • Can Be Assembled In Any Configuration Needed
  • Heat Treated Components For Increased Strength & Fatigue
  • High Strength & Extremely Durable
Featured image
  • Size: WH78 F4 Attachment
  • Dimension (A): 2.25"
  • Dimension (B): 2.75"
  • Dimension (A1): 1.88"
  • Dimension (D): 0.38"
  • Dimension (J): 0.25"
  • Dimension (X): 1.75"
  • Dimension (Y): 1.13"
  • Dimension (Y1): 0.63"
  • Dimension (Z): 1.00"
  • Dimension (Z1): 0.94"
  • Weight: 8.28 lbs/ft
