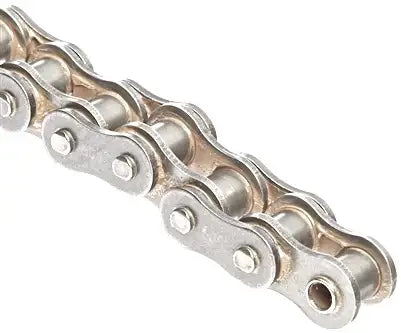

Stainless Steel O-Ring Roller Chain

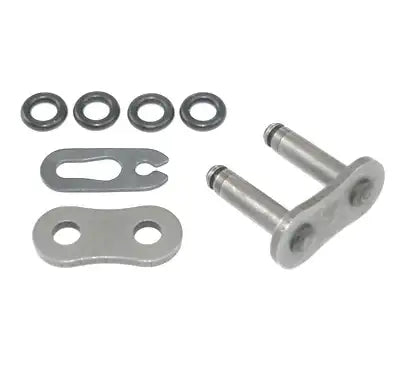

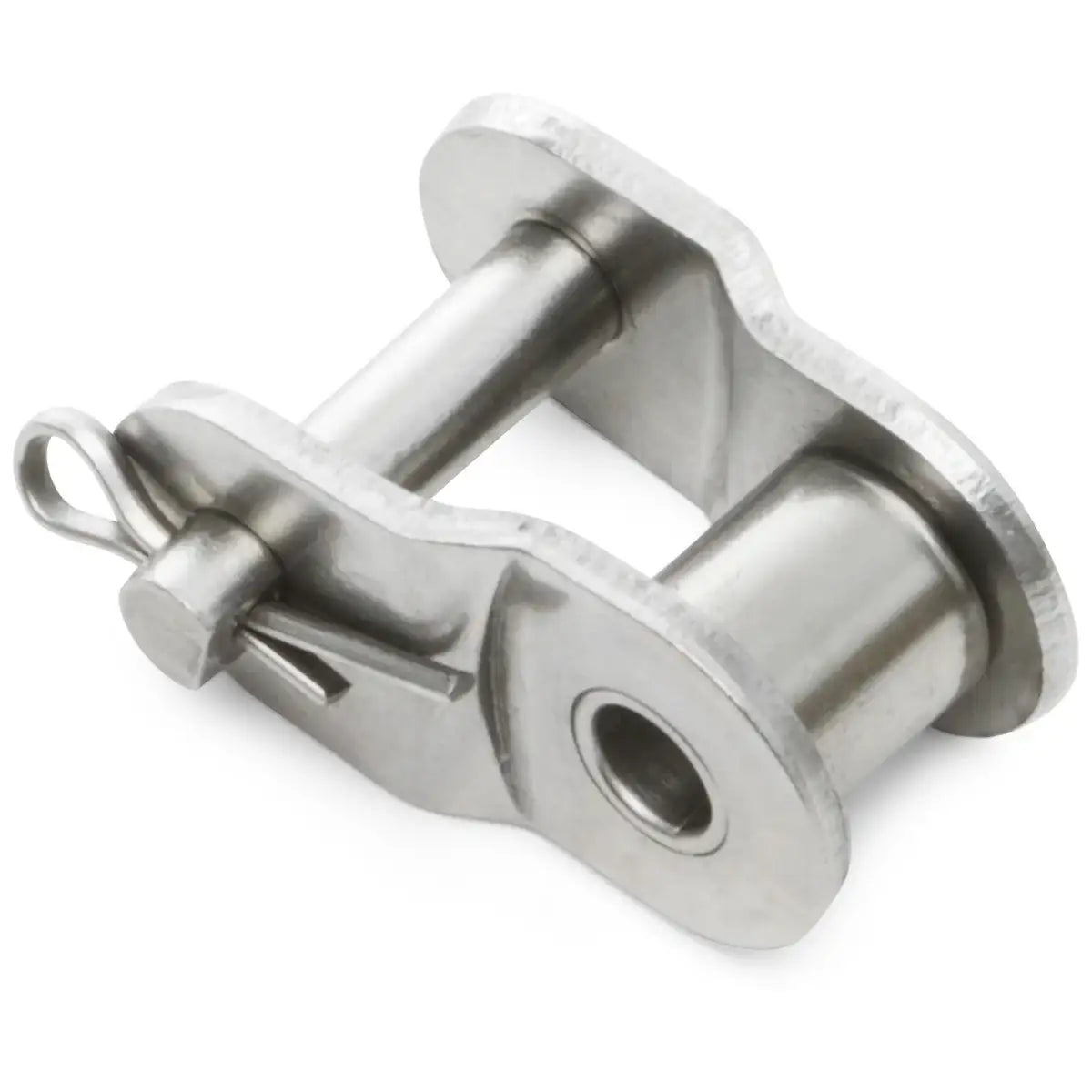

Stainless Steel O-Ring roller chain is manufactured to keep unwanted debris from getting into the interior of the chain by having a special O-ring placed between the side plates. This o-ring roller chain is manufactured for highly corrosive and abrasive applications and is constructed from premium 304-grade stainless steel. It is typically in stock and operates 3 decibels below a normal stainless steel roller chain. A few important things to note is that stainless steel O-Ring roller chain requires a special o-ring connecting link and offset link due to the increased clearance needed for the rubber o-rings. However, standard stainless steel sprockets can be used with this chain. We keep a full line of stainless steel roller chain sprockets in stock so if you are in need of sprockets for your application.Stainless Steel O-Ring Chain Sizes
The below chart shows our standard in-stock stainless steel o-ring sizes but additional sizes are available upon request.
|
Size
|
(P)
|
(W)
|
(D)
|
(d)
|
(E)
|
(F)
|
(f)
|
(T)
|
(H)
|
(h)
|
Weight (LBS/FT)
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40SSOR | 0.500" | 0.313" | 0.312" | 0.156" | 0.787" | 0.787" | 0.421" | 0.059" | 0.472" | 0.409" | 0.449 |
| 50SSOR | 0.625" | 0.375" | 0.400" | 0.200" | 0.921" | 0.941" | 0.504" | 0.079" | 0.591" | 0.512" | 0.724 |
| 60SSOR | 0.750" | 0.500" | 0.469" | 0.235" | 1.150" | 1.181" | 0.630" | 0.094" | 0.713" | 0.614" | 1.086 |
| 80SSOR | 1.000" | 0.625" | 0.625" | 0.313" | 1.437" | 1.531" | 0.823" | 0.126" | 0.941" | 0.881" | 1.898 |
