HCFJT200 Flange Bearings
HCFJT-200 two-bolt flange bearings are constructed with a solid cast iron, grease zerk for re-lubrication, and utilizes an eccentric locking method for securing onto a shaft. We stock HCFJT bearings in both inch and metric bore sizes. Normal-duty 2-bolt flange bearings are utilized in a broad range of applications such as plant machinery, agricultural equipment, conveyor systems, and many more! Our HCFJT200 bearings utilize state of the art manufacturing techniques combined with top-grade materials and premium features to provide the ultimate durability, performance, and wear life! For additional information or to get a quote on HCFJT200 bearings contact our customer support team and we will be happy to assist you!
HCFJT200 Bearing Sizes
| Bearing # | Shaft Dia. | (A) | (E) | (I) | (G) | (L) | (S) | (B) | (Z) | (Bi) | (N) | (M) |
Bolt Used
|
Dynamic Load Rating | Static Load Rating | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

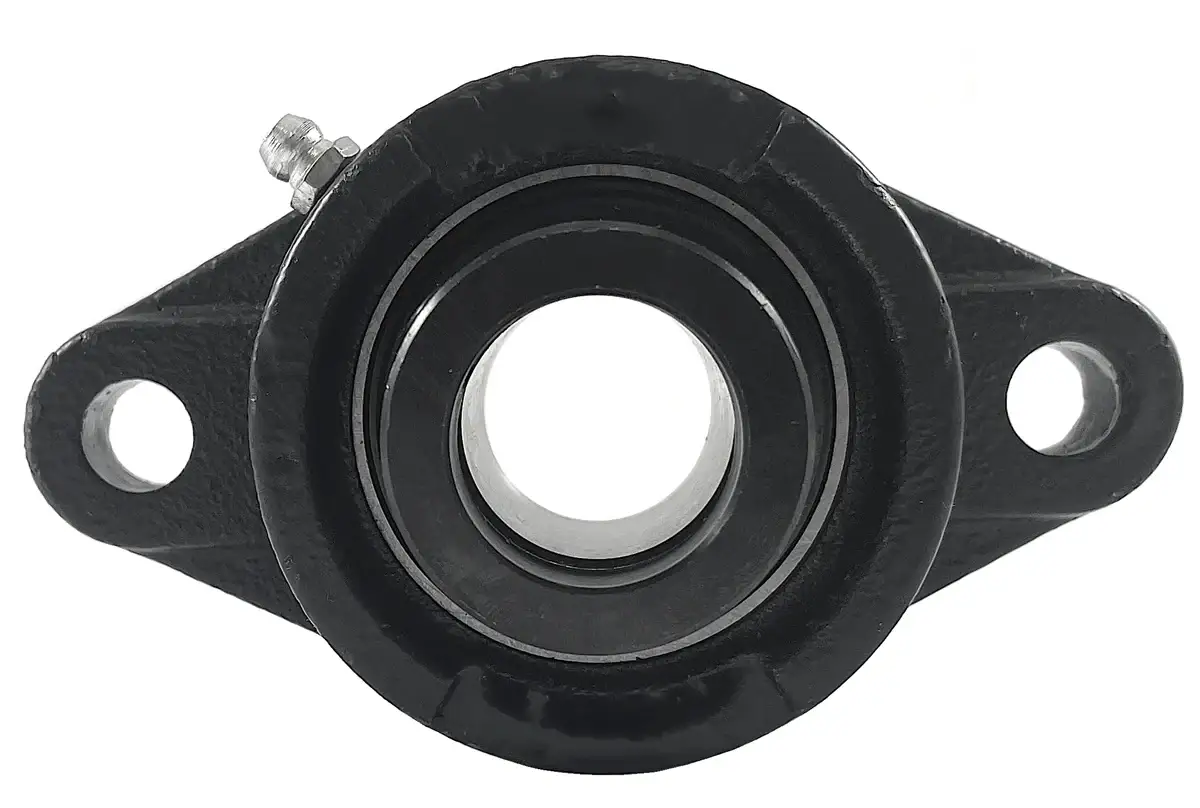

| HCWFJT201 | 12mm | 99.0mm | 76.2mm | 15.0mm | 11.0mm | 25.0mm | 10.0mm | 38.4mm | 38.4mm | 26.0mm | 13.9mm | 13.9mm | M8 | 9.55 kN | 4.78 kN | HCW 201 | WFT 203 | 0.5 kg |
| HCWFJT201-8 | 1/2" | 3.88" | 3.000" | 0.59" | 0.44" | 0.96" | 0.39" | 1.51" | 1.50" | 1.0236" | 0.5472" | 0.5472" | 5/16" | 2,147 LBS | 1,075 LBS | HCW 201-8 | WFT 203 | 1.1 LBS |
| HCWFJT202 | 15mm | 99.0mm | 76.2mm | 15.0mm | 11.0mm | 25.0mm | 10.0mm | 38.4mm | 38.4mm | 26.0mm | 13.9mm | 13.9mm | M8 | 9.55 kN | 4.78 kN | HCW 202 | WTF 203 | 0.5 kg |
| HCWFJT202-10 | 5/8" | 3.88" | 3.000" | 0.59" | 0.44" | 0.96" | 0.39" | 1.51" | 1.50" | 1.0236" | 0.5472" | 0.5472" | 5/16" | 2,147 LBS | 1,075 LBS | HCW 202-10 | WFT 203 | 1.1 LBS |
| HCWFJT203 | 17mm | 99.0mm | 76.2mm | 15.0mm | 11.0mm | 25.0mm | 10.0mm | 38.4mm | 38.4mm | 26.0mm | 13.9mm | 13.9mm | M8 | 9.55 kN | 4.78 kN | HCW 203 | WFT 203 | 0.5 kg |
| HCFJT204-12 | 3/4" | 4.4" | 3.531" | 0.75" | 0.44" | 1.25" | 0.41" | 2.38" | 1.79" | 1.7205" | 0.6732" | 0.6732" | 5/16" | 2,883 LBS | 1,496 LBS | HC 204-12 | FJT 204 | 1.3 LBS |
| HCFJT204 | 20mm | 112.0mm | 89.7mm | 19.0mm | 11.0mm | 32.0mm | 11.0mm | 60.0mm | 45.6mm | 43.7mm | 17.1mm | 17.1mm | M8 | 12.82 kN | 6.65 kN | HC 204 | FJT 204 | 0.6 kg |
| HCFJT205-14 | 7/8" | 4.88" | 3.891" | 0.75" | 0.50" | 1.31" | 0.47" | 2.75" | 1.81" | 1.7480" | 0.6890" | 0.6890" | 3/8" | 3,155 LBS | 1,810 LBS | HC 205-14 | FJT 205 | 1.5 LBS |
| HCFJT205-15 | 15/16" | 4.88" | 3.891" | 0.75" | 0.50" | 1.31" | 0.47" | 2.75" | 1.81" | 1.7480" | 0.6890" | 0.6890" | 3/8" | 3,155 LBS | 1,810 LBS | HC 205-15 | FJT 205 | 1.5 LBS |
| HCFJT205 | 25mm | 124.0mm | 98.8mm | 19.0mm | 13.0mm | 33.0mm | 12.0mm | 70.0mm | 46.0mm | 44.4mm | 17.5mm | 17.4mm | M10 | 14.04 kN | 8.05 kN | HC 205 | FJT 205 | 0.7 kg |
| HCFJT205-16 | 1" | 4.88" | 3.891" | 0.75" | 0.50" | 1.31" | 0.47" | 2.75" | 1.81" | 1.7480" | 0.6890" | 0.6890" | 3/8" | 3,155 LBS | 1,810 LBS | HC 205-16 | FJT 205 | 1.5 LBS |
| HCFJT206-17 | 1-1/16" | 5.56" | 4.594" | 0.81" | 0.50" | 1.38" | 0.47" | 3.25" | 2.00" | 1.9055" | 0.7205" | 0.7165" | 3/8" | 4,377 LBS | 2,569 LBS | HC 206-17 | FJT 206 | 2.2 LBS |
| HCFJT206-18 | 1-1/8" | 5.56" | 4.594" | 0.81" | 0.50" | 1.38" | 0.47" | 3.25" | 2.00" | 1.9055" | 0.7205" | 0.7165" | 3/8" | 4,377 LBS | 2,569 LBS | HC 206-18 | FJT 206 | 2.2 LBS |
| HCFJT206 | 30mm | 141.0mm | 116.7mm | 20.6mm | 13.0mm | 35.0mm | 12.0mm | 83.0mm | 50.8mm | 48.4mm | 18.3mm | 18.2mm | M10 | 19.47 kN | 11.43 kN | HC 206 | FJT 206 | 1.0 kg |
| HCFJT206-19 | 1-3/16" | 5.56" | 4.594" | 0.81" | 0.50" | 1.38" | 0.47" | 3.25" | 2.00" | 1.9055" | 0.7205" | 0.7165" | 3/8" | 4,377 LBS | 2,569 LBS | HC 206-19 | FJT 206 | 2.2 LBS |
| HCFJT206-20 | 1-1/4" | 5.56" | 4.594" | 0.81" | 0.50" | 1.38" | 0.47" | 3.25" | 2.00" | 1.9055" | 0.7205" | 0.7165" | 3/8" | 4,377 LBS | 2,569 LBS | HC 206-20 | FJT 206 | 2.2 LBS |
| HCFJT207-20 | 1-1/4" | 6.13" | 5.125" | 0.84" | 0.59" | 1.47" | 0.51" | 3.75" | 2.13" | 2.0118" | 0.7402" | 0.7402" | 7/16" | 5,775 LBS | 3,497 LBS | HC 207-20 | FJT 207 | 3.3 LBS |
| HCFJT207-21 | 1-5/16" | 6.13" | 5.125" | 0.84" | 0.59" | 1.47" | 0.51" | 3.75" | 2.13" | 2.0118" | 0.7402" | 0.7402" | 7/16" | 5,775 LBS | 3,497 LBS | HC 207-21 | FJT 207 | 3.3 LBS |
| HCFJT207-22 | 1-3/8" | 6.13" | 5.125" | 0.84" | 0.59" | 1.47" | 0.51" | 3.75" | 2.13" | 2.0118" | 0.7402" | 0.7402" | 7/16" | 5,775 LBS | 3,497 LBS | HC 207-22 | FJT 207 | 3.3 LBS |
| HCFJT207 | 35mm | 156.0mm | 130.2mm | 21.4mm | 15.0mm | 37.0mm | 13.0mm | 95.0mm | 53.7mm | 51.1mm | 18.8mm | 18.8mm | M12 | 25.69 kN | 15.56 kN | HC 207 | FJT 207 | 1.5 kg |
| HCFJT207-23 | 1-7/16" | 6.13" | 5.125" | 0.84" | 0.59" | 1.47" | 0.51" | 3.75" | 2.13" | 2.0118" | 0.7402" | 0.7402" | 7/16" | 5,775 LBS | 3,497 LBS | HC 207-23 | FJT 207 | 3.3 LBS |
| HCFJT208-24 | 1-1/2" | 6.78" | 5.656" | 0.94" | 0.59" | 1.69" | 0.51" | 4.13" | 2.31" | 2.2165" | 0.8425" | 0.8425" | 7/16" | 6,634 LBS | 4,079 LBS | HC 208-24 | FJT 208 | 4.6 LBS |
| HCFJT208-25 | 1-9/16" | 6.78" | 5.656" | 0.94" | 0.59" | 1.69" | 0.51" | 4.13" | 2.31" | 2.2165" | 0.8425" | 0.8425" | 7/16" | 6,634 LBS | 4,079 LBS | HC 208-24 | FJT 208 | 4.6 LBS |
| HCFJT208 | 40mm | 172.0mm | 143.7mm | 23.8mm | 15.0mm | 43.0mm | 13.0mm | 105.0mm | 58.7mm | 56.3mm | 21.4mm | 21.4mm | M12 | 29.51 kN | 18.14 kN | HC 208 | FJT 208 | 2.1 kg |
| HCFJT209-26 | 1-5/8" | 7.06" | 5.844" | 0.94" | 0.59" | 1.75" | 0.63" | 4.38" | 2.31" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 7,160 LBS | 4,676 LBS | HC 209-26 | FJT 209 | 5.5 LBS |
| HCFJT209-27 | 1-11/16" | 7.06" | 5.844" | 0.94" | 0.59" | 1.75" | 0.63" | 4.38" | 2.31" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 7,160 LBS | 4,676 LBS | HC 209-27 | FJT 209 | 5.5 LBS |
| HCFJT209-28 | 1-3/4" | 7.06" | 5.844" | 0.94" | 0.59" | 1.75" | 0.63" | 4.38" | 2.31" | 2.2165" | 0.8425" | 0.8425" | 1/2" | 7,160 LBS | 4,676 LBS | HC 209-28 | FJT 209 | 5.5 LBS |
| HCFJT209 | 45mm | 179.0mm | 148.4mm | 23.8mm | 15.0mm | 45.0mm | 16.0mm | 111.0mm | 58.7mm | 56.3mm | 21.4mm | 21.4mm | M14 | 31.85 kN | 20.80 kN | HC 209 | FJT 209 | 2.5 kg |
| HCFJT210-30 | 1-7/8" | 7.44" | 6.188" | 1.13" | 0.59" | 1.88" | 0.69" | 4.56" | 2.63" | 2.4685" | 0.9685" | 0.9685" | 1/2" | 7,867 LBS | 5,330 LBS | HC 210-30 | FJT 210 | 5.9 LBS |
| HCFJT210-31 | 1-15/16" | 7.44" | 6.188" | 1.13" | 0.59" | 1.88" | 0.69" | 4.56" | 2.63" | 2.4685" | 0.9685" | 0.9685" | 1/2" | 7,867 LBS | 5,330 LBS | HC 210-31 | FJT 210 | 5.9 LBS |
| HCFJT210 | 50mm | 189.0mm | 157.2mm | 28.6mm | 15.0mm | 48.0mm | 17.0mm | 116.0mm | 66.7mm | 62.7mm | 24.6mm | 24.6mm | M14 | 35.00 kN | 23.71 kN | HC 210 | FJT 210 | 2.7 kg |

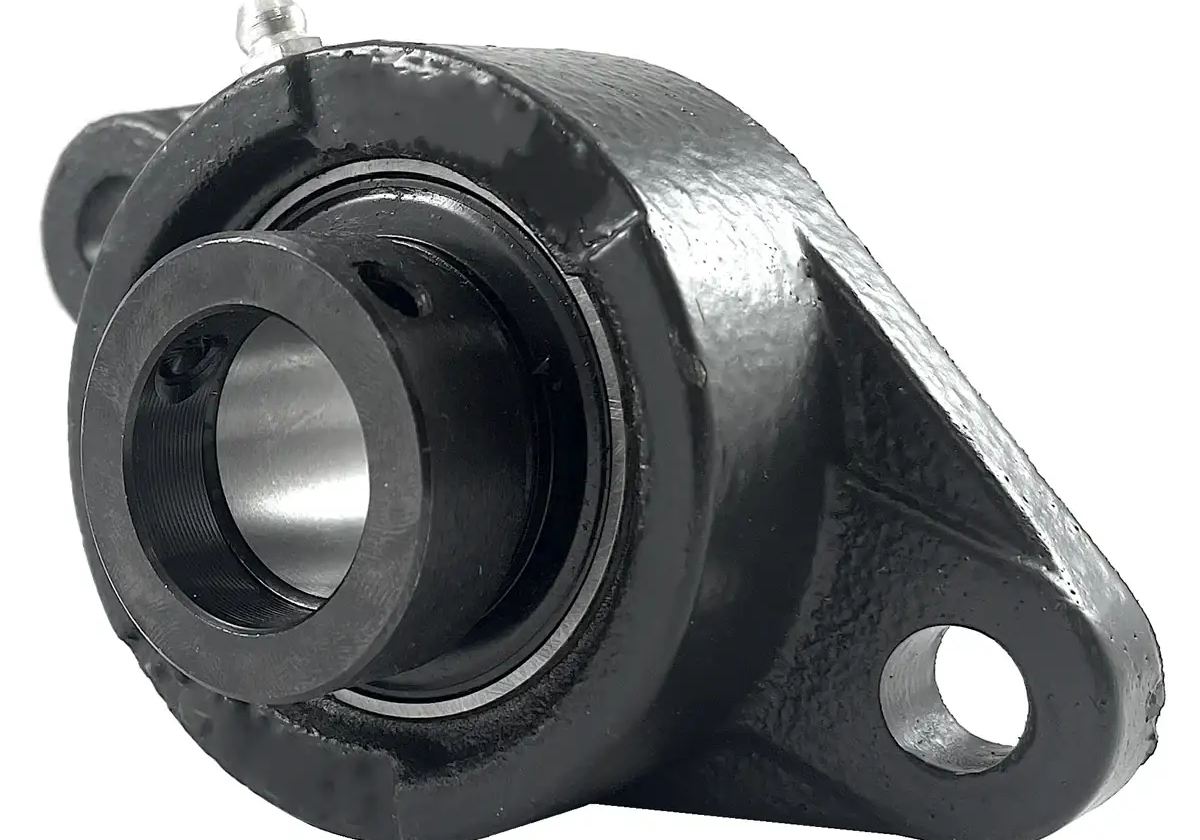

| HCFJT210-32 | 2" | 7.44" | 6.188" | 1.13" | 0.59" | 1.88" | 0.69" | 4.56" | 2.63" | 2.4685" | 0.9685" | 0.9685" | 1/2" | 7,867 LBS | 5,330 LBS | HC 210-32 | FJT 210 | 5.9 LBS |
| HCFJT211-32 | 2" | 8.50" | 7.250" | 1.25" | 0.83" | 2.00" | 0.71" | 5.25" | 2.97" | 2.8110" | 1.0945" | 1.0906" | 9/16" | 9,743 LBS | 6,608 LBS | HC 211-32 | FJT 211 | 8.1 LBS |
| HCFJT211-34 | 2-1/8" | 8.50" | 7.250" | 1.25" | 0.83" | 2.00" | 0.71" | 5.25" | 2.97" | 2.8110" | 1.0945" | 1.0906" | 9/16" | 9,743 LBS | 6,608 LBS | HC 211-34 | FJT 211 | 8.1 LBS |
| HCFJT211 | 55mm | 216.0mm | 184.2mm | 31.8mm | 21.0mm | 51.0mm | 18.0mm | 133.0mm | 75.5mm | 71.4mm | 27.8mm | 27.7mm | M16 | 43.34 kN | 29.40 kN | HC 211 | FJT 211 | 3.7 kg |
| HCFJT211-35 | 2-3/16" | 8.50" | 7.250" | 1.25" | 0.83" | 2.00" | 0.71" | 5.25" | 2.97" | 2.8110" | 1.0945" | 1.0906" | 9/16" | 9,743 LBS | 6,608 LBS | HC 211-35 | FJT 211 | 8.1 LBS |
| HCFJT212-36 | 2-1/4" | 9.31" | 7.938" | 1.34" | 0.83" | 2.09" | 0.71" | 5.44" | 3.19" | 3.0630" | 1.2205" | 1.2165" | 9/16" | 10,720 LBS | 7,516 LBS | HC 212-36 | FJT 212 | 10.6 LBS |
| HCFJT212 | 60mm | 237.0mm | 201.6mm | 34.0mm | 21.0mm | 53.0mm | 18.0mm | 138.0mm | 80.9mm | 77.8mm | 31.0mm | 30.9mm | M16 | 47.69 kN | 33.43 kN | HC 212 | FJT 212 | 4.8 kg |
| HCFJT212-38 | 2-3/8" | 9.31" | 7.938" | 1.34" | 0.83" | 2.09" | 0.71" | 5.44" | 3.19" | 3.0630" | 1.2205" | 1.2165" | 9/16" | 10,720 LBS | 7,516 LBS | HC 212-38 | FJT 212 | 10.6 LBS |
| HCFJT212-39 | 2-7/16" | 9.31" | 7.938" | 1.34" | 0.83" | 2.09" | 0.71" | 5.44" | 3.19" | 3.0630" | 1.2205" | 1.2165" | 9/16" | 10,720 LBS | 7,516 LBS | HC 212-39 | FJT 212 | 10.6 LBS |
