UEFT200 Bearings

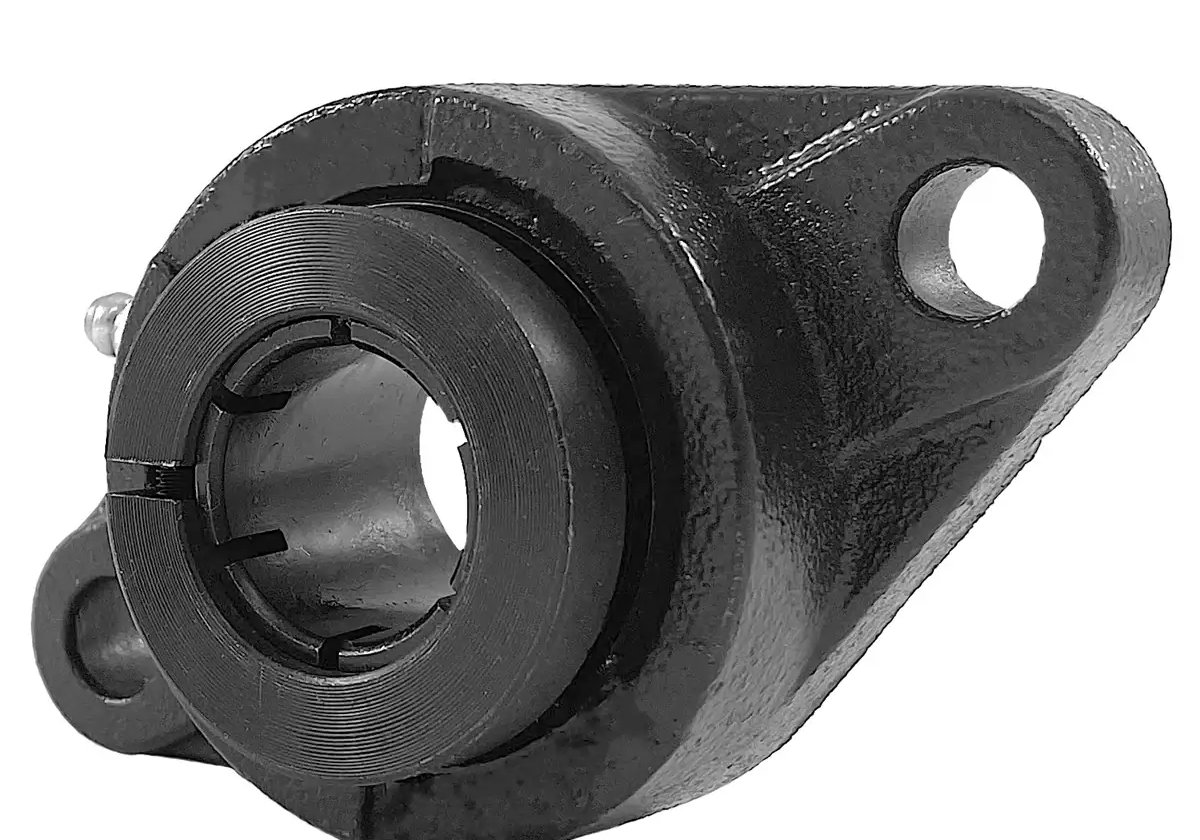

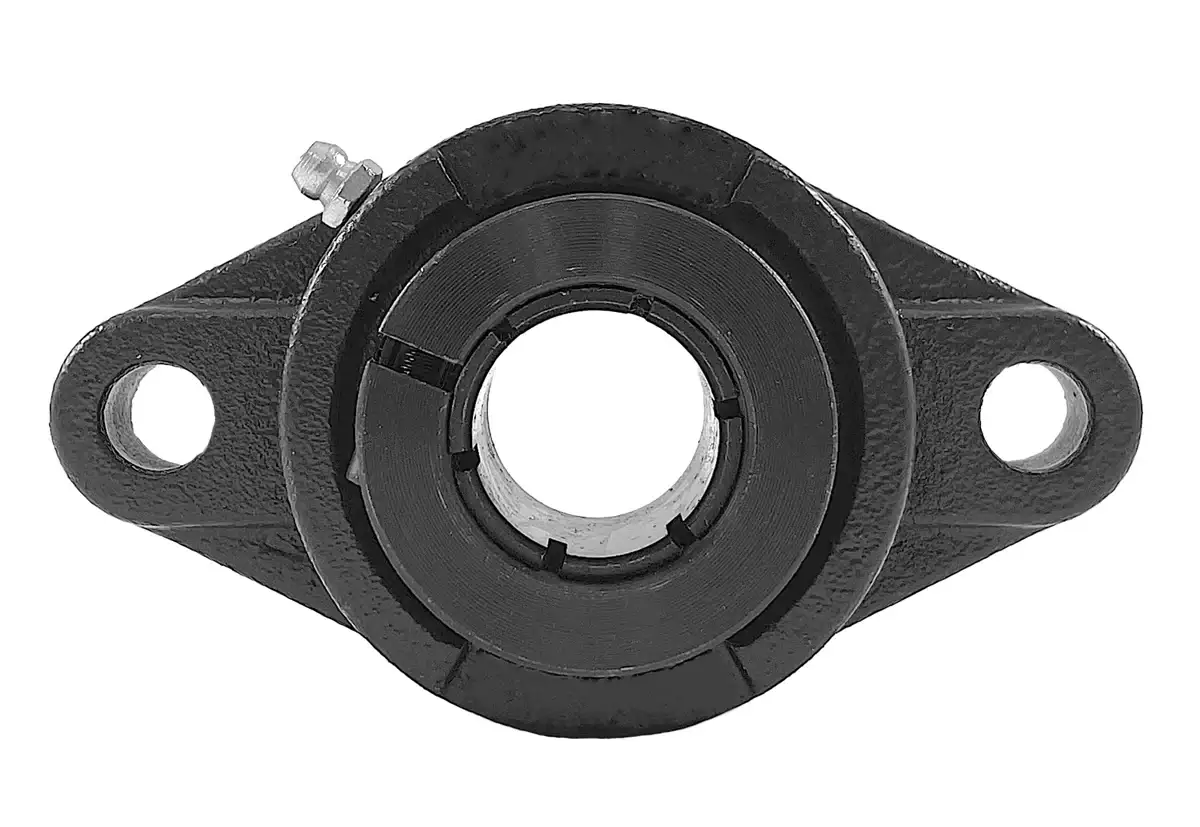

UEFT200 bearings are standard-duty two-bolt flange bearings that utilize a Tru-Loc device for securing onto a shaft. Our premium UEFT200 flange bearings feature a performance C3 precision bearing insert housed within a high-strength cast housing that is made to industry standard dimensions for direct interchangeability with almost every brand. UEFT200 bearings are designed with two mounting holes for a decreased footprint and increased design compatibility. These bearings are found in a range of applications such as; conveyors, plant machinery, agricultural equipment, and many more! For additional information or to get a quote on UEFT200 bearings contact our customer service team and we will be happy to assist you.
UEFT200 Bearing Sizes
| Bearing # | Shaft Dia. | (A) | (E) | (I) | (G) | (L) | (S) | (B) | (Z) | (Bi) | (N) | (M) |
Bolt Used
|
Dynamic Load Rating | Static Load Rating | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UEFT204-12 | 3/4" | 4.41" | 3.531" | 0.56" | 0.44" | 0.98" | 0.39" | 2.38" | 1.38" | 1.2992" | 0.5000" | 0.720" | 5/16" | 2,883 LBS | 1,496 LBS | UE 204-12 | FT 204 | 1.1 LBS |
| UEFT204 | 20mm | 112.0mm | 89.7mm | 14.3mm | 11.0mm | 25.0mm | 10.0mm | 60.0mm | 34.6mm | 33.0mm | 12.7mm | 18.3mm | M8 | 12.82 kN | 6.65 kN | UE 204 | FT 204 | 0.5 kg |
| UEFT205-14 | 7/8" | 4.88" | 3.891" | 0.63" | 0.50" | 1.06" | 0.47" | 2.75" | 1.44" | 1.3937" | 0.5630" | 0.780" | 3/8" | 3,155 LBS | 1,810 LBS | UE 205-14 | FT 205 | 1.5 LBS |
| UEFT205-15 | 15-16" | 4.88" | 3.891" | 0.63" | 0.50" | 1.06" | 0.47" | 2.75" | 1.44" | 1.3937" | 0.5630" | 0.780" | 3/8" | 3,155 LBS | 1,810 LBS | UE 205-15 | FT 205 | 1.5 LBS |
| UEFT205 | 25mm | 124.0mm | 98.8mm | 15.9mm | 13.0mm | 27.0mm | 12.0mm | 70.0mm | 37.0mm | 35.4mm | 14.3mm | 19.8mm | M10 | 14.04 kN | 8.05 kN | UE 205 | FT 205 | 0.7 kg |
| UEFT205-16 | 1" | 4.88" | 3.891" | 0.63" | 0.50" | 1.06" | 0.47" | 2.75" | 1.44" | 1.3937" | 0.5630" | 0.780" | 3/8" | 3,155 LBS | 1,810 LBS | UE 205-16 | FT 205 | 1.5 LBS |
| UEFT206-17 | 1-1/16" | 5.56" | 4.594" | 0.70" | 0.50" | 1.18" | 0.47" | 3.25" | 1.66" | 1.5669" | 0.6260" | 0.874" | 3/8" | 4,377 LBS | 2,569 LBS | UE 206-17 | FT 206 | 2.0 LBS |
| UEFT206-18 | 1-1/8" | 5.56" | 4.594" | 0.70" | 0.50" | 1.18" | 0.47" | 3.25" | 1.66" | 1.5669" | 0.6260" | 0.874" | 3/8" | 4,377 LBS | 2,569 LBS | UE 206-18 | FT 206 | 2.0 LBS |
| UEFT206 | 30mm | 141.0m | 116.7mm | 17.9mm | 13.0mm | 30.0mm | 12.0mm | 83.0mm | 41.8mm | 39.8mm | 15.9mm | 22.2mm | M10 | 19.47 kN | 11.43 kN | UE 206 | FT 206 | 0.9 kg |
| UEFT206-19 | 1-3/16" | 5.56" | 4.594" | 0.70" | 0.50" | 1.18" | 0.47" | 3.25" | 1.66" | 1.5669" | 0.6260" | 0.874" | 3/8" | 4,377 LBS | 2,569 LBS | UE 206-19 | FT 206 | 2.0 LBS |
| UEFT206-20 | 1-1/4" | 5.56" | 4.594" | 0.70" | 0.50" | 1.18" | 0.47" | 3.25" | 1.66" | 1.5669" | 0.6260" | 0.874" | 3/8" | 4,377 LBS | 2,569 LBS | UE 206-20 | FT 206 | 2.0 LBS |
| UEFT207-20 | 1-1/4" | 6.13" | 5.125" | 0.75" | 0.56" | 1.34" | 0.51" | 3.75" | 1.78" | 1.7283" | 0.6890" | 1.000" | 7/16" | 5,775 LBS | 3,497 LBS | UE 207-20 | FT 207 | 2.9 LBS |
| UEFT207-21 | 1-5/16" | 6.13" | 5.125" | 0.75" | 0.56" | 1.34" | 0.51" | 3.75" | 1.78" | 1.7283" | 0.6890" | 1.000" | 7/16" | 5,775 LBS | 3,497 LBS | UE 207-21 | FT 207 | 2.9 LBS |
| UEFT207-22 | 1-3/8" | 6.13" | 5.125" | 0.75" | 0.56" | 1.34" | 0.51" | 3.75" | 1.78" | 1.7283" | 0.6890" | 1.000" | 7/16" | 5,775 LBS | 3,497 LBS | UE 207-22 | FT 207 | 2.9 LBS |
| UEFT207 | 35mm | 156.0mm | 130.2mm | 19.1mm | 14.0mm | 34.0mm | 13.0mm | 95.0mm | 45.5mm | 43.9mm | 17.5mm | 25.4mm | M12 | 25.69 kN | 15.56 kN | UE 207 | FT 207 | 1.3 kg |
| UEFT207-23 | 1-7/16" | 6.13" | 5.125" | 0.75" | 0.56" | 1.34" | 0.51" | 3.75" | 1.78" | 1.7283" | 0.6890" | 1.000" | 7/16" | 5,775 LBS | 3,497 LBS | UE 207-23 | FT 207 | 2.9 LBS |
| UEFT208-24 | 1-1/2" | 6.75" | 5.656" | 0.83" | 0.56" | 1.50" | 0.51" | 4.13" | 2.06" | 1.9764" | 0.7480" | 1.189" | 7/16" | 6,634 LBS | 4,079 LBS | UE 208-24 | FT 208 | 3.3 LBS |
| UEFT208-25 | 1-9/16" | 6.75" | 5.656" | 0.83" | 0.56" | 1.50" | 0.51" | 4.13" | 2.06" | 1.9764" | 0.7480" | 1.189" | 7/16" | 6,634 LBS | 4,079 LBS | UE 208-25 | FT 208 | 3.3 LBS |
| UEFT208 | 40mm | 171.0mm | 143.7mm | 21.0mm | 14.0mm | 38.0mm | 13.0mm | 105.0mm | 52.2mm | 50.2mm | 19.0mm | 30.2mm | M12 | 29.51 kN | 18.14 kN | UE 208 | FT 208 | 1.5 kg |
| UEFT209-26 | 1-5/8" | 7.04" | 5.844" | 0.86" | 0.56" | 1.56" | 0.59" | 4.38" | 2.09" | 1.9764" | 0.7480" | 1.189" | 1/2" | 7,160 LBS | 4,676 LBS | UE 209-26 | FT 209 | 3.7 LBS |
| UEFT209-27 | 1-11/16" | 7.04" | 5.844" | 0.86" | 0.56" | 1.56" | 0.59" | 4.38" | 2.09" | 1.9764" | 0.7480" | 1.189" | 1/2" | 7,160 LBS | 4,676 LBS | UE 209-27 | FT 209 | 3.7 LBS |
| UEFT209-28 | 1-3/4" | 7.04" | 5.844" | 0.86" | 0.56" | 1.56" | 0.59" | 4.38" | 2.09" | 1.9764" | 0.7480" | 1.189" | 1/2" | 7,160 LBS | 4,676 LBS | UE 209-28 | FT 209 | 3.7 LBS |
| UEFT209 | 45mm | 179.0mm | 148.4mm | 21.8mm | 14.0mm | 40.0mm | 15.0mm | 111.0mm | 53.0mm | 50.2mm | 19.0mm | 30.2mm | M14 | 31.85 kN | 20.80 kN | UE 209 | FT 209 | 1.7 kg |
| UEFT210-30 | 1-7/8" | 7.44" | 6.188" | 0.88" | 0.56" | 1.56" | 0.63" | 4.56" | 2.19" | 2.0709" | 0.7480" | 1.283" | 1/2" | 7,867 LBS | 5,330 LBS | UE 210-30 | FT 210 | 5.1 LBS |
| UEFT210-31 | 1-15/16" | 7.44" | 6.188" | 0.88" | 0.56" | 1.56" | 0.63" | 4.56" | 2.19" | 2.0709" | 0.7480" | 1.283" | 1/2" | 7,867 LBS | 5,330 LBS | UE 210-31 | FT 210 | 5.1 LBS |
| UEFT210 | 50mm | 189.0mm | 157.2mm | 22.2mm | 14.0mm | 40.0mm | 16.0mm | 116.0mm | 55.8mm | 52.6mm | 19.0mm | 32.6mm | M14 | 35.00 kN | 23.71 kN | UE 210 | FT 210 | 2.3 kg |
| UEFT210-32 | 2" | 7.44" | 6.188" | 0.88" | 0.56" | 1.56" | 0.63" | 4.56" | 2.19" | 2.0709" | 0.7480" | 1.283" | 1/2" | 7,867 LBS | 5,330 LBS | UE 210-32 | FT 210 | 5.1 LBS |
| UEFT211-32 | 2" | 8.50" | 7.250" | 1.00" | 0.83" | 1.75" | 0.64" | 5.25" | 2.34" | 2.2283" | 0.8740" | 1.315" | 9/16" | 9,743 LBS | 6,608 LBS | UE 211-32 | FT 211 | 6.2 LBS |
| UEFT211-34 | 2-1/8" | 8.50" | 7.250" | 1.00" | 0.83" | 1.75" | 0.64" | 5.25" | 2.34" | 2.2283" | 0.8740" | 1.315" | 9/16" | 9,743 LBS | 6,608 LBS | UE 211-34 | FT 211 | 6.2 LBS |
| UEFT211 | 55mm | 216.0mm | 184.2mm | 25.4mm | 21.0mm | 44.0mm | 16.3mm | 133.0mm | 59.8mm | 56.6mm | 22.2mm | 33.4mm | M16 | 43.34 kN | 29.40 kN | UE 211 | FT 211 | 2.8 kg |
| UEFT211-35 | 2-3/16" | 8.50" | 7.250" | 1.00" | 0.83" | 1.75" | 0.64" | 5.25" | 2.34" | 2.2283" | 0.8740" | 1.315" | 9/16" | 9,743 LBS | 6,608 LBS | UE 211-35 | FT 211 | 6.2 LBS |
| UEFT212-36 | 2-1/4" | 9.84" | 7.938" | 1.13" | 0.71" | 1.88" | 0.91" | 5.50" | 2.75" | 2.6220" | 1.0000" | 1.563" | 3/4" | 10,720 LBS | 7,516 LBS | UE 212-36 | FT 212 | 9.5 LBS |
| UEFT212 | 60mm | 250.0mm | 201.6mm | 29.0mm | 18.0mm | 48.0mm | 23.0mm | 140.0mm | 70.2mm | 66.6mm | 25.4mm | 39.7mm | M20 | 47.69 kN | 33.43 kN | UE 212 | FT 212 | 4.3 kg |
| UEFT212-38 | 2-3/8" | 9.84" | 7.938" | 1.13" | 0.71" | 1.88" | 0.91" | 5.50" | 2.75" | 2.6220" | 1.0000" | 1.563" | 3/4" | 10,720 LBS | 7,516 LBS | UE 212-38 | FT 212 | 9.5 LBS |
| UEFT212-2-7/16" | 2-7/16" | 9.84" | 7.938" | 1.13" | 0.71" | 1.88" | 0.91" | 5.50" | 2.75" | 2.6220" | 1.0000" | 1.563" | 3/4" | 10,720 LBS | 7,516 LBS | UE 212-39 | FT 212 | 9.5 LBS |
