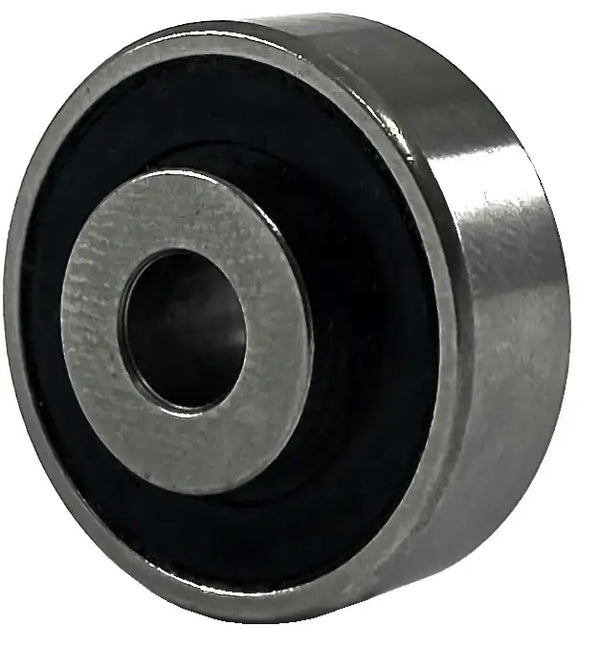

WC88000 Series Ball Bearings

WC88000 bearings are manufactured with a seal on both sides and range in bore sizes from 5 millimeters up to 55 millimeters. These bearings are found in many industrial and agricultural applications including electric motor shops. They are also commonly referred to as felt series bearings because manufacturing standards use to use felt seals, however, the industry-standard now is to use rubber seals. More specific to WC88000 bearings they have an extended inner race on one side making them suitable for applications requiring an extended inner race. For additional information or to get a quote please contact our customer service team and we will be happy to assist you!

WC88000 Bearing Sizes


Bearing Size d (mm) d (Inch) D (mm) D (Inch) Outer Width (B1) Inner Width (B1) Dynamic Load Rating (LBS) Static Load Rating (LBS) Grease Limiting Speed (RPM)
WC88006 6 0.2362 24 0.9449 0.406 0.4970 747 317 13800
WC88007 7 0.2756 24 0.9449 0.406 0.4970 747 317 13800
WC88008 8 0.3150 24 0.9449 0.406 0.4970 747 317 13800
WC88009 9 0.3543 30 1.1811 0.500 0.6457 1047 465 10200
WC88011 11 0.4331 32 1.2598 0.500 0.6457 1375 626 9000
WC88013 13 0.5118 32 1.2598 0.500 0.6457 1375 626 9000
WC88014 14 0.5512 35 1.3780 0.500 0.6457 1525 747 7800
WC88016 16 0.6299 35 1.3780 0.500 0.6457 1525 747 7800
WC88026 26 1.0236 52 2.0472 0.625 0.6988 3150 1785 5340
WC88035 5 0.1969 19 0.7480 0.406 0.4970 524 198 13800
WC88036 6 0.2362 19 0.7480 0.406 0.4970 524 198 13800
WC88037 7 0.2756 22 0.8661 0.406 0.4970 740 306 13800
WC88038 8 0.3150 22 0.8661 0.406 0.4970 740 306 13800
WC88039 9 0.3543 26 1.0236 0.406 0.4970 1025 438 10200
WC88500 10 0.3937 30 1.1811 0.500 0.6457 1047 465 10200
WC88501 12 0.4724 32 1.2598 0.500 0.6457 1375 626 6000
WC88502 15 0.5906 35 1.3780 0.500 0.6457 1525 747 7800
WC88503 17 0.6693 40 1.5748 0.563 0.6536 2149 1075 7200
WC88603 17 0.6693 47 1.8504 0.630 0.7087 3050 1470 6600
WC88504 20 0.7874 47 1.8504 0.625 0.6988 2885 1494 6000
WC88604 20 0.7087 52 2.0472 0.748 0.9055 3600 1770 6000
WC88505 25 0.9843 52 2.0472 0.625 0.6988 3150 1785 5340
WC88506 30 1.1811 62 2.4409 0.787 0.9449 3363 2256 4380
WC88507 35 1.3780 72 2.8346 0.827 0.9843 2120 1330 3780
WC88508 40 1.5748 80 3.1496 0.945 1.0630 2960 1820 3360
WC88509 45 1.7717 85 3.3465 0.945 1.0630 3300 2050 3120
WC88510 50 1.9685 90 3.5433 1.024 1.1811 3560 2350 2820
WC88511 55 2.1654 100 3.9370 1.063 1.2205 4390 2970 2580
