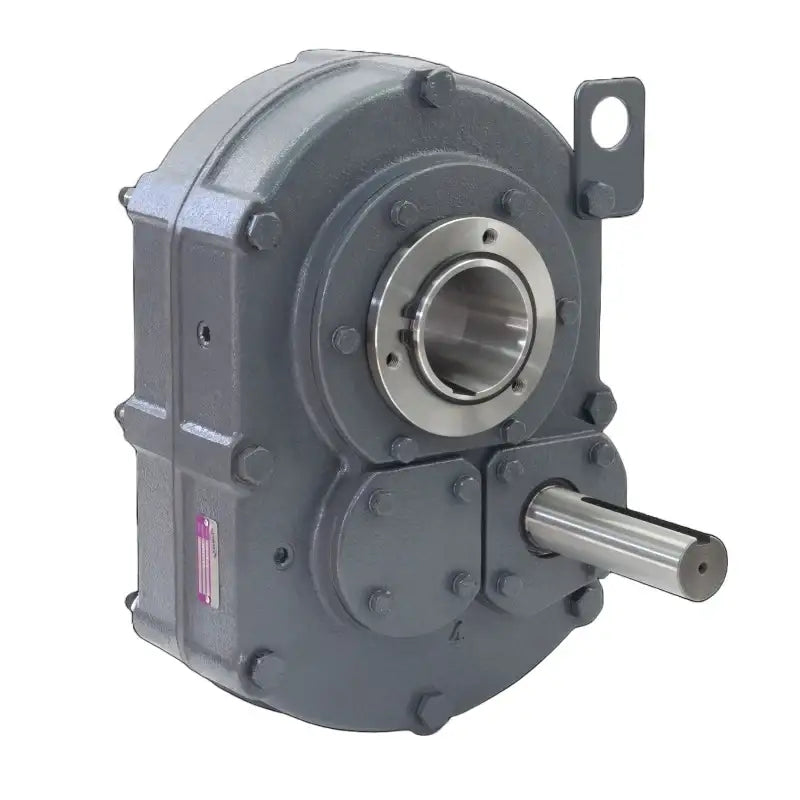

Equivalent TXT715 Reducer

drop in TXT715 Reducer

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: WWE-TXT715-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

Our premium reducer is a dimensional equivalent and drop in replacement to the TXT715 reducer and will meet all of your toughest applications needs. It will also work with all TXT715 accessories so you can still use your existing safety stock and installed base. We also have a full line of motor mounts, belt guards, tapered bushing kits, and back stops. We offer size 2 through size 10 shaft mount reducers directly from stock that interchange with the "major" competitors.

A few things that makes this gear box have great durability and high performance is the use of premium bearings, FCD45 cast iron housing, sealed shafts, and manufacturing the internal components out of high grade steel that has been case hardened and precision ground to A.G.M.A. standards.

This reducer also directly interchanges with the following other gear boxes: North American Electric NBS315-7-15, Hub City Power Torque PT7315S 15, Cleveland Gear CGSM7 15, Browning 315SMT15, Morse 315XM15, Dorris 315TR15, Falk 4315JR14, Link Belt 315FX15, Foote Jones 8315H15, Edison ED-715, Aurora DID-715, LMI DIR715, Vortex VXT715.

Reducer Dimensions:

Part #: SMR7-15
Ratio: 15:1
Box Size: 7
Dimension (L): 18.75"
Dimension (M): 25.94"
Dimension (N): 12.85"
Dimension (F): 2.4375"
Key: 0.625" X 0.312" X 4.75"
Maximum Dimension (B): 3-15/16"
Dimension (C): 2.06"
Dimension (E): 7.25"
Dimension (G): 3.75"
Dimension (W): 2.00"
Dimension (U): 2.75"
Dimension (X): 6.38"
Dimension (V): 4.69"
Dimension (Q): 6.35"
Dimension (Y): 2.50"
Dimension (H): 7.75"
Dimension (A1): 5.11"
Dimension (A2): 9.74"
Dimension (A3): 8.30"
Dimension (h): 9.38"
Minimum Dimension (R): 29.44"
Maximum Dimension (R): 35.44"
Dimension (P): 0.63"
Dimension (T): 4.75"
Gear Box Weight: 487 LBS

For additional information or load and mechanical ratings on our reducer drop in for TXT715, or to get pricing and availability. Please contact us and we will be happy to assist you.
