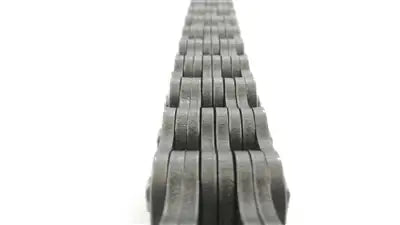

The LH2044 leaf chain stands out within ANSI and ISO dimensional standards, representing a robust 4x4 lacing leaf chain solution. Crafted for heavy-duty applications, the LH series exceeds load requirements compared to LL or AL series chains. What distinguishes our LH2044 chain is the utilization of top-tier carbon and alloy steel components, subject to specific heat treatments, precise tolerances, and factory pre-loading. This meticulous combination yields an LH2044 leaf chain that delivers exceptional performance and extended durability.
Highlighted by its inclusion of extra plates, the LH2044 chain boasts an impressive cost-to-breaking strength ratio. Moreover, this leaf chain seamlessly exchanges with counterparts from different brands and manufacturers.
For additional information or to request a quote for the LH2044 chain, feel free to contact our customer support team. We are dedicated to assisting you with your specific requirements!
LH2044 Chain Dimensions
- Chain Size: LH2044
- Lacing: 4X4
- Pitch (P): 31.75mm
- Pin Diameter (Dp): 11.10mm
- Plate Height (Hi): 29.60mm
- Plate Thickness (S): 4.70mm
- Pin Length (A1): 44.50mm
- Tensile Strength: 273.0 kN
- Weight: 6.80 Kg/m
- Chain Size: LH2044
- Lacing: 4X4
- Pitch (P): 31.75mm
- Pin Diameter (Dp): 11.10mm
- Plate Height (Hi): 29.60mm
- Plate Thickness (S): 4.70mm
- Pin Length (A1): 44.50mm
- Tensile Strength: 273.0 kN
- Weight: 6.80 Kg/m
