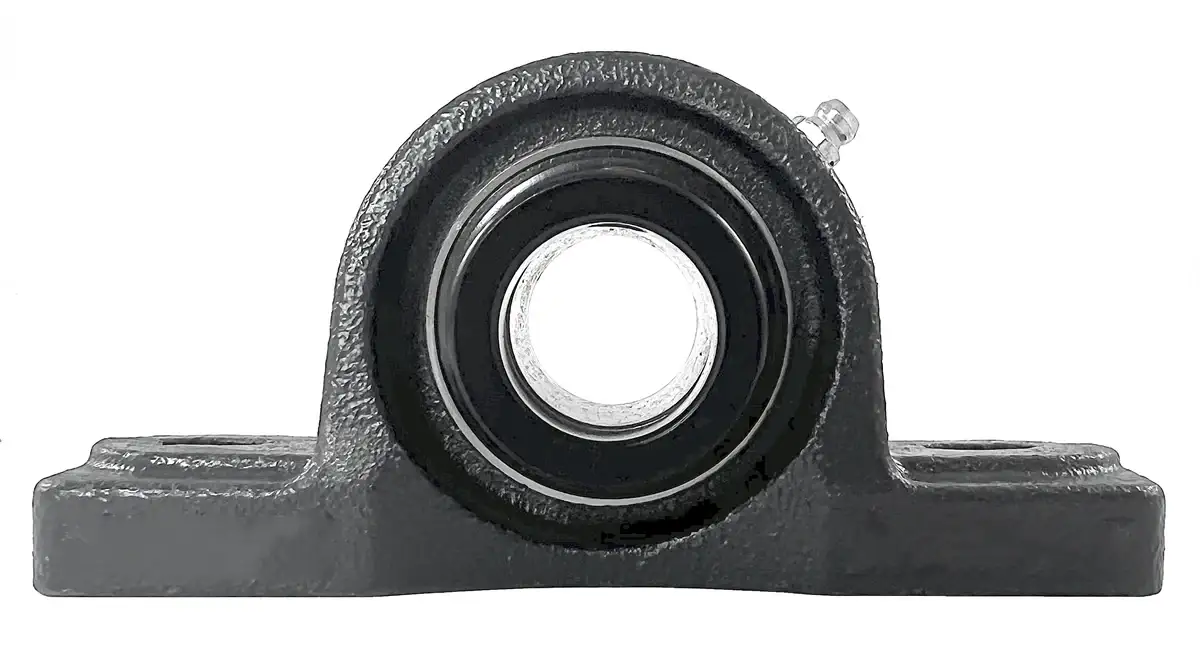

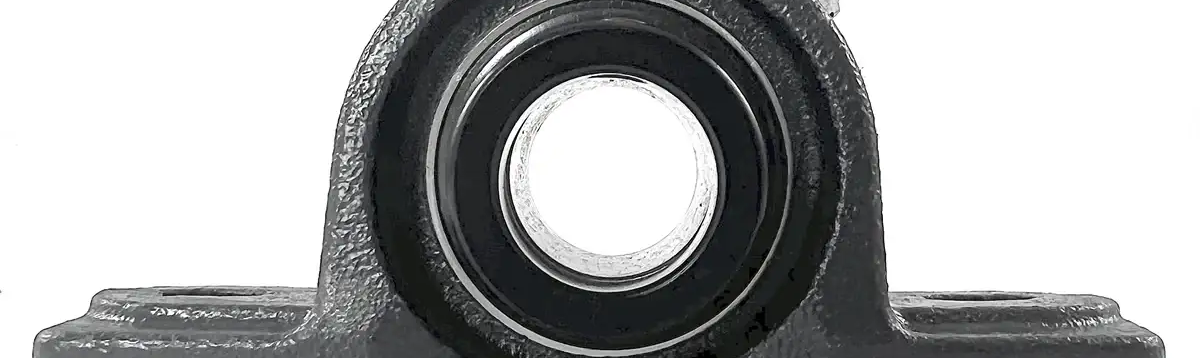

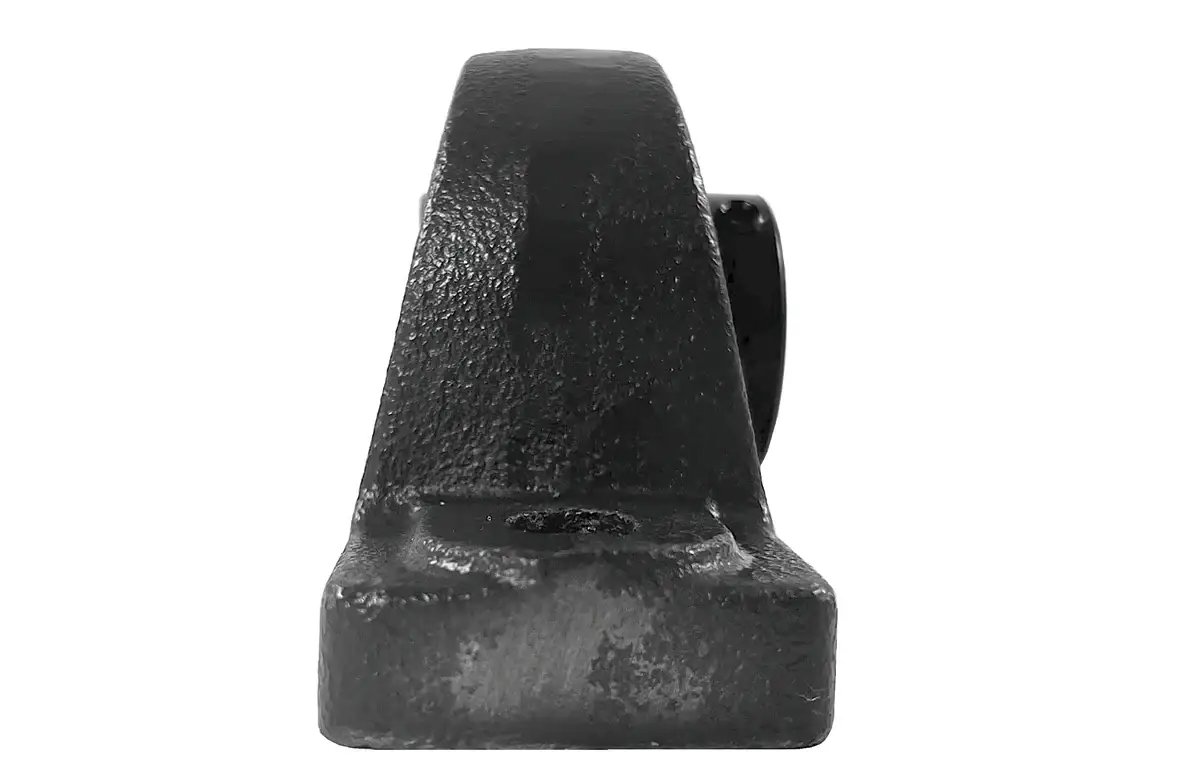

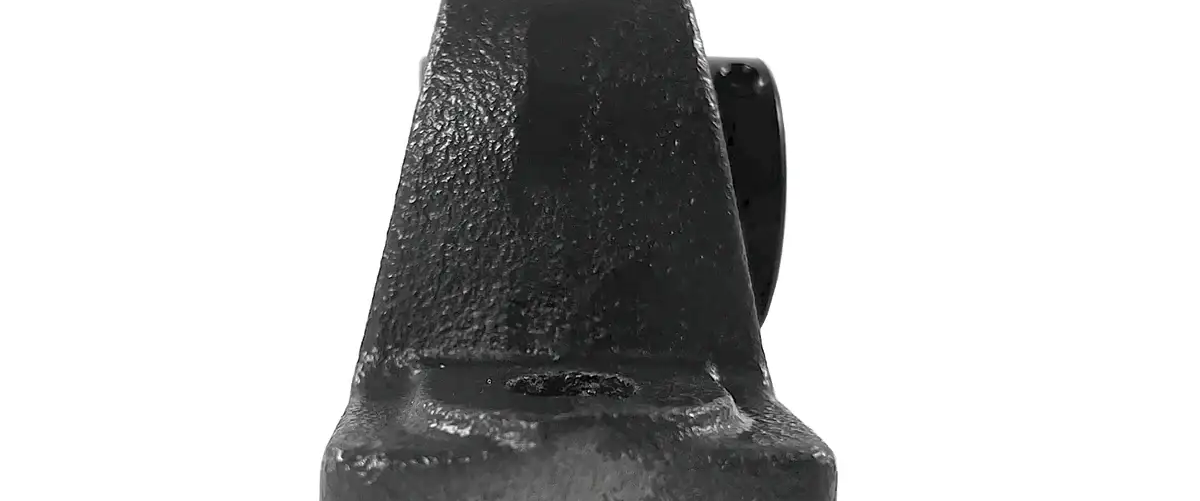

HCAK210-32 Bearing | 2" 2-Bolt Eccentric Locking Bearing

HCAK210-32 bearing is a two-bolt normal duty pillow block bearing with a 2" bore. It utilizes an eccentric locking collar for securing the beating to a 2" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK210-32 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK210-32 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK210-32 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK210-32 bearings, and we will be happy to assist you!

HCAK210-32 Bearing Dimensions

• Part #: HCAK 210-32
• Shaft Diameter (d): 2"
• Dimension (H): 2.188"
• Dimension (A): 8.00"
• Dimension (E): 6.25"
• Dimension (B): 2.25"
• Dimension (S2): 0.94"
• Dimension (S1): 0.79"
• Dimension (G): 0.88"
• Dimension (W): 4.44"
• Dimension (Bi): 2.4685"
• Dimension (N): 0.9685"
• Dimension (M): 0.9685"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: HC 210-32
• Housing Number: AK 210
• Weight (LBS): 6.6
