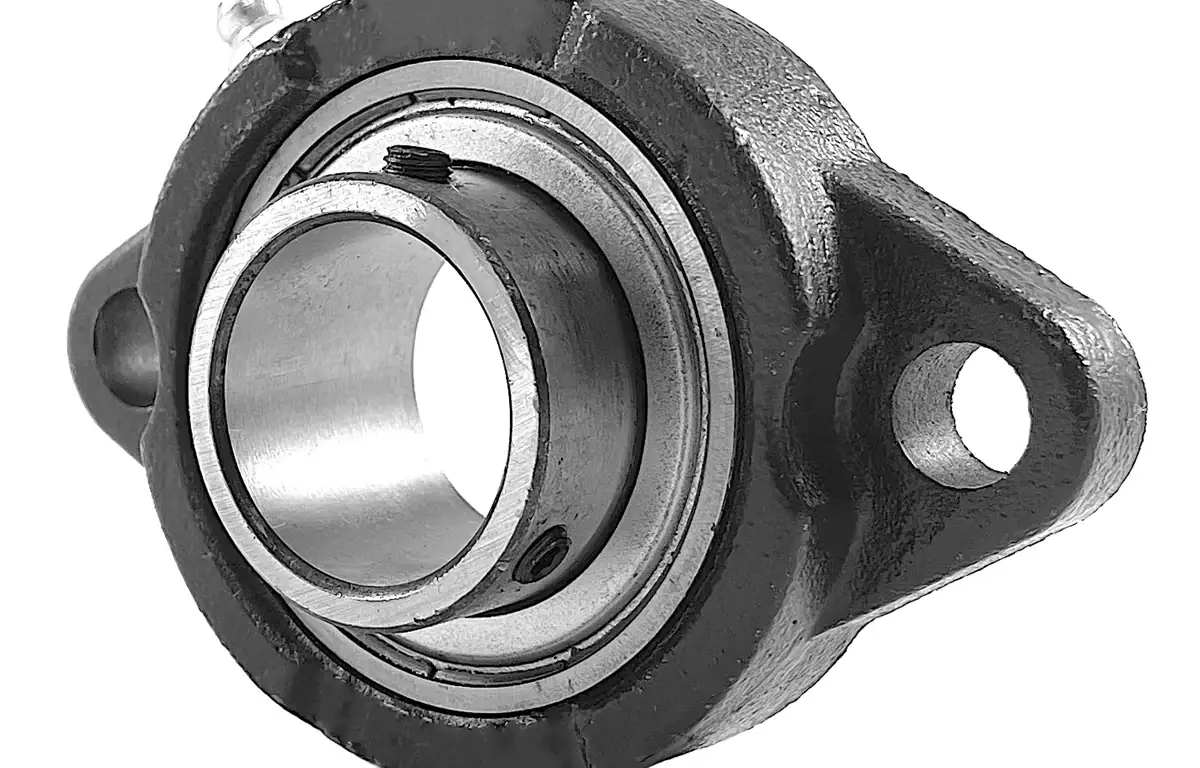

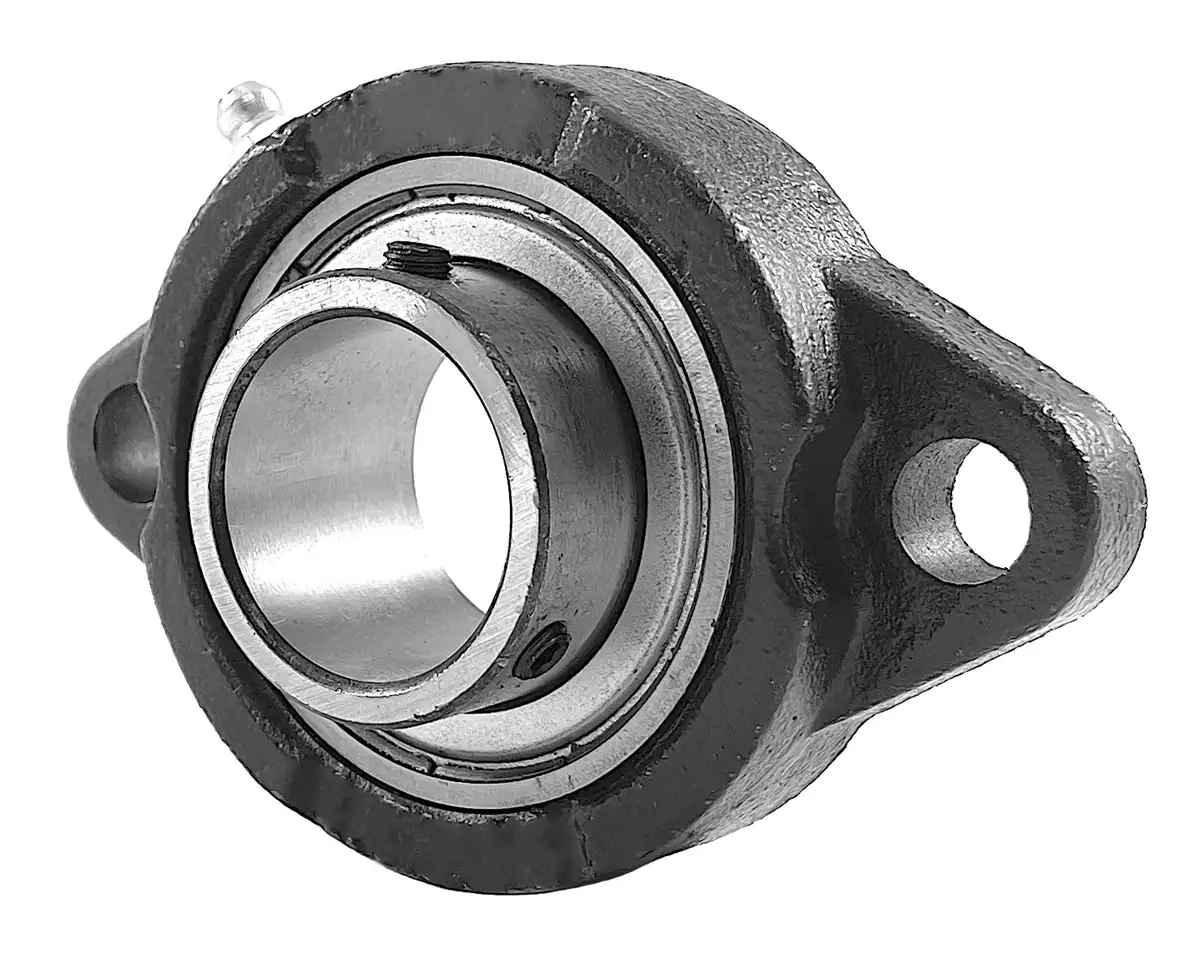

SBLF204 Bearing | 20mm 2-Bolt Flange Bearing

SBLF204 bearing is a 20mm bore two-bolt light-duty flange bearing that utilizes set screws to secure to a 20mm shaft. SBLF204 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SBLF204 bearing with a 20mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBLF204 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBLF204 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBLF204 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBLF204 bearings, and we will be happy to assist you!

SBLF204 Bearing Dimensions

• Part #: SBLF 204
• Shaft Diameter (d): 20mm
• Dimension (A): 90mm
• Dimension (E): 71.5mm
• Dimension (I): 11.0mm
• Dimension (G): 11.0mm
• Dimension (L): 20.0mm
• Dimension (S): 10.0mm
• Dimension (B): 61.0mm
• Dimension (Z): 29.0mm
• Dimension (Bi): 25.0mm
• Dimension (N): 7.0mm
• Dimension (M): 18.0mm
• Bolt Used: M8
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: SB 204
• Housing Number: LF 204
• Weight (kg): 0.5
