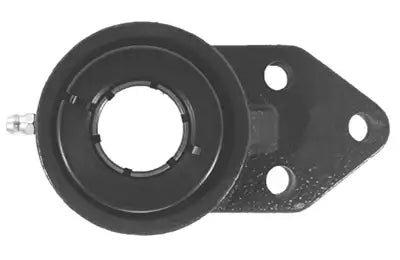

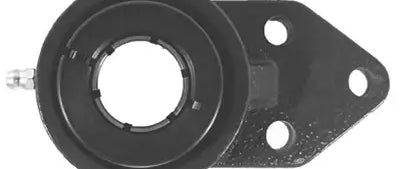

UEFB206-18 Bearing | 1-1/8" 3-Bolt Flange Bearing

UEFB206-18 bearing is a 1-1/8" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 1-1/8" shaft. UEFB206-18 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFB206-18 bearing with a 1-1/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFB206-18 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFB206-18 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFB206-18 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFB206-18 bearings, and we will be happy to assist you!

UEFB206-18 Bearing Dimensions

• Part #: UEFB 206-18
• Shaft Diameter (d): 1-1/8"
• Dimension (A): 5.12"
• Dimension (H): 1.97"
• Dimension (E): 1.58"
• Dimension (J): 1.14"
• Dimension (I): 0.71"
• Dimension (G): 0.51"
• Dimension (L): 1.22"
• Dimension (S): 0.39"
• Dimension (B): 3.11"
• Dimension (F): 2.56"
• Dimension (Z): 1.66"
• Dimension (Bi): 1.5669"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UE 206-18
• Housing Number: FB 206
• Weight (LBS): 2.2
