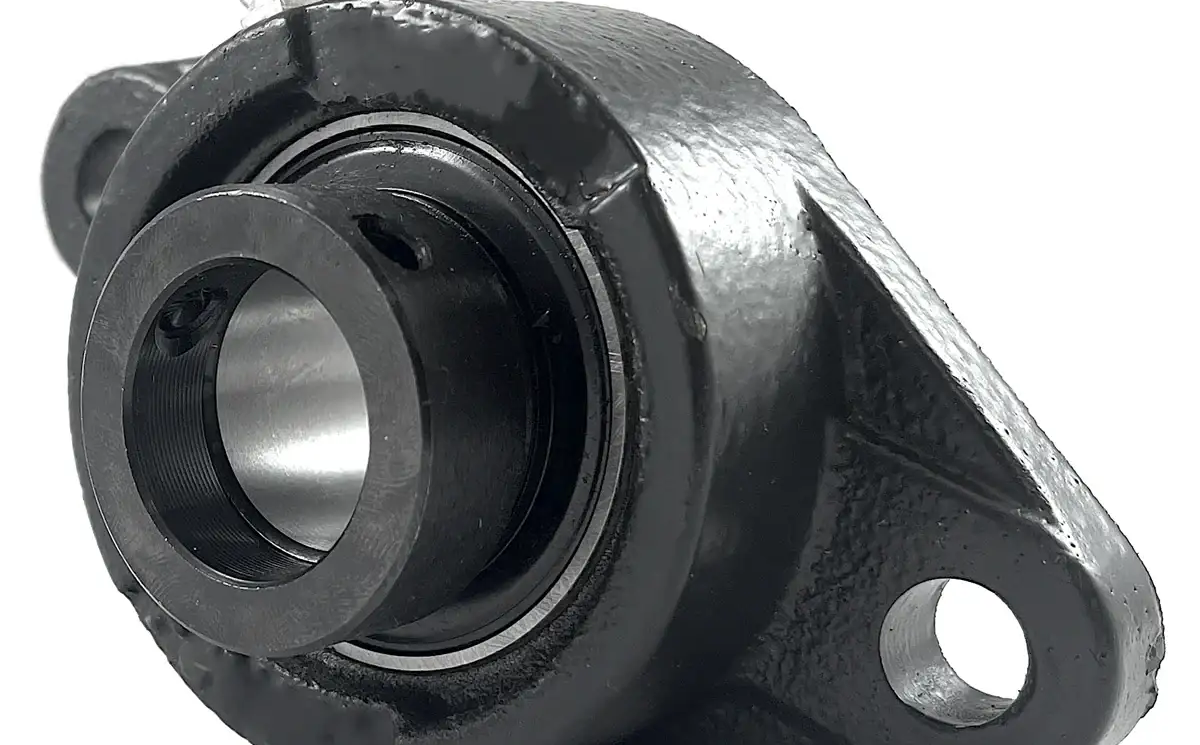

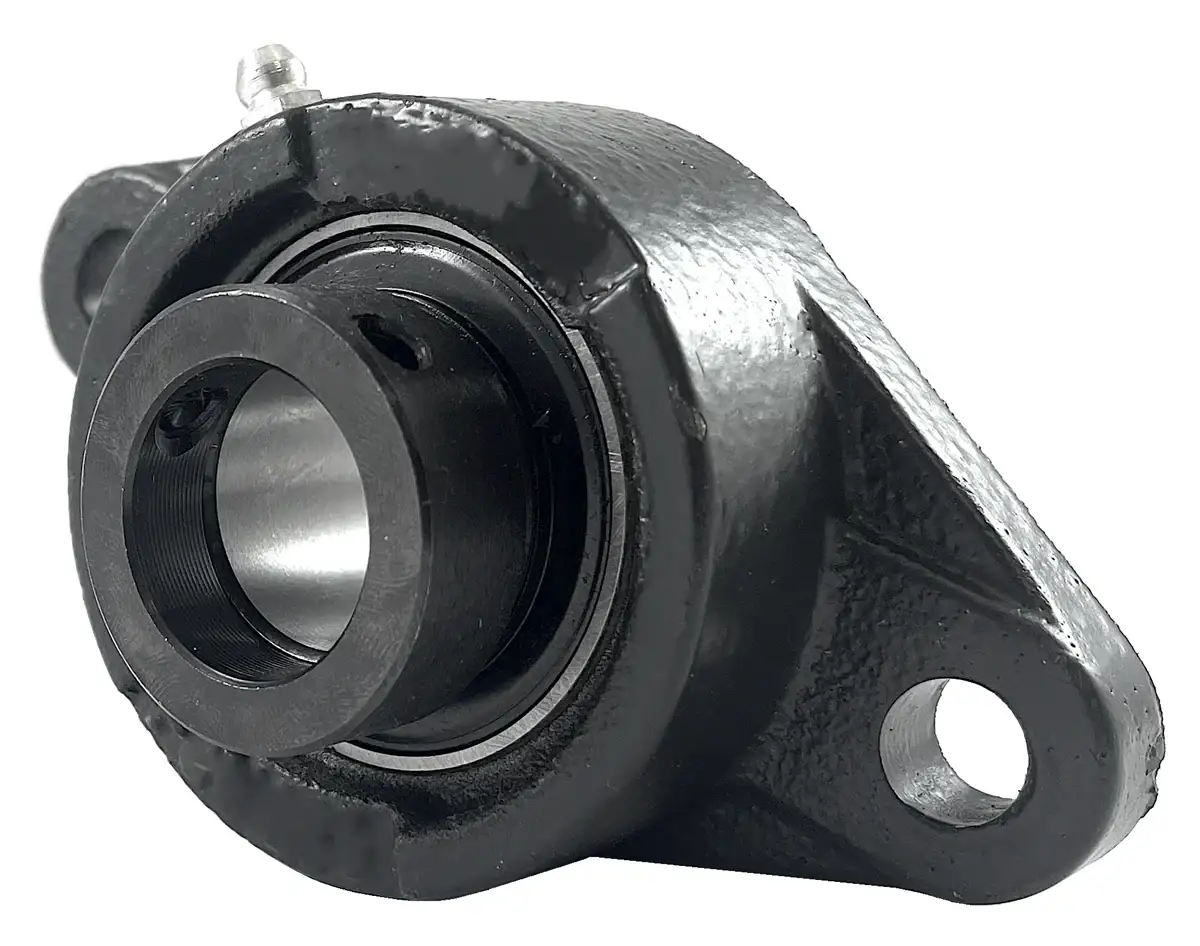

HCFJT212-38 Bearing | 2-3/8" 2-Bolt Eccentric Locking Bearing

HCFJT212-38 bearing is a 2-3/8" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 2-3/8" shaft. HCFJT212-38 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT212-38 bearing with a 2-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT212-38 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT212-38 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT212-38 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT212-38 bearings, and we will be happy to assist you!

HCFJT212-38 Bearing Dimensions

• Part #: HCFJT 212-38
• Shaft Diameter (d): 2-3/8"
• Dimension (A): 9.31"
• Dimension (E): 7.938"
• Dimension (I): 1.34"
• Dimension (G): 0.83"
• Dimension (L): 2.09"
• Dimension (S): 0.71"
• Dimension (B): 5.44"
• Dimension (Z): 3.19"
• Dimension (Bi): 3.0630"
• Dimension (N): 1.2205"
• Dimension (M): 1.2165"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516

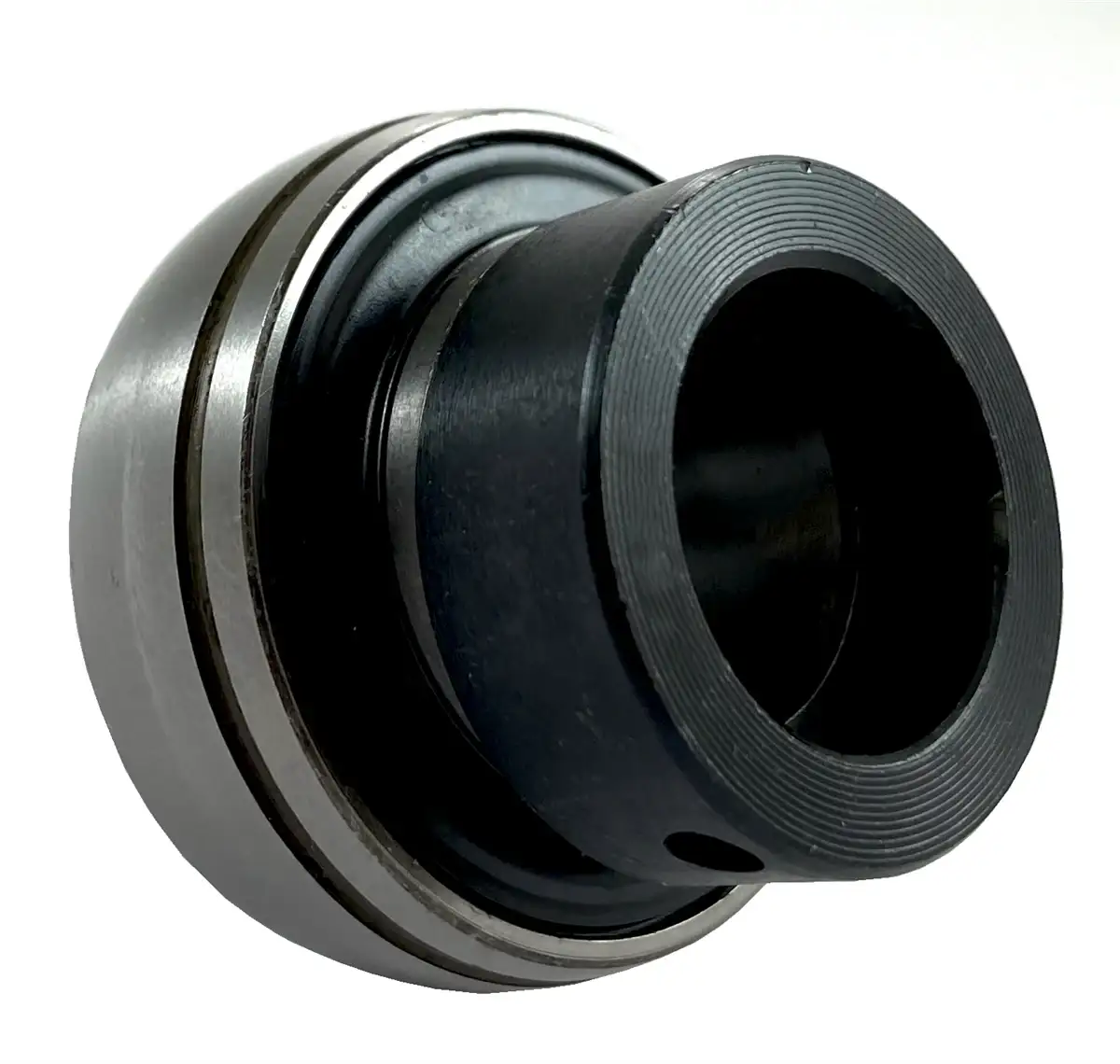

• Bearing Insert: HC 212-38
• Housing Number: FJT 212
• Weight (LBS): 10.6
