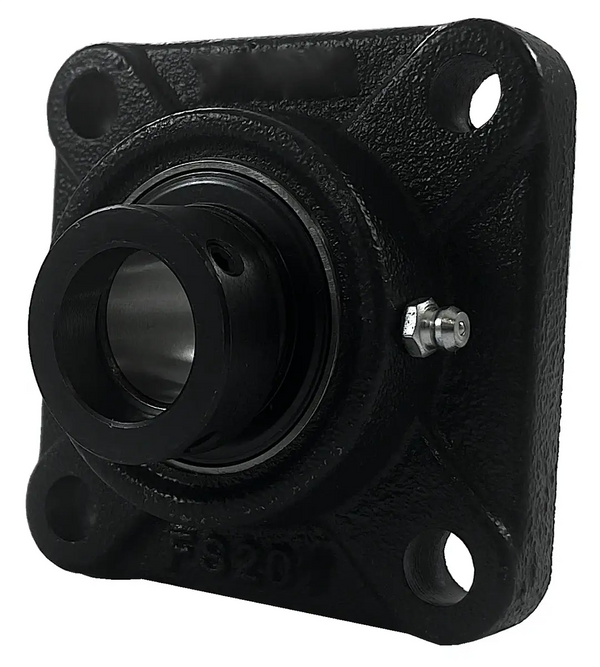

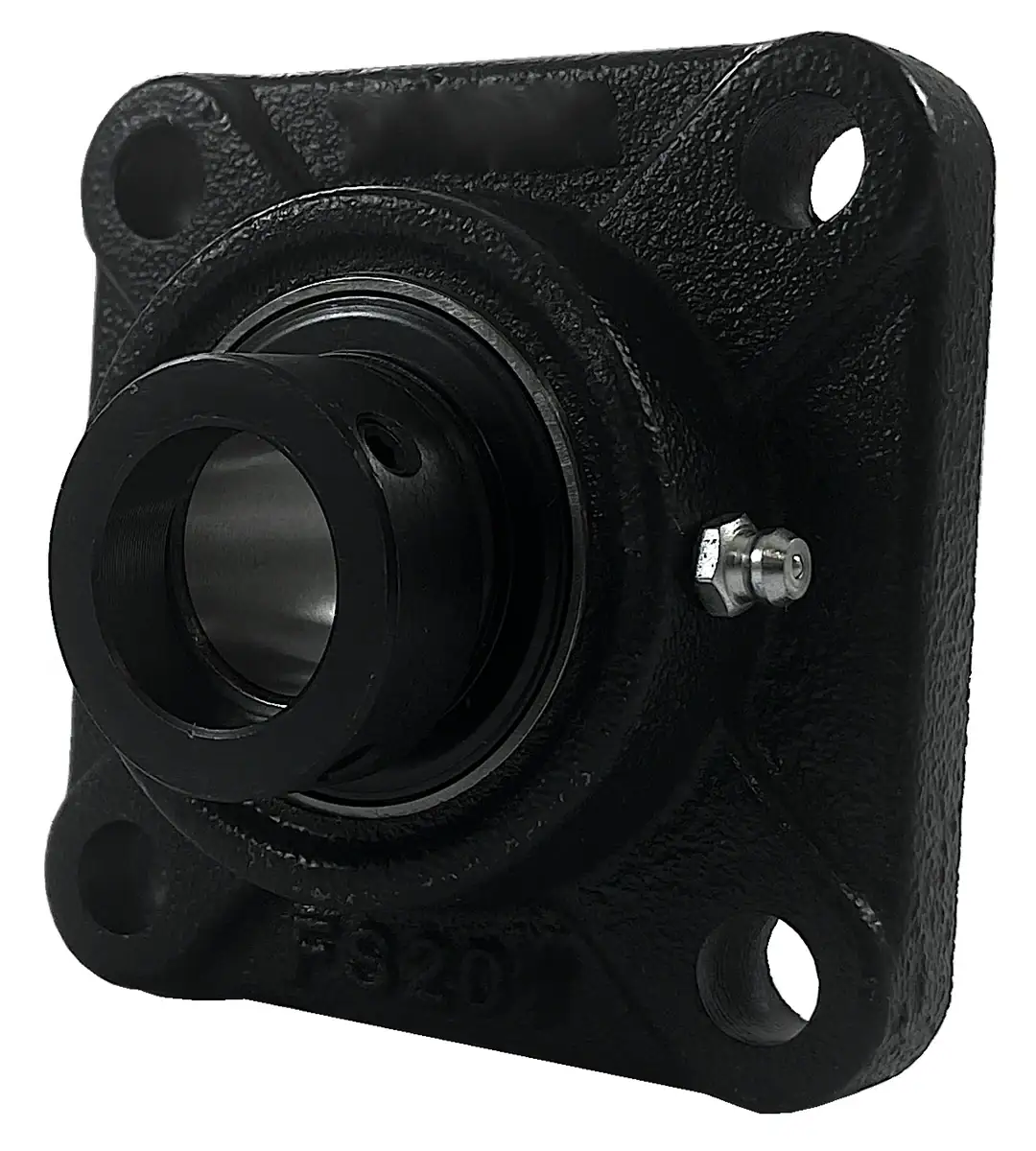

HCFS210-32 Bearing | 2" 4-Bolt Eccentric Locking Bearing

HCFS210-32 bearing is a 2" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 2" shaft. HCFS210-32 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS210-32 bearing with a 2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS210-32 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS210-32 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS210-32 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS210-32 bearings, and we will be happy to assist you!

HCFS210-32 Bearing Dimensions

• Part #: HCFS 210-32
• Shaft Diameter (d): 2"
• Dimension (A): 5.63"
• Dimension (E): 4.375"
• Dimension (I): 1.09"
• Dimension (G): 0.80"
• Dimension (L): 1.78"
• Dimension (S): 0.69"
• Dimension (Z): 2.60"
• Dimension (Bi): 2.4685"
• Dimension (N): 0.9685"
• Dimension (M): 0.9685"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: HC 210-32
• Housing Number: FS 210
• Weight (LBS): 6.4
