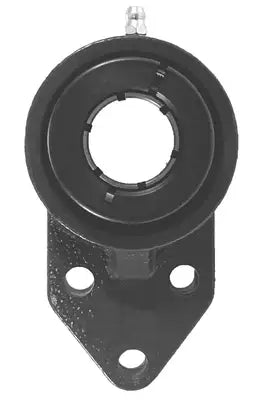

UEFBS208 Bearing | 40mm 3-Bolt Flange Bearing

UEFBS208 bearing is a 40mm bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 40mm shaft. UEFBS208 flange bearings are designed with an inch-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFBS208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFBS208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFBS208 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFBS208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFBS208 bearings, and we will be happy to assist you!

UEFBS208 Bearing Dimensions

• Part #: UEFBS 208
• Shaft Diameter (d): 40mm
• Dimension (A): 164.0mm
• Dimension (H): 60.3mm
• Dimension (E): 50.0mm
• Dimension (J): 41.0mm
• Dimension (I): 21.0mm
• Dimension (G): 16.0mm
• Dimension (L): 36.0mm
• Dimension (S): 11.9mm
• Dimension (B): 100.0mm
• Dimension (F): 78.0mm
• Dimension (Z): 52.2mm
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Bearing Insert: UE 208
• Housing Number: FBS 208
• Weight (kg): 1.8
