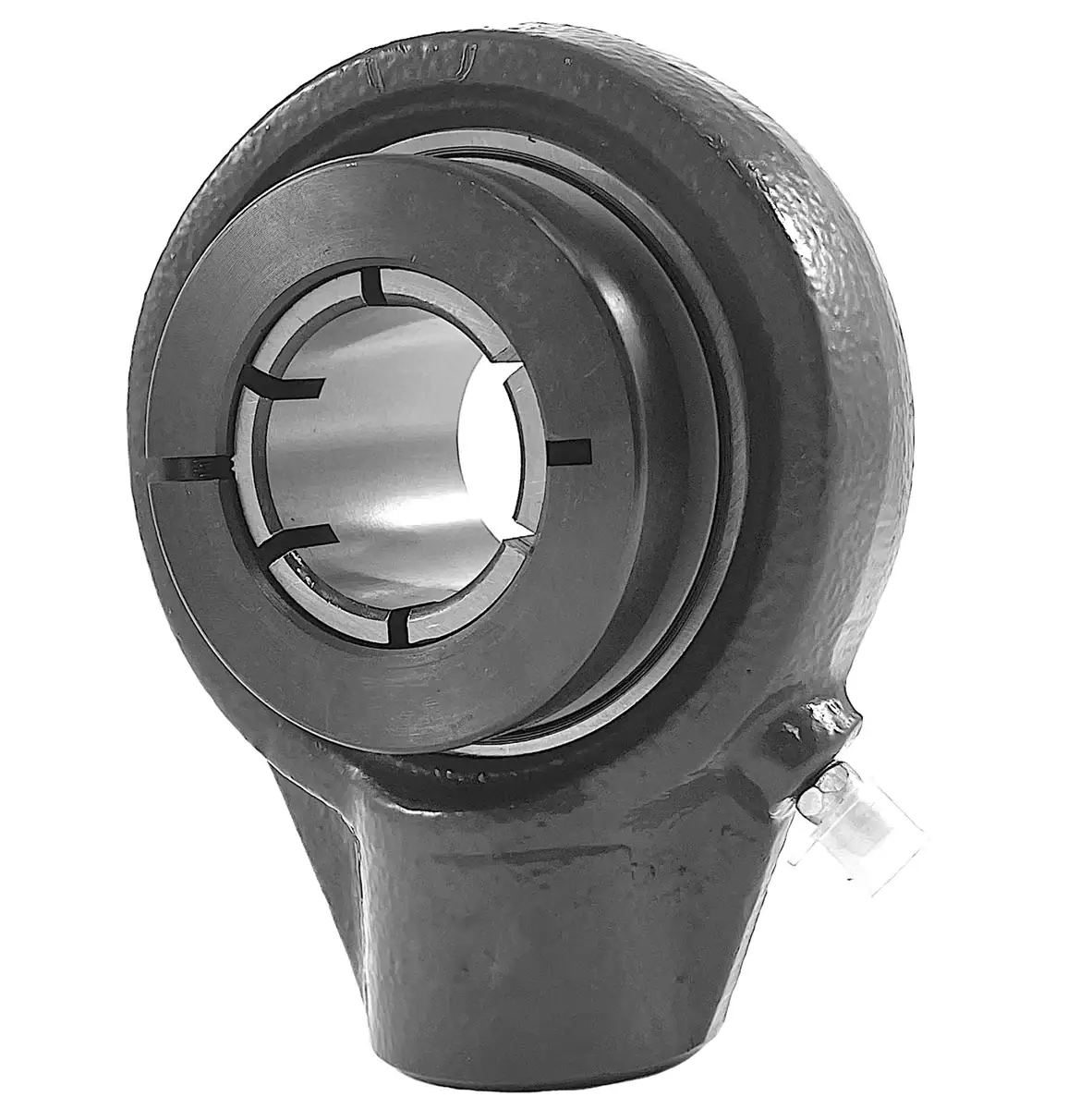

UEHA206 Bearing | 30mm Hanger Bearing

UEHA206 bearing is a 30mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 30mm shaft. UEHA206 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA206 bearing with a 30mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA206 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA206 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA206 bearings, and we will be happy to assist you!

UEHA206 Hanger Bearing Dimensions

• Part #: UEHA 206
• Shaft Diameter (d): 30mm
• Dimension (A): 78.0mm
• Dimension (W): 103.0mm
• Dimension (C): 0mm
• Dimension (H): 64.0mm
• Dimension (L): 40.0mm
• Dimension (D): 19.0mm
• Dimension (K): PF 3/4
• Dimension (Bi): 39.8mm
• Dimension (N): 15.9mm
• Dimension (M): 22.2mm
• Dynamic Load Rating (kN): 19.47
• Static Load Rating (kN): 11.43
• Bearing Insert: UE 206
• Housing Number: HA 206
• Weight (kg): 0.9
