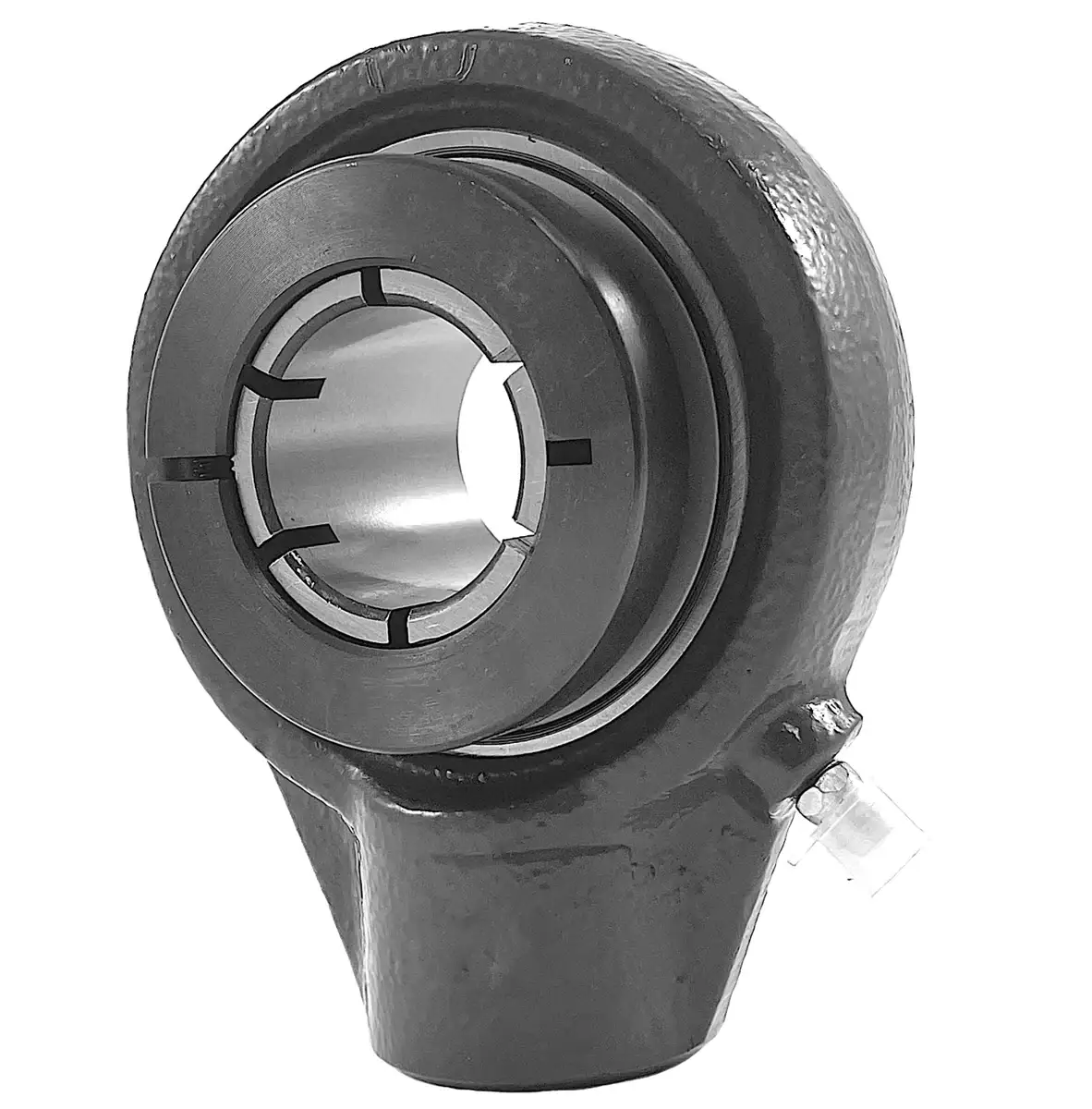

UEHA208 Bearing | 40mm Hanger Bearing

UEHA208 bearing is a 40mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 40mm shaft. UEHA208 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA208 bearings, and we will be happy to assist you!

UEHA208 Hanger Bearing Dimensions

• Part #: UEHA 208
• Shaft Diameter (d): 40mm
• Dimension (A): 100.0mm
• Dimension (W): 123.0mm
• Dimension (C): 2.0mm
• Dimension (H): 73.0mm
• Dimension (L): 40.0mm
• Dimension (D): 19.0mm
• Dimension (K): PF 3/4
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Bearing Insert: UE 208
• Housing Number: HA 208
• Weight (kg): 3.4
