By Application > Mining Chain & Sprockets > High-Strength Mining Round Link Chain
26X92 Round Link Chain | 92mm X 26mm Chain - Mining Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 26X92-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
26X92 Round Link Chain | 92mm X 26mm Chain - Mining Chain Features
26X92 Round Link Chain | 92mm X 26mm Chain - Mining Chain Specifications

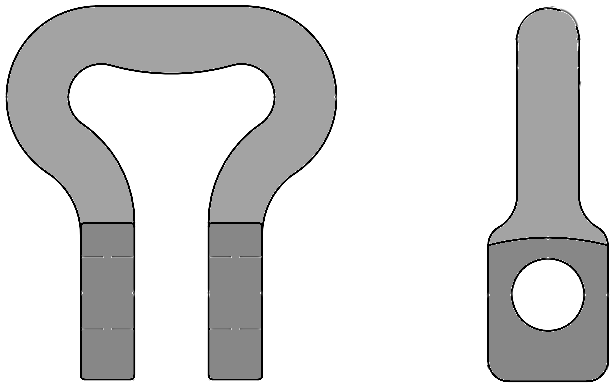

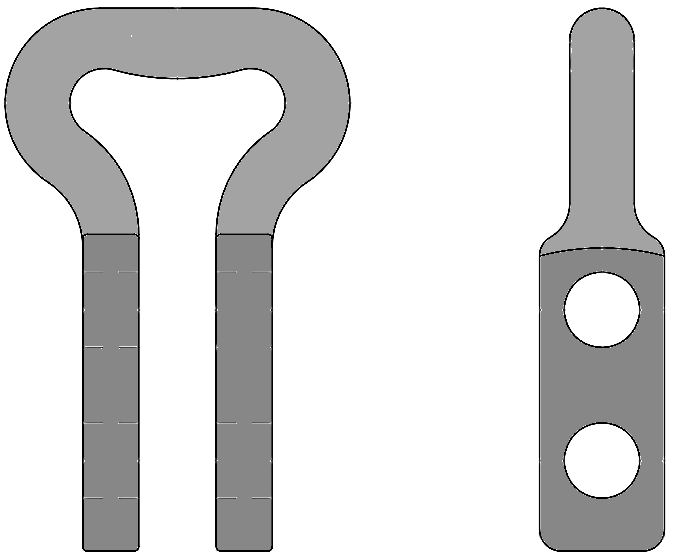

26X92 chain is a link chain used in mining, ash handling, cement production, and other heavy-duty applications. Link chains provide ample flexibility because of their highly versatile design and are high strength! Our 26X92 round link chain has a 92mm pitch and 26mm link bar circumference. Additionally, it is precision made from high-quality steel alloys and is built to exceed standards with superior dimensional consistency and interchangeability. We also supply a range of accessories for 26X92 round link chains like sprockets, master links, shackles, and mounting hardware. For additional information or a quote on the 26X92 link chain, contact our customer support team; we will be happy to assist you!
26X92 Chain Dimensions
- Chain Size: 26X92
- Pitch (P): 3.62"
- Dimension (D): 1.02"
- Dimension (B2): 3.35"
- Hardness: 40.00 RC
- Hardness: 375.00 BHN
- Minimum Units: 191,000 LBS
- Weight: 9.21 LBS/ FT
- Note 1: Dimensions are +/- 0.039"
- Note 2: Chain is Through-Hardened
- Chain Size: 26X92
- Pitch (P): 3.62"
- Dimension (D): 1.02"
- Dimension (B2): 3.35"
- Hardness: 40.00 RC
- Hardness: 375.00 BHN
- Minimum Units: 191,000 LBS
- Weight: 9.21 LBS/ FT
- Note 1: Dimensions are +/- 0.039"
- Note 2: Chain is Through-Hardened
