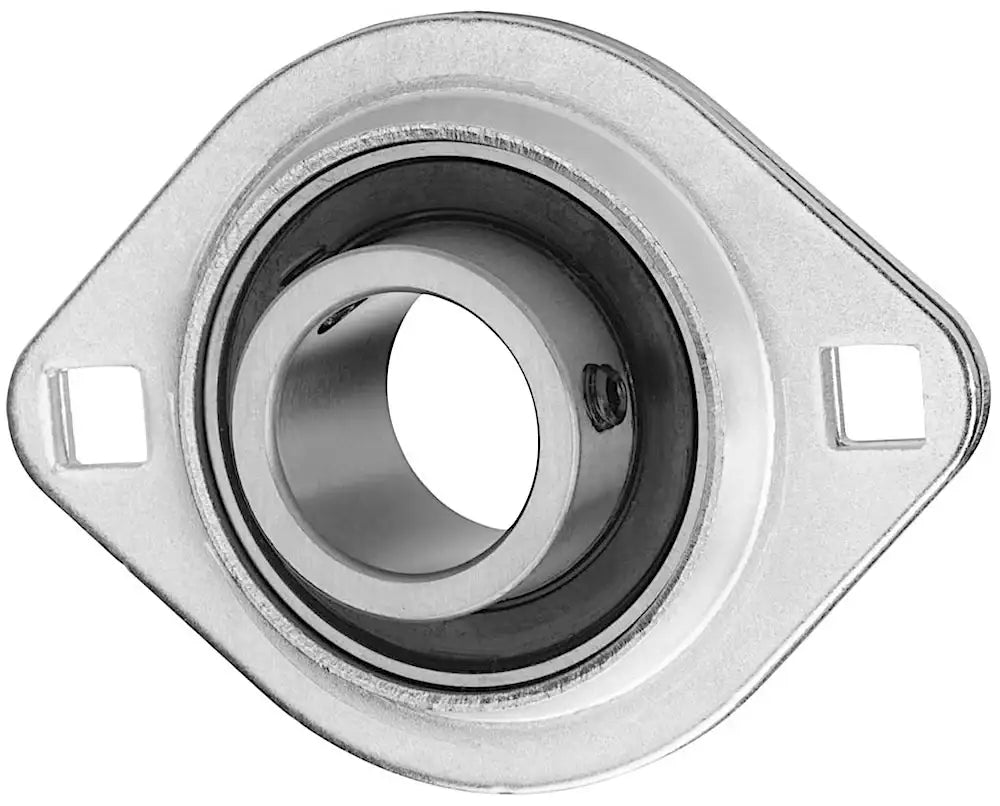

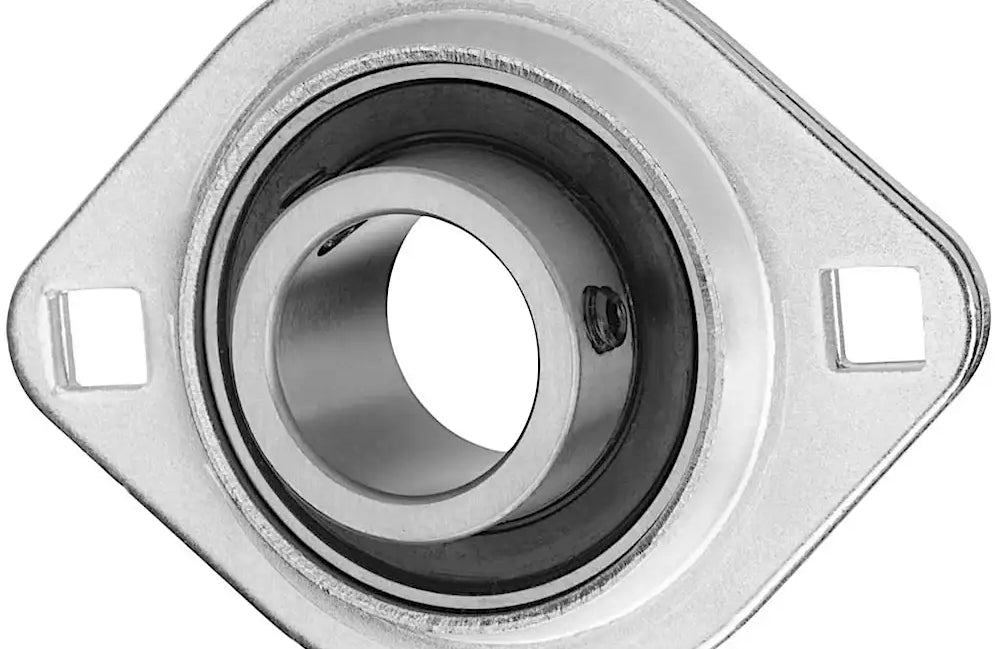

SAPFL205 Stamped Steel 2-Bolt Flange Bearing | 25mm Bearing

SAPFL205 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 25mm insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFL205 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SAPFL205 25mm bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SAPFL205 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFL205 bearing, contact our customer support team, and we will be happy to assist you!

SAPFL205 Bearing Dimensions

• Bearing Part #: SAPFL205
• Bearing I.D: 25mm
• Dimension (a): 3-3/4"
• Dimension (e): 2-63/64"
• Dimension (g): 3/32"
• Dimension (c): 21/32"
• Dimension (s): 11/32"
• Dimension (b): 2-51/64"
• Dimension (f): 2-3/8"
• Dimension (L): 1.220"
• Dimension (n): 0.295"
• Dimension (W): 1-1/2"
• Bolt Size: 5/16"
• Bearing Part #: SA205
• Housing Part #: PFL205
• Weight: 0.66 LBS
