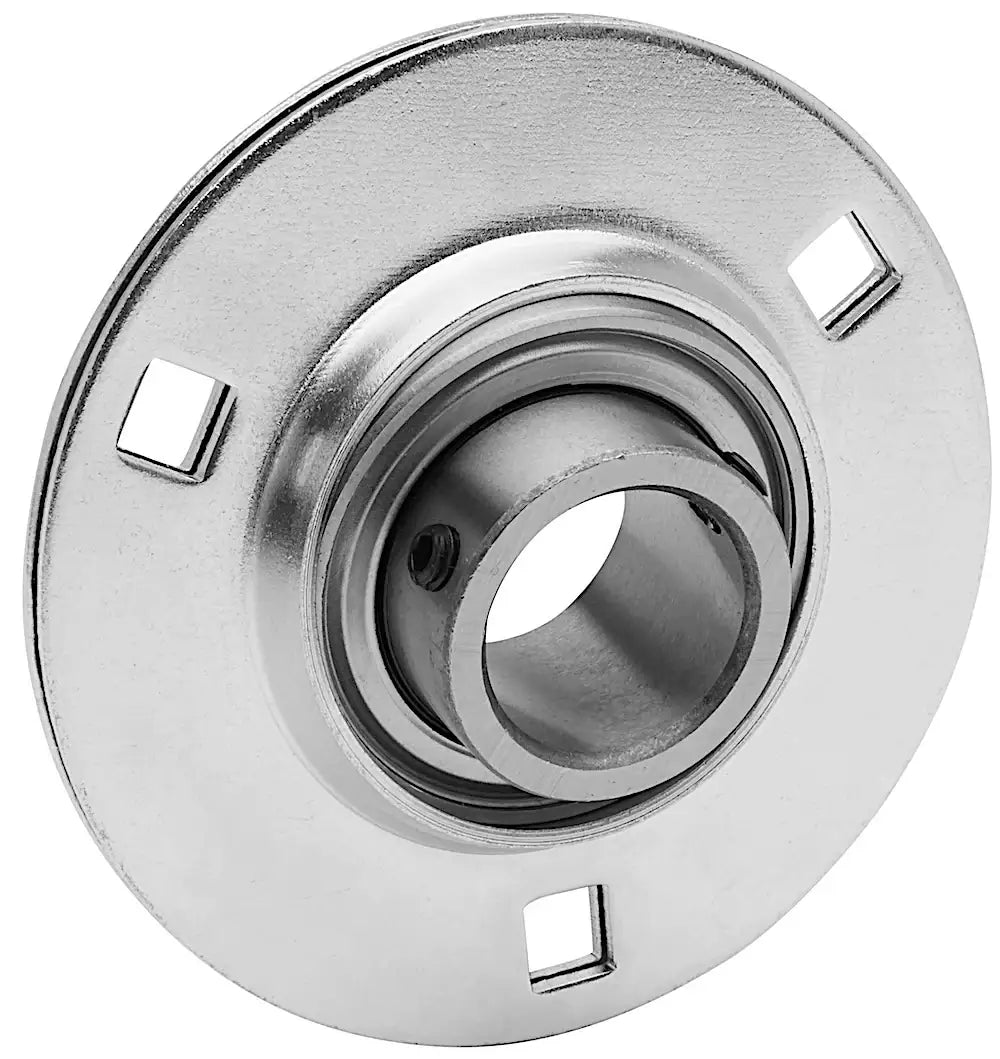

SBPF207-23G Stamped Steel 3-Bolt Flange Bearing | 1-7/16" Bearing

SBPF207-23G stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 1-7/16" insert bearing that utilizes set screws for securing onto a shaft. SBPF207-23G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPF207-23G 1-7/16" bearing has incredible holding power and stability. Additionally, our SBPF207-23G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF207-23G bearing, contact our customer support team, and we will be happy to assist you!

SBPF207-23G Bearing Dimensions

• Part #: SBPF207-23G
• Bearing ID: 1-7/16"
• Dimension (a): 4-13/16"
• Dimension (e): 3-15/16"
• Dimension (g): 7/64"
• Dimension (c): 3/4"
• Dimension (s): 13/32"
• Dimension (f): 3-3/16"
• Dimension (Bi): 1.260"
• Dimension (n): 0.335"
• Bolt Size: 3/8"
• Number of Bolt Holes: 3
• Insert Bearing #: SB207-23
• Housing #: PF207G
• Weight: 1.45 LBS
