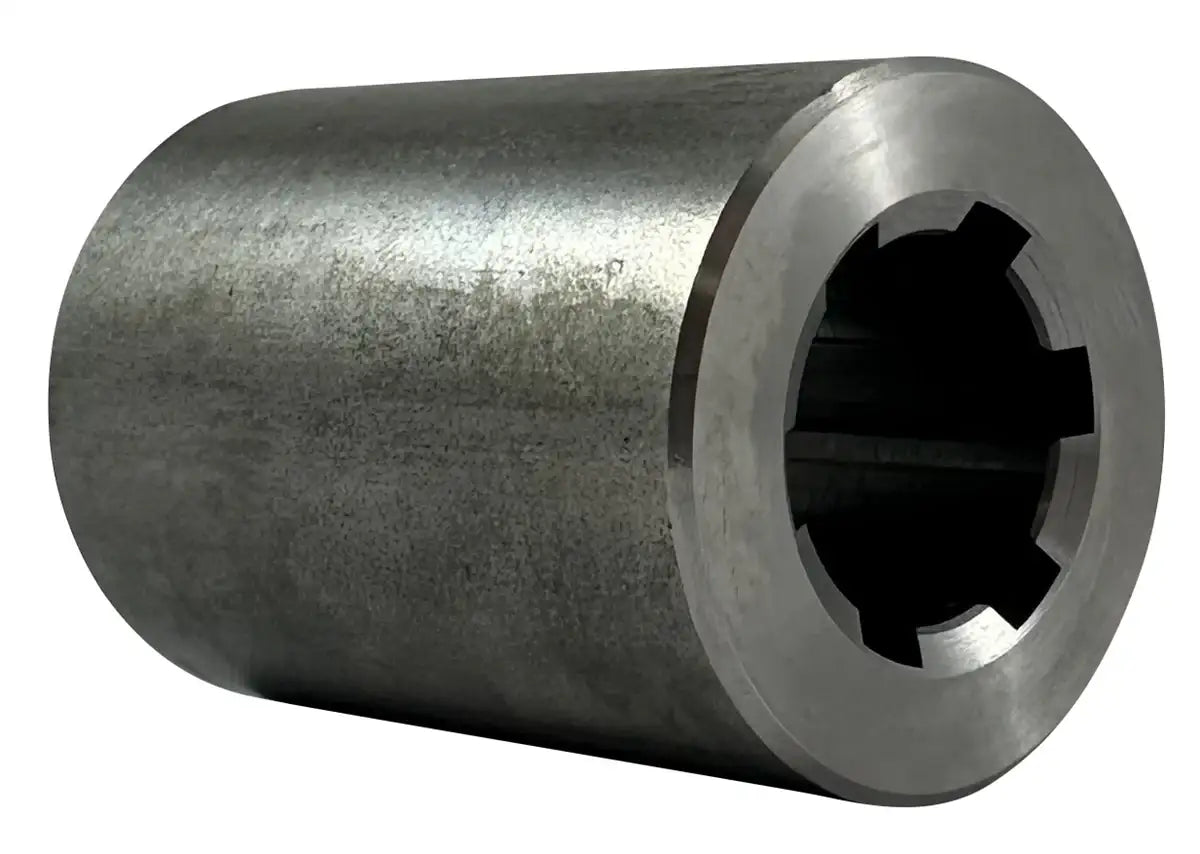

8 Spline Hub for 48mm Splined Shaft - C45 Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64831100-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
8 Spline Hub for 48mm Splined Shaft - C45 Steel Features
8 Spline Hub for 48mm Splined Shaft - C45 Steel Specifications
Our high-quality 48mm spline hub, featuring 8 splines, is precisely machined from durable C45 steel to ensure optimal torque transmission with precise accuracy. Built to meet DIN ISO 14 standards, this hub guarantees excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts or providing a mounting surface for components. For more details or to request a quote on our premium C45 steel 48mm splined shaft, please contact our customer service team, and we will be pleased to assist you!
48mm Splined Shaft Hub Dimensions
- Part Number: 64831100
- Material: C45 Steel
- Profile Description: 42 X 48
- Number of Keyways:
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A): 80mm
- Length: 70mm
- Weight: 1.88KG
- Part Number: 64831100
- Material: C45 Steel
- Profile Description: 42 X 48
- Number of Keyways:
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A): 80mm
- Length: 70mm
- Weight: 1.88KG
