Power Transmission > Shafting > Precision Metric Spline Shaft ISO DIN 14 Standards

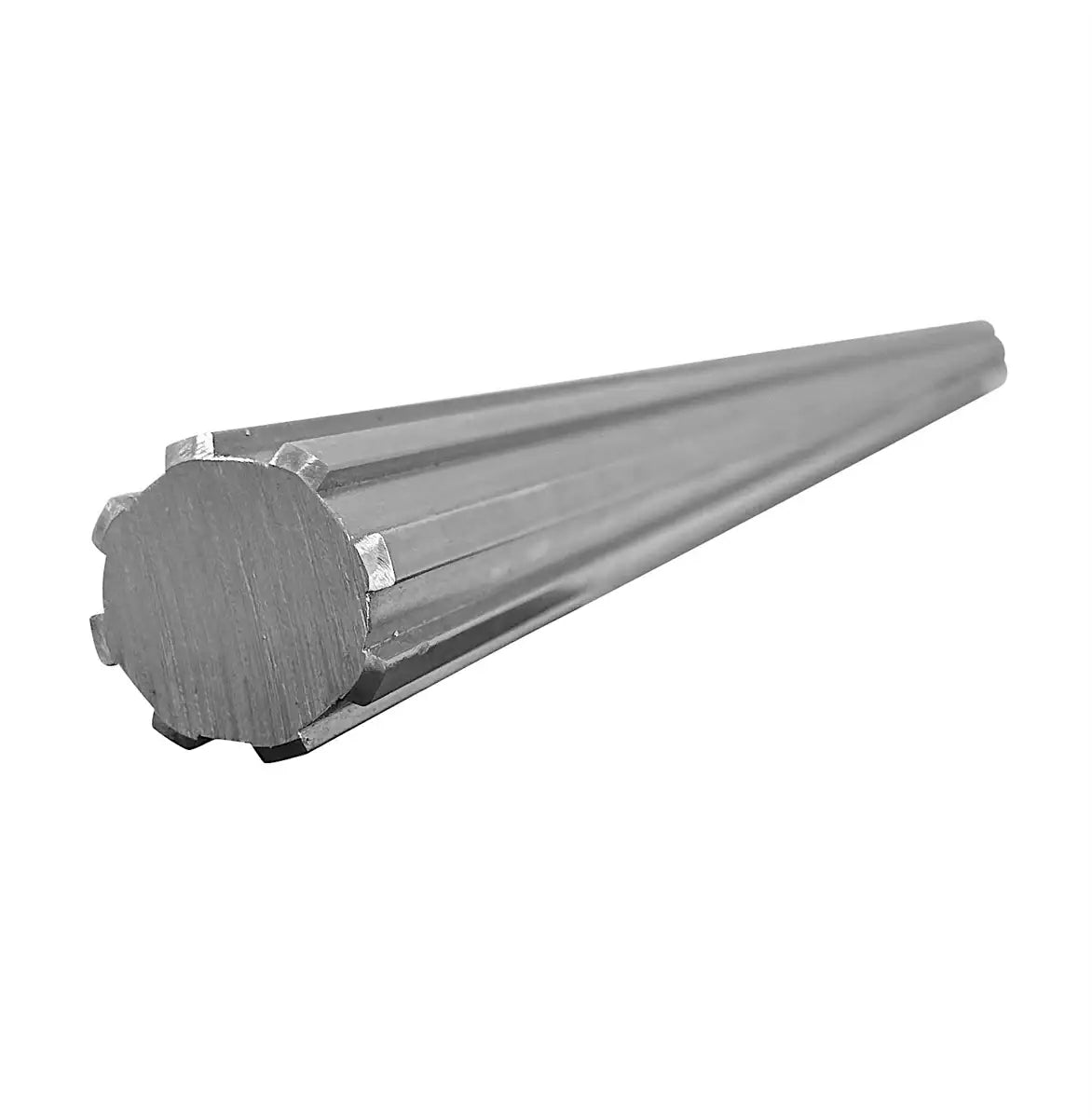

48mm Spline Shaft 8-Splines C45 Material - 1000mm
Note:
Custom Cut to Length Chain Also Available
SKU: 64841000-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
48mm Spline Shaft 8-Splines C45 Material - 1000mm Features
48mm Spline Shaft 8-Splines C45 Material - 1000mm Specifications
Our 48mm spline shaft with 8 splines is meticulously crafted from high-quality C45 steel and comes pre-cut at a 1000mm length. This precision-manufactured 48mm spline shaft, following DIN ISO 14 Standards, ensures reliable torque transmission and perfect alignment, ideal for demanding applications like industrial systems, agricultural machinery, and drive shafts. We also provide complementary parts like spline hubs, collars, and clamps to accompany your 48mm spline shaft. For additional information or a quote on our precision C45 steel 48mm spline shaft with 8 splines in a 1000mm length, contact our customer service team, and we will gladly assist you!
48mm Spline Shaft With 8-Splines Dimensions
- Shaft Diameter (D): 48mm
- Amount of Splines: 8
- Dimension (d): 42mm
- Dimension (b): 8mm
- Length: 1000mm
- Material: C45
- Weight: 12.37 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
- Shaft Diameter (D): 48mm
- Amount of Splines: 8
- Dimension (d): 42mm
- Dimension (b): 8mm
- Length: 1000mm
- Material: C45
- Weight: 12.37 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
