Power Transmission > Miscellaneous Items > Precision Splined Hubs per DIN ISO 14

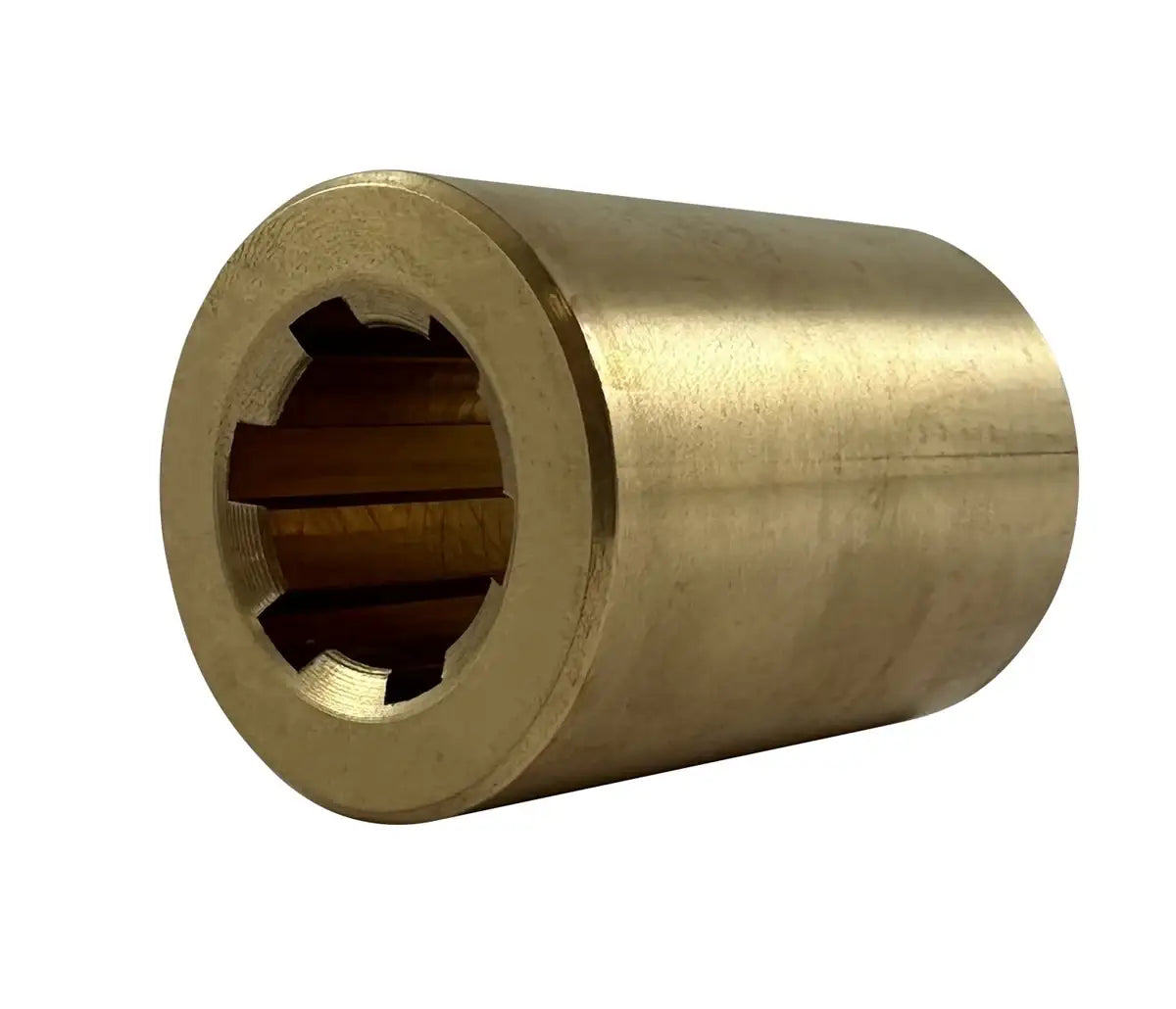

6 Spline Hub for 32mm Splined Shaft - Brass

Note: Custom Cut to Length Chain Also Available
SKU: 64835700-HUB
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714734063983" , "metafield_value":""}]
6 Spline Hub for 32mm Splined Shaft - Brass Features
6 Spline Hub for 32mm Splined Shaft - Brass Specifications
Our high-grade 32mm spline hub, with 6 splines, is expertly machined from premium red brass, providing excellent resistance to corrosion and a wide operating temperature range. Built to DIN ISO 14 standards, this 6-spline hub for 32mm splined shafts ensures superb fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts or offering a mounting surface. For more information or to request a quote on our premium brass 32mm splined shaft, please contact our customer service team, and we will be happy to assist you!

32mm Splined Shaft Hub Dimensions

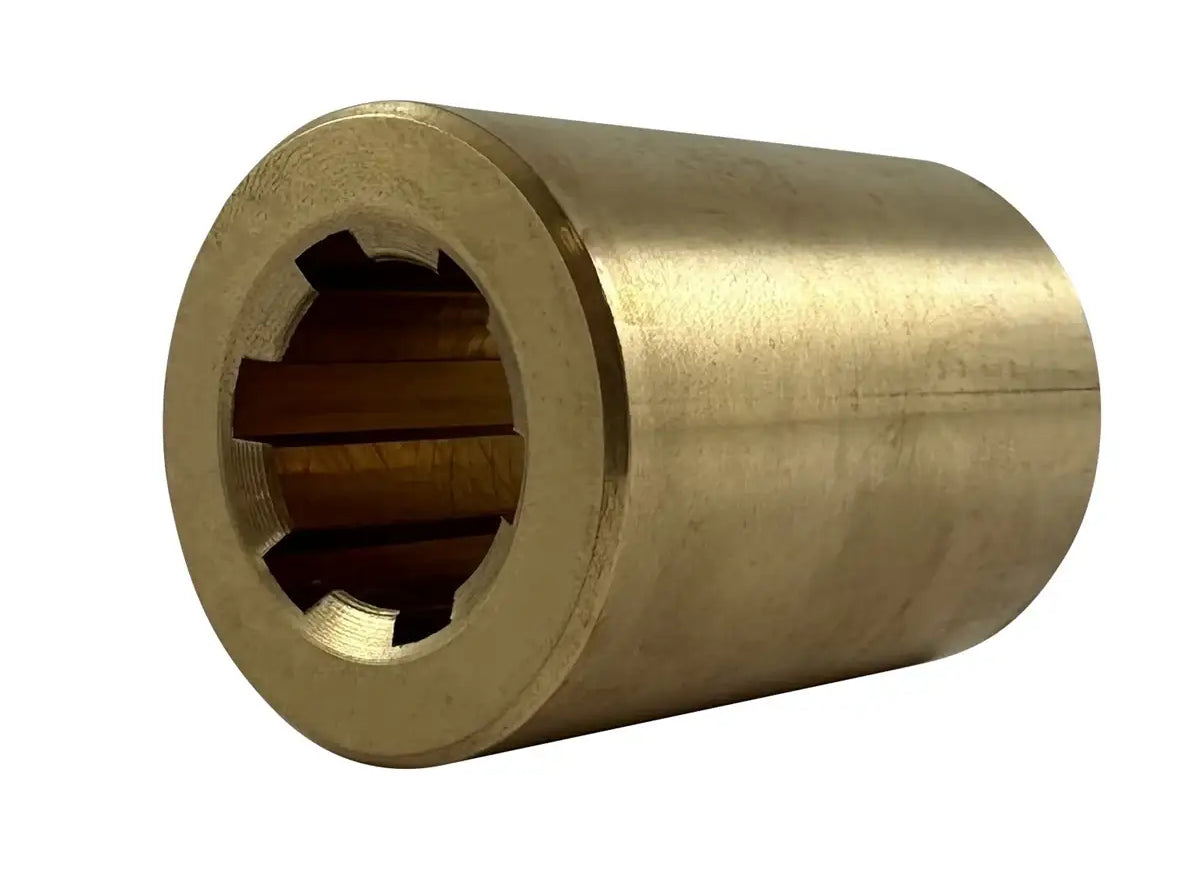

6 Spline Hub for 32mm Splined Shaft - Brass
  • Part Number: 64835700
  • Material: Red Brass
  • Profile Description: 26 X 32
  • Number of Keyways: 6
  • Dimension (D): 32mm
  • Dimension (d): 26mm
  • Dimension (b): 6mm
  • Dimension (A): 52mm
  • Length: 60mm
  • Weight: 0.78KG

  • Part Number: 64835700
  • Material: Red Brass
  • Profile Description: 26 X 32
  • Number of Keyways: 6
  • Dimension (D): 32mm
  • Dimension (d): 26mm
  • Dimension (b): 6mm
  • Dimension (A): 52mm
  • Length: 60mm
  • Weight: 0.78KG
