Power Transmission > Miscellaneous Items > Precision Splined Hubs per DIN ISO 14

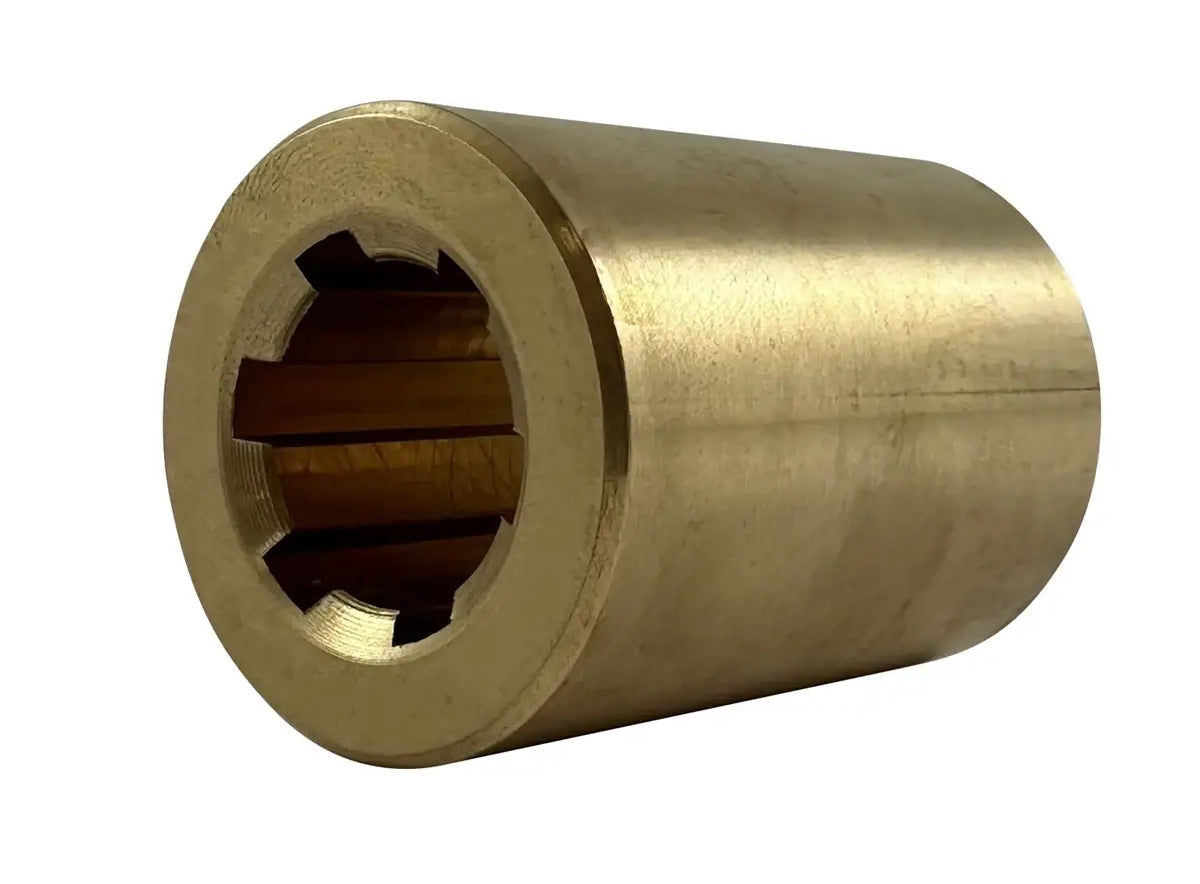

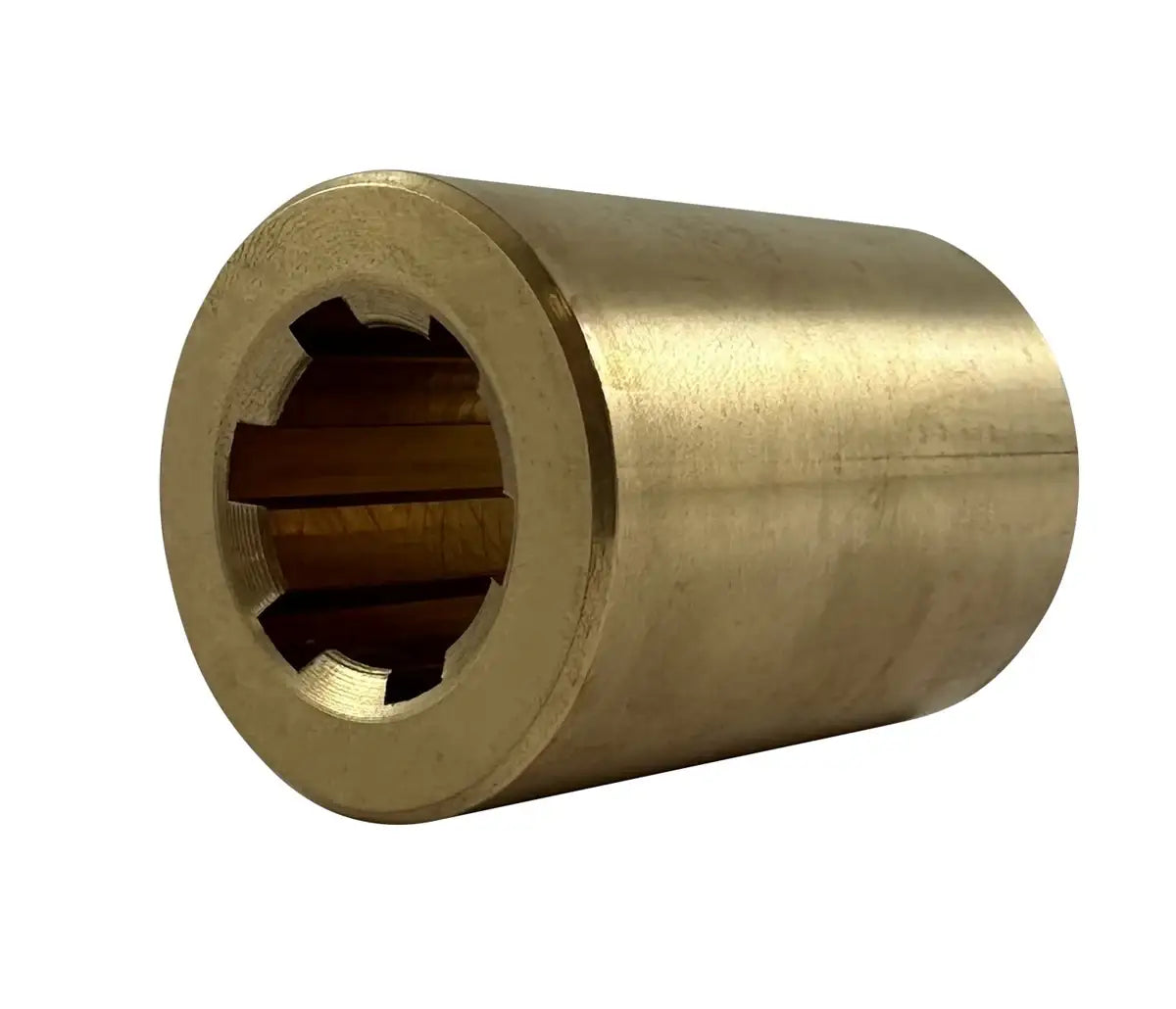

8 Spline Hub for 48mm Splined Shaft - Brass
Note:
Custom Cut to Length Chain Also Available
SKU: 64836100-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
8 Spline Hub for 48mm Splined Shaft - Brass Features
8 Spline Hub for 48mm Splined Shaft - Brass Specifications
Our high-grade 48mm spline hub, featuring 8 splines, is precision-machined from premium red brass, ensuring excellent resistance to corrosion and a broad operating temperature range. Crafted to DIN ISO 14 standards, this 8-spline hub for 48mm splined shafts guarantees superb fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts or providing a mounting surface. For more information or to request a quote on our premium brass 48mm splined shaft, please contact our customer service team, and we will be happy to assist you!
48mm Splined Shaft Hub Dimensions
- Part Number: 64836100
- Material: Red Brass
- Profile Description: 42 X 48
- Number of Keyways: 8
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A): 80mm
- Length: 70mm
- Weight: 2.16KG
- Part Number: 64836100
- Material: Red Brass
- Profile Description: 42 X 48
- Number of Keyways: 8
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A): 80mm
- Length: 70mm
- Weight: 2.16KG
