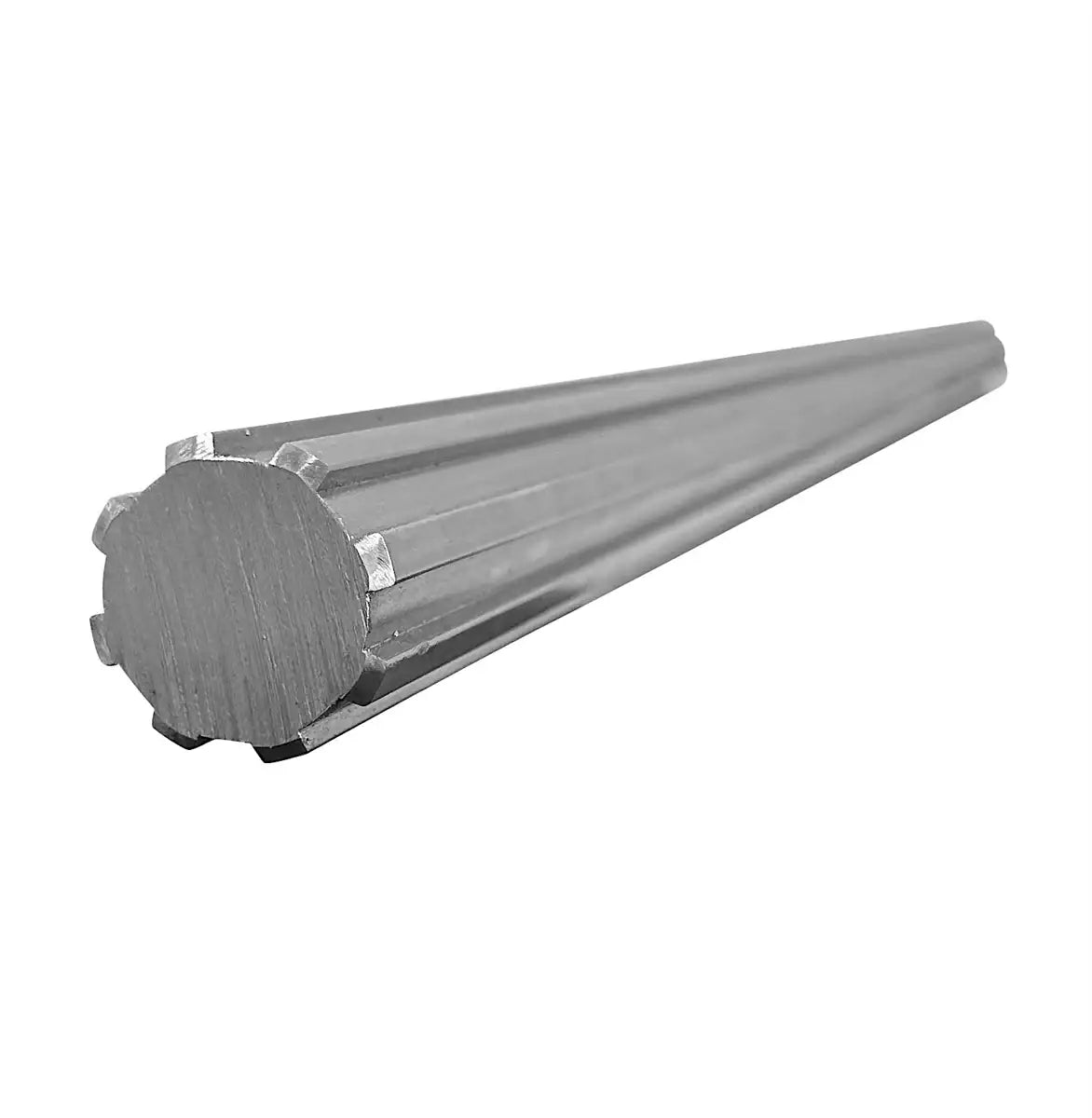

54mm Spline Shaft 8-Splines C45 Material - 1000mm
Note:
Custom Cut to Length Chain Also Available
SKU: 64841400-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
54mm Spline Shaft 8-Splines C45 Material - 1000mm Features
54mm Spline Shaft 8-Splines C45 Material - 1000mm Specifications
Our 54mm spline shaft with 8 splines is expertly crafted from premium C45 steel and comes pre-cut to 1000mm in length. This precision-engineered 54mm spline shaft is built to DIN ISO 14 Standards, ensuring excellent torque transmission and perfect alignment, making it suitable for heavy-duty applications like drive shafts, industrial equipment, and agricultural machinery. We also supply complementary parts such as spline hubs, collars, and clamps. For additional information or a quote on our precision C45 steel 54mm spline shaft with 8 splines in a 1000mm length, contact our customer service team, and we will gladly assist you!
54mm Spline Shaft With 8-Splines Dimensions
- Shaft Diameter (D): 54mm
- Amount of Splines: 8
- Dimension (d): 46mm
- Dimension (b): 9mm
- Length: 1000mm
- Material: C45
- Weight: 15.30 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
- Shaft Diameter (D): 54mm
- Amount of Splines: 8
- Dimension (d): 46mm
- Dimension (b): 9mm
- Length: 1000mm
- Material: C45
- Weight: 15.30 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
