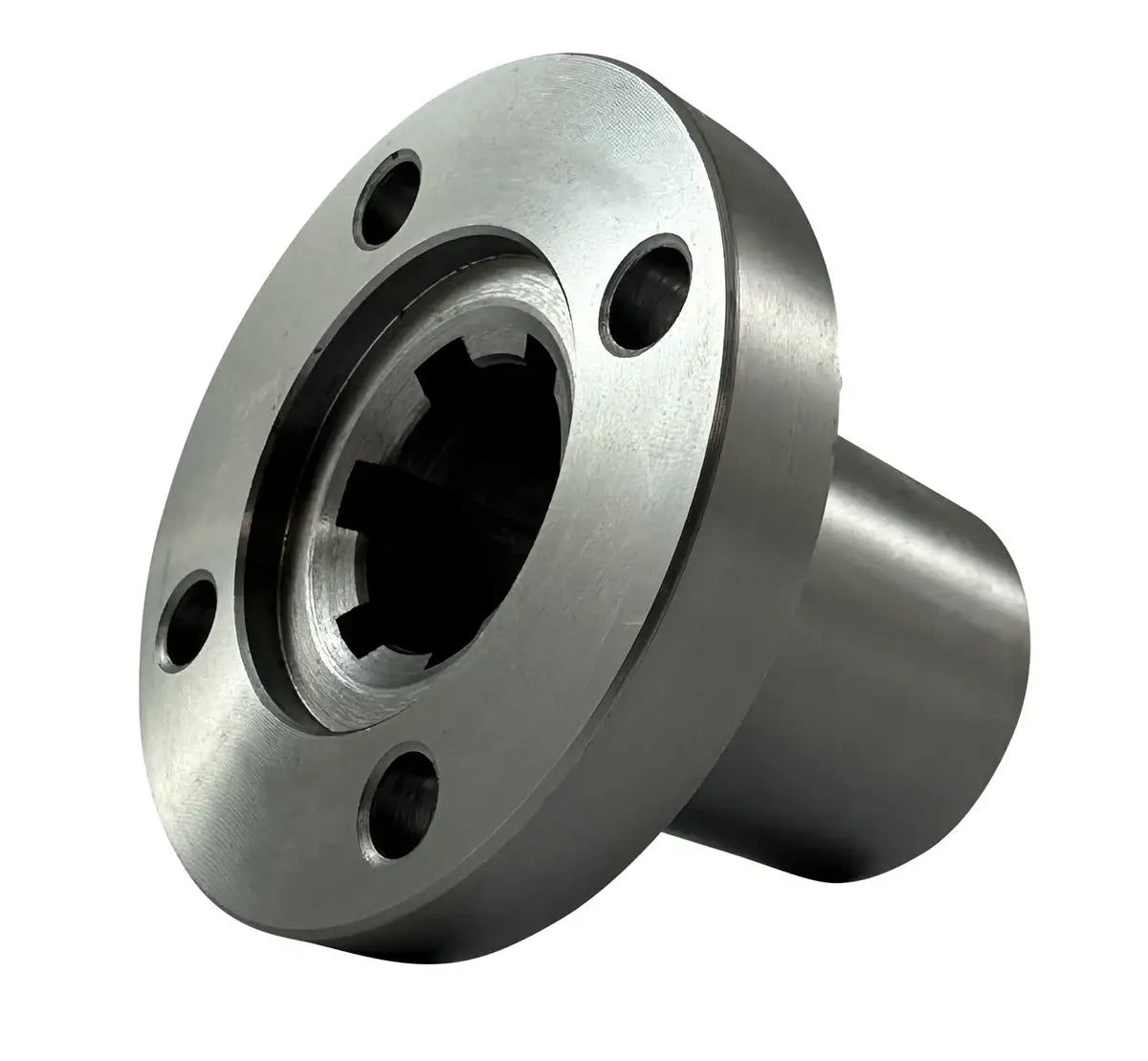

Splined Hub With Flange for 54mm Shaft With 8 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64851400-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 54mm Shaft With 8 Splines - C45 Material Features
Splined Hub With Flange for 54mm Shaft With 8 Splines - C45 Material Specifications
This premium splined hub with a flange is crafted for a 54mm shaft with 8 splines and is constructed from durable C45 steel. It complies with ISO DIN 14 standards, ensuring seamless interchangeability. Flanged splined hubs are crucial for the accurate transmission of torque across various applications. Designed for a 54mm diameter shaft with 8 splines, this hub is straightforward to install and guarantees reliable, long-lasting use. We also offer splined clamp collars with four pre-drilled holes to complement this hub. For more details or to obtain a quote on our high-quality splined hub with flange for a 54mm shaft with 8 splines, please contact our customer service team, who will be pleased to assist you!
54mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 54mm
- Profile Description: KN46x54
- Material: C45
- Part #: 64851400
- Dimension (A): 100mm
- Dimension (B): 80mm
- Dimension (B1): 11.0mm
- Dimension (C): 65mm
- Dimension (F): 65mm
- Dimension (d): 46mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 100mm
- Weight: 1.50 KG
- Made for Shaft Diameter: 54mm
- Profile Description: KN46x54
- Material: C45
- Part #: 64851400
- Dimension (A): 100mm
- Dimension (B): 80mm
- Dimension (B1): 11.0mm
- Dimension (C): 65mm
- Dimension (F): 65mm
- Dimension (d): 46mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 100mm
- Weight: 1.50 KG
