38mm Spline Shaft 8-Splines C45 Material - 1500mm
Note:
Custom Cut to Length Chain Also Available
SKU: 64843800-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
38mm Spline Shaft 8-Splines C45 Material - 1500mm Features
38mm Spline Shaft 8-Splines C45 Material - 1500mm Specifications

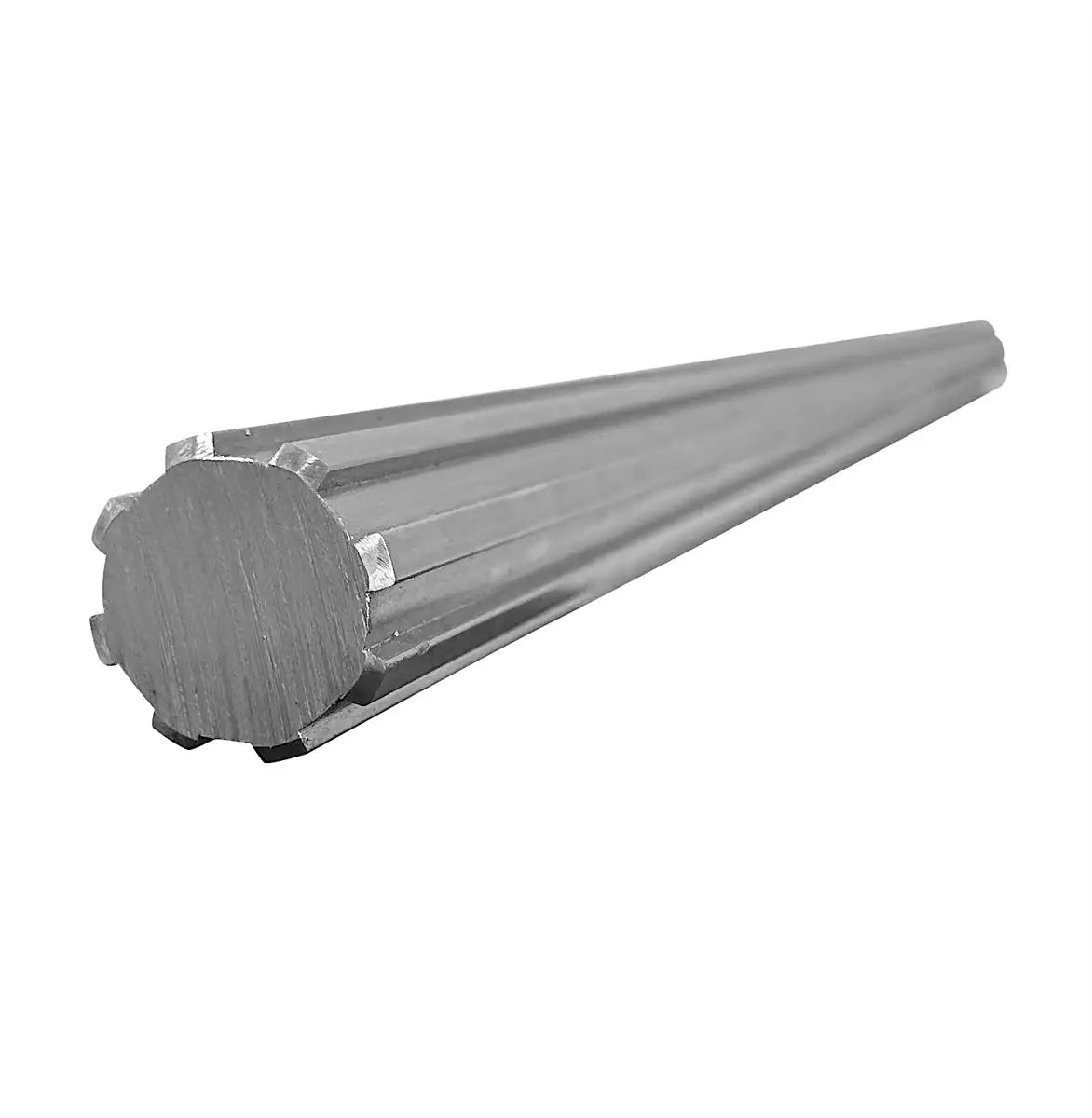

Our 38mm spline shaft with 8 splines is precision-engineered from premium C45 steel and pre-cut to a standard 1500mm length. Designed to DIN ISO 14 Standards, this 38mm shaft ensures reliable torque transmission and precise alignment for applications such as industrial machinery, agricultural systems, and drive shafts. We also stock various accompanying parts like spline hubs, collars, and clamps to make installation straightforward. For additional information or a quote on our precision C45 steel 38mm spline shaft with 8 splines in a 1500mm length, contact our customer service team, and we will gladly assist you!
38mm Spline Shaft With 8-Splines Dimensions
- Shaft Diameter (D): 38mm
- Amount of Splines: 8
- Dimension (d): 32mm
- Dimension (b): 6mm
- Length: 1500mm
- Material: C45
- Weight: 7.433 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
- Shaft Diameter (D): 38mm
- Amount of Splines: 8
- Dimension (d): 32mm
- Dimension (b): 6mm
- Length: 1500mm
- Material: C45
- Weight: 7.433 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
